Berkeley Pumps

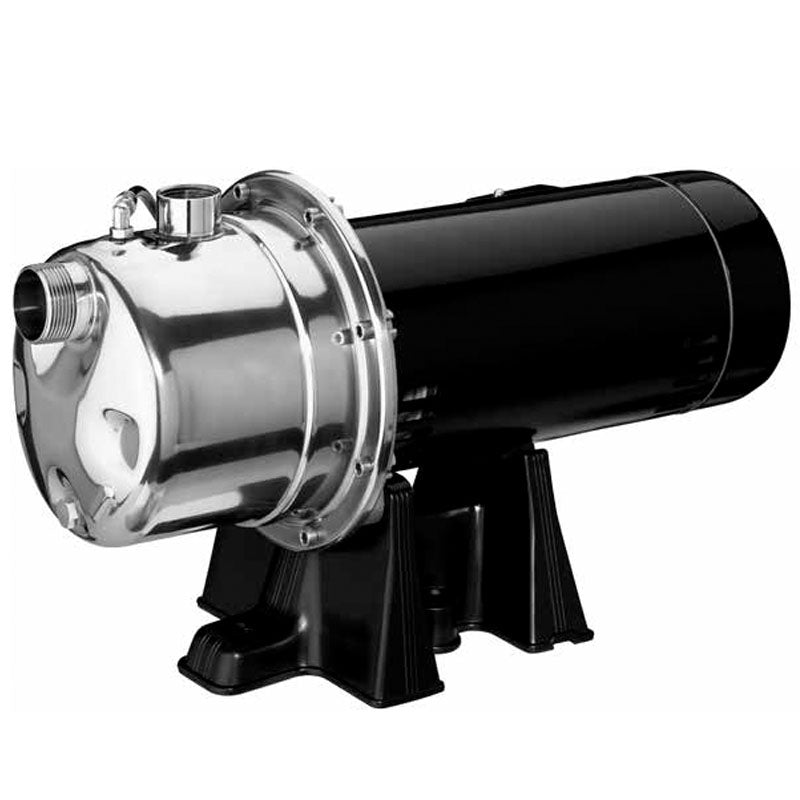

10SJH11C Berkeley Shallow Well Jet Pump (1 HP, 1-1/4" Suction, 1" Discharge, 115/230 Voltage, 1PH, 304 Stainless steel)
10SJH11C Berkeley Shallow Well Jet Pump (1 HP, 1-1/4" Suction, 1" Discharge, 115/230 Voltage, 1PH, 304 Stainless steel)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:10SJH11C
Regular price
$1,077.26 USD
Regular price
$2,100.00 USD
Sale price
$1,077.26 USD
Shipping calculated at checkout.
Quantity
View price in cart
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
Berkeley 10SJH11C, Stainless Steel Self-priming shallow well jet pumps Type, SJH Series, 1 HP, 1-1/4" Suction, 1" Discharge, 115/230 Voltage, 304 Stainless steel Body,
| Applications | |
| SJH models provide excellent performance with good pressure for wells to 25' deep. Self-priming after the priming chamber has been filled with water. Applications: Water systems and sprinkling for homes, farms and cottages. | |
| Features | |
| Corrosion Free: Stainless steel pump body provides maximum resistance to corrosion. | |
| Built-in Jet: High-strength thermoplastic components are corrosion resistant. | |
| Mechanical Shaft Seal: Highly polished carbon-ceramic and stainless steel construction. | |
| Motor Windings: Superior insulation materials protect against excessive moisture and contaminants assure prolonged motor life. | |
| Balanced Rotor: Diecast under high pressures for uniform performance and greater efficiency, dynamically balanced. | |
| Heavy-Duty Ball Bearings: Shielded, permanently lubricated bearings, extensively tested to ensure extended life and smooth, quiet operation. | |
| Pump and Motor Shaft: Stainless steel for maximum corrosion resistance; one-piece threaded shaft for positive impeller drive and alignment. | |
| Dustproof Cover: All electrical components are protected from dirt, dust and insects by a dustproof canopy; ventilating air cannot contaminate vital switching components | |
| Pressure Switch: Quality, fixed differential (20 PSI). | |
Specifications | |
Brand |
Berkeley |
Catalog Number |
10SJH11C |
Type |
Stainless Steel Self-priming shallow well jet pumps |
Series |
SJH |
HP |
1 |
Switch Setting |
40-60 |
Suction |
1-1/4" |
Discharge |
1" |
Voltage |
115/230 |
| Phase | 1 |
Max. Inlet Pressure |
50 PSI |
Body |
304 Stainless steel |
Shaft |
416 grade stainless steel |
Base |
Polypropylene |
Support Documents (pdf) |
