Barnes Pumps

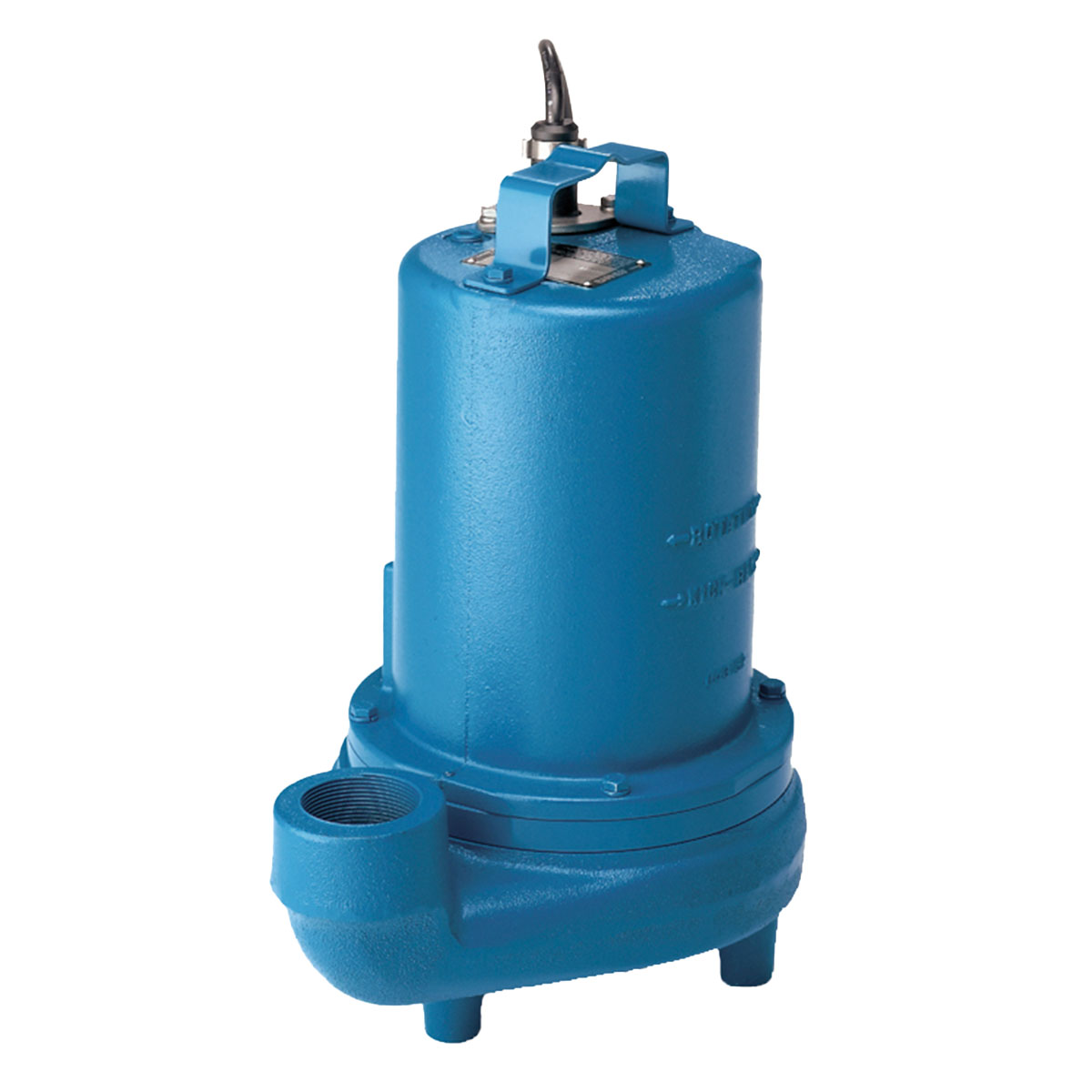

105095 Barnes Submersible Effluent Pump (EH1542HT, 1.5 HP, 480 Volt, 3 Phase, 2" NPT Discharge, 3450 RPM)
105095 Barnes Submersible Effluent Pump (EH1542HT, 1.5 HP, 480 Volt, 3 Phase, 2" NPT Discharge, 3450 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:105095
Regular price
$2,180.67 USD
Regular price
$3,271.00 USD
Sale price
$2,180.67 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
Barnes 105095, Submersible Effluent Pump Series EH-HT Series, EH1542HT Catalog Number, 1.5 HP, 480/3 VOLT/PH, 2" NPT Discharge (In.)
| Applications | |
| PUMP IS DESIGNED FOR HANDLING SEWAGEEFFLUENT IN HIGH TEMPERATURE SEPTICTANK/EFFLUENT APPLICATIONS. | |
| Features |
Specifications | |
Brand |
Barnes |
Part Number |
105095 |
Type |
Effluent Pump |
Series |
Submersible Effluent Pump Series EH-HT |
Catalog Number |
EH1542HT |
HP |
1.5 |
VOLT/PH |
480/3 |
Hz |
60 |
Discharge (In.) |
2" NPT |
Automatic |
No |
RPM (Nom) |
3450 |
NEMA START CODE |
K |
FULL LOAD AMPS |
3.5 |
LOCKED ROTOR AMPS |
14.6 |
CORD SIZE |
14/4 |
CORD TYPE |
SOW |
CORD O.D inch (mm) |
0.57 (14.50) |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) | ||||
