Barnes Pumps

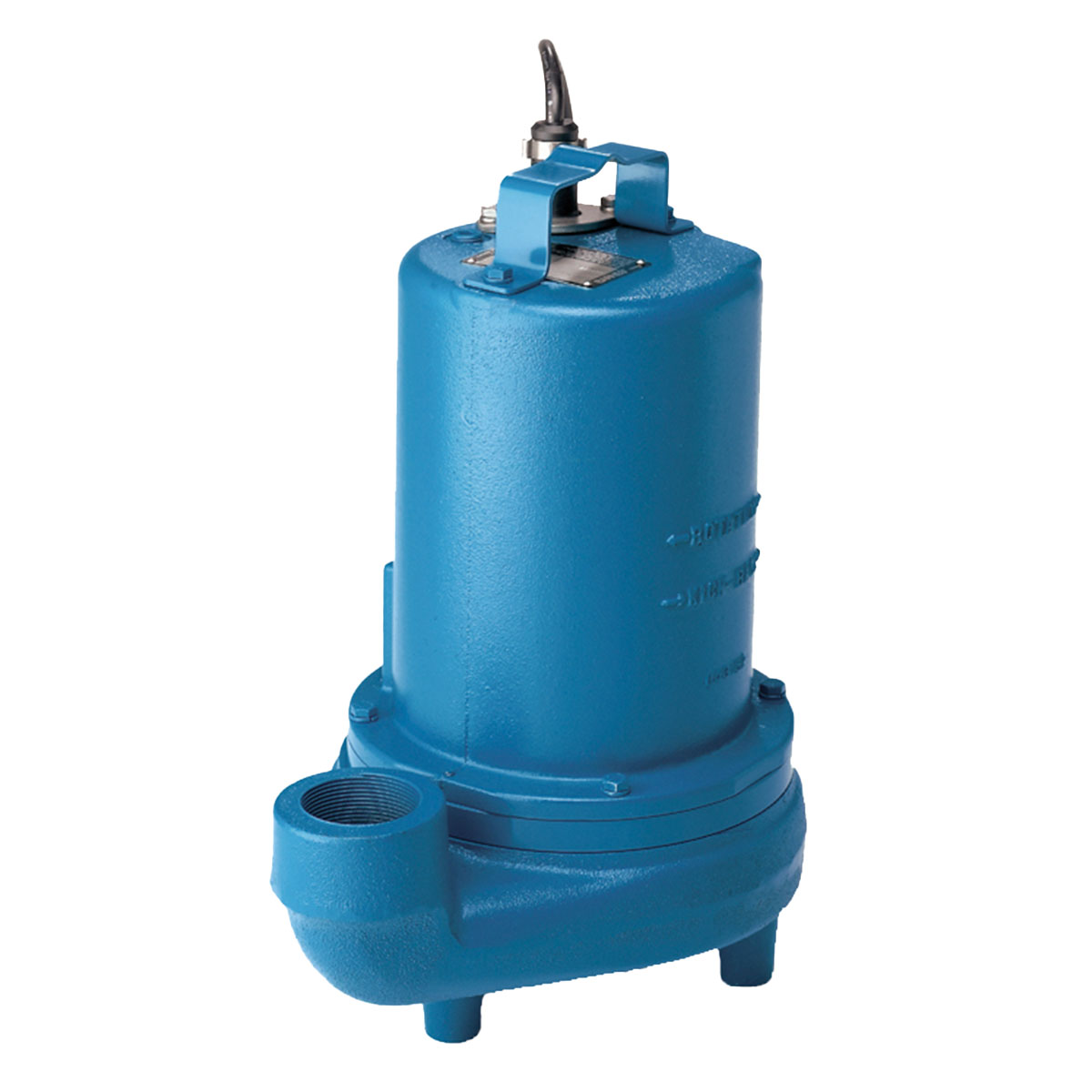

105094 Barnes Submersible Effluent Pump (EH1592HT, 1.5 HP, 200/240/3 VOLT/PH, 2" NPT Discharge, 3450 RPM)
105094 Barnes Submersible Effluent Pump (EH1592HT, 1.5 HP, 200/240/3 VOLT/PH, 2" NPT Discharge, 3450 RPM)
No reviews
SKU:105094
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
Barnes 105094, Submersible Effluent Pump Series EH-HT Series, EH1592HT Catalog Number, 1.5 HP, 200/240/3 VOLT/PH, 2" NPT Discharge (In.)
| Applications | |
| PUMP IS DESIGNED FOR HANDLING SEWAGEEFFLUENT IN HIGH TEMPERATURE SEPTICTANK/EFFLUENT APPLICATIONS. | |
| Features |
Specifications | |
Brand |
Barnes |
Part Number |
105094 |
Type |
Effluent Pump |
Series |
Submersible Effluent Pump Series EH-HT |
Catalog Number |
EH1592HT |
HP |
1.5 |
VOLT/PH |
200/240/3 |
Hz |
60 |
Discharge (In.) |
2" NPT |
Automatic |
No |
RPM (Nom) |
3450 |
NEMA START CODE |
H/F |
FULL LOAD AMPS |
7.8/7.0 |
LOCKED ROTOR AMPS |
29.2/18.7 |
CORD SIZE |
14/4 |
CORD TYPE |
SOW |
CORD O.D inch (mm) |
0.57 (14.50) |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) | ||||
