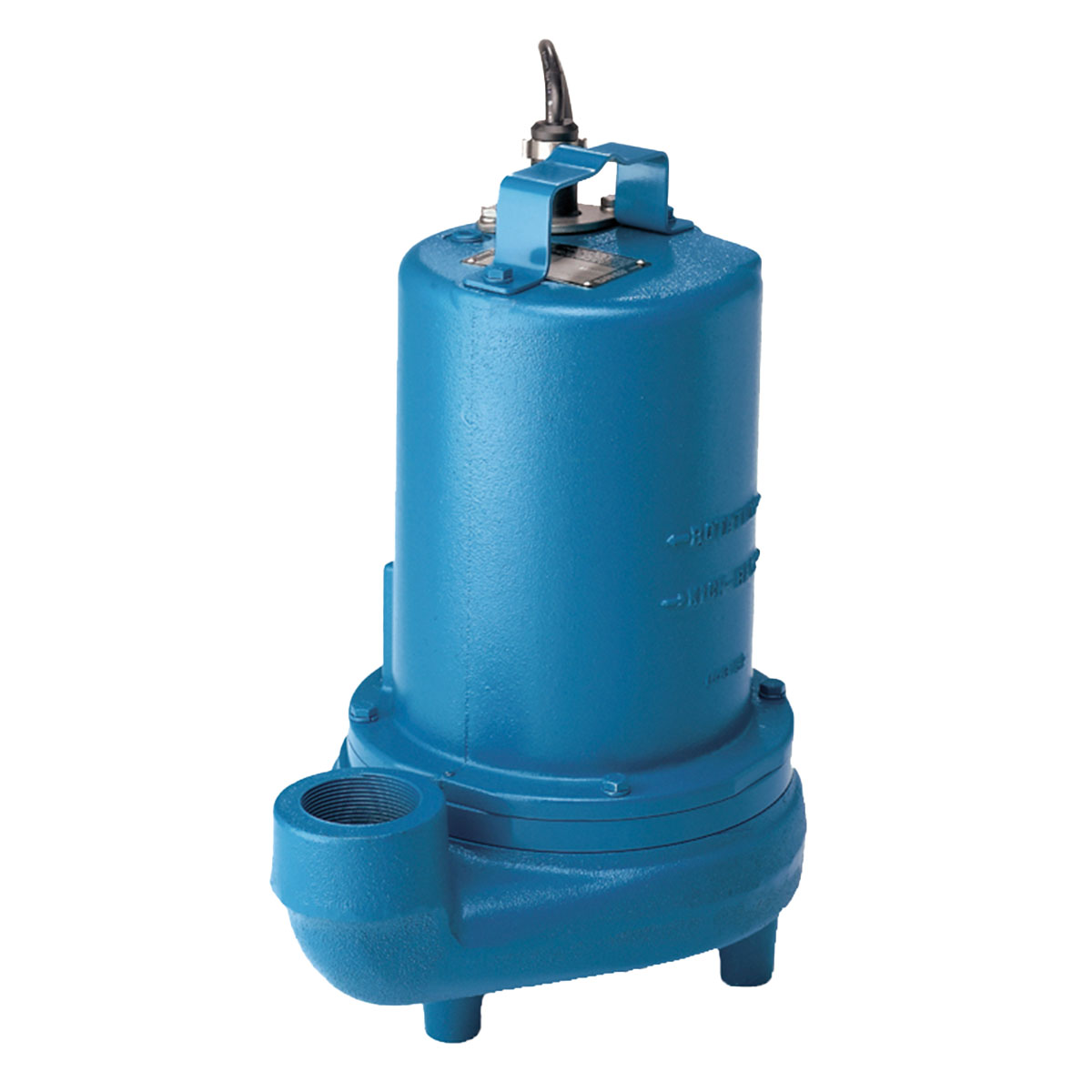

105085 Barnes Submersible Effluent Pump (EH522HT, 0.5 HP, 240 Volt, 1 Phase, 2" NPT Discharge, 3450 RPM)

105085 Barnes Submersible Effluent Pump (EH522HT, 0.5 HP, 240 Volt, 1 Phase, 2" NPT Discharge, 3450 RPM)

👁️ [COUNT] People are currently viewing this product.

105085

$1,734.00 USD
$2,601.00 USD $1,734.00 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

Barnes 105085, Submersible Effluent Pump Series EH-HT Series, EH522HT Catalog Number, 0.5 HP, 240/1 VOLT/PH, 2" NPT Discharge (In.)

Applications
PUMP IS DESIGNED FOR HANDLING SEWAGEEFFLUENT IN HIGH TEMPERATURE SEPTICTANK/EFFLUENT APPLICATIONS.
Features

Specifications

Brand
Barnes
Part Number
105085
Type
Effluent Pump
Series
Submersible Effluent Pump Series EH-HT
Catalog Number
EH522HT
HP
0.5
VOLT/PH
240/1
Hz
60
Discharge (In.)
2" NPT
Automatic
No
RPM (Nom)
3450
NEMA START CODE
K
FULL LOAD AMPS
5.3
LOCKED ROTOR AMPS
18.5
CORD SIZE
14/3
CORD TYPE
SOW
CORD O.D inch (mm)
0.53 (13.50)
Warranty
1 Year
Notes
See Support Documents
