Barnes Pumps

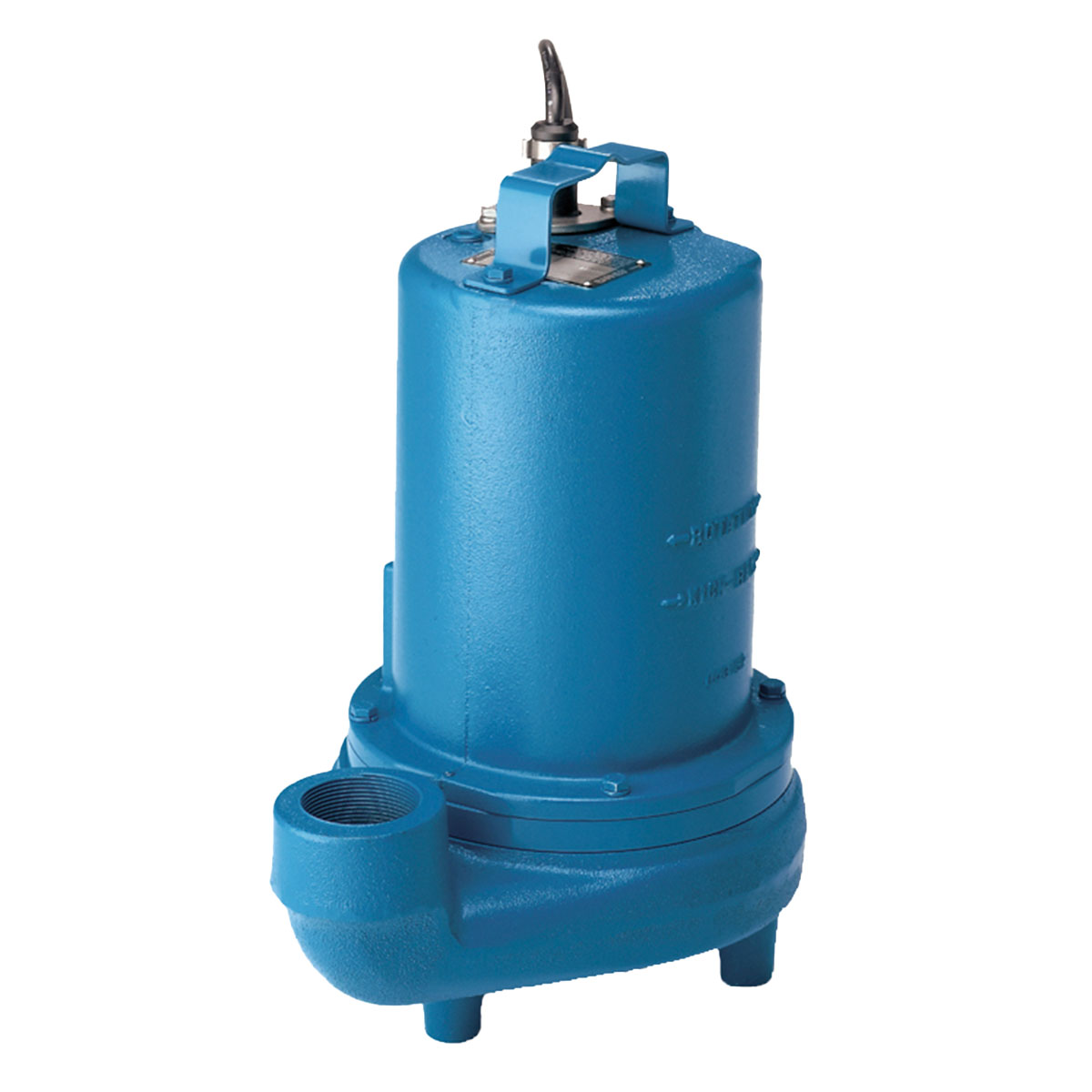

105080 Barnes Submersible Effluent Pump (EH1522DS, 1.5 HP, 240 Volt, 1 Phase, 2" NPT Discharge, 3450 RPM)
105080 Barnes Submersible Effluent Pump (EH1522DS, 1.5 HP, 240 Volt, 1 Phase, 2" NPT Discharge, 3450 RPM)
[COUNT] shoppers are looking at this right now
No reviews
SKU:105080
Regular price
$2,356.00 USD
Regular price
$3,534.00 USD
Sale price
$2,356.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Barnes 105080, Submersible Effluent Pump Series EH-DS Series, EH1522DS Catalog Number, 1.5 HP, 240/1 VOLT/PH, 2" NPT Discharge
| Applications | |
| PUMP IS DESIGNED FOR HANDLING SEWAGE EFFLUENT IN TYPICAL SEPTIC TANK/EFFLUENT APPLICATIONS. | |
| Features | |
| Cast Iron Construction. | |
| Polypropylene Impeller. | |
Specifications | |
Brand |
Barnes |
Part Number |
105080 |
Type |
Effluent Pump |
Series |
Submersible Effluent Pump Series EH-DS |
Catalog Number |
EH1522DS |
HP |
1.5 |
VOLT/PH |
240/1 |
Hz |
60 |
Discharge |
2" NPT |
Automatic |
No |
RPM |
3450 |
NEMA START CODE |
E |
FULL LOAD AMPS |
10.9 |
LOCKED ROTOR AMPS |
30.6 |
CORD SIZE |
14/3 |
CORD TYPE |
SOW |
CORD O.D inch (mm) |
0.53 (13.50) |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
