Barnes Pumps

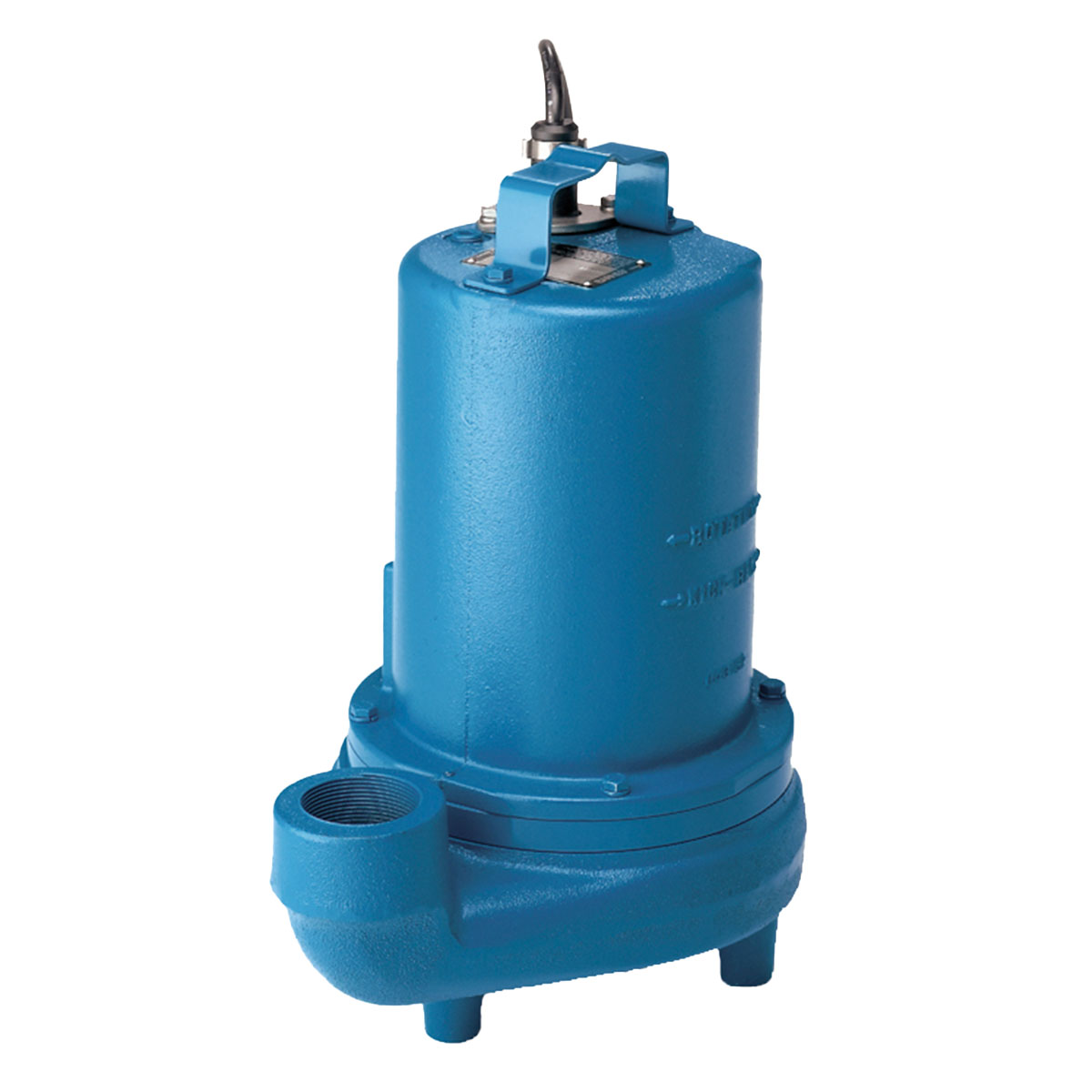

105075 Barnes Submersible Effluent Pump (EH1052DS, 1 HP, 600 Volt, 3 Phase, 2" NPT Discharge, 3450 RPM)

105075 Barnes Submersible Effluent Pump (EH1052DS, 1 HP, 600 Volt, 3 Phase, 2" NPT Discharge, 3450 RPM)

👁️ [COUNT] People are currently viewing this product.

105075

$2,158.00 USD
$3,237.00 USD $2,158.00 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

Barnes 105075, Submersible Effluent Pump Series EH-DS Series, EH1052DS Catalog Number, 1 HP, 600/3 VOLT/PH, 2" NPT Discharge
Applications
PUMP IS DESIGNED FOR HANDLING SEWAGE EFFLUENT IN TYPICAL SEPTIC TANK/EFFLUENT APPLICATIONS.
Features
Cast Iron Construction.
Polypropylene Impeller.

Specifications

Brand
Barnes
Part Number
105075
Type
Effluent Pump
Series
Submersible Effluent Pump Series EH-DS
Catalog Number
EH1052DS
HP
1
VOLT/PH
600/3
Hz
60
Discharge
2" NPT
Automatic
No
RPM
3450
NEMA START CODE
L
FULL LOAD AMPS
2.8
LOCKED ROTOR AMPS
8.7
CORD SIZE
14/4
CORD TYPE
SOW
CORD O.D inch (mm)
0.57 (14.50)
Warranty
1 Year
Notes
See Support Documents

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • ALL IMAGES SHOWN ON OUR WEBSITE ARE FOR ILLUSTRATION PURPOSE ONLY AND MAY NOT BE AN EXACT REPRESENTATION OF THE PRODUCT. ACTUAL PRODUCTS MAY VARY FROM THE IMAGES SHOWN.
