Barnes Pumps

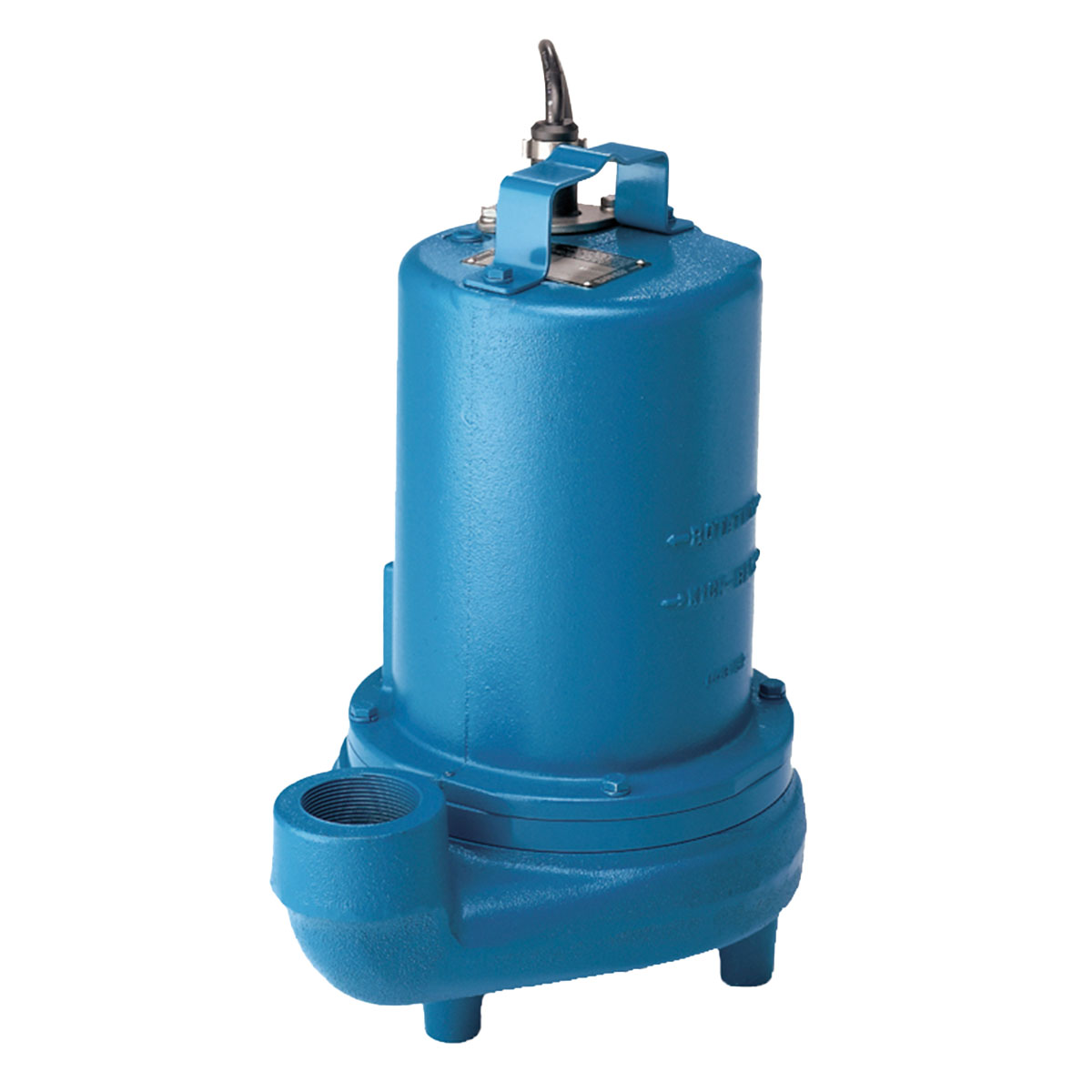

105067 Barnes Submersible Effluent Pump (EH552DS, 0.5 HP, 600/3 VOLT/PH, 2" NPT Discharge, 3450 RPM)
105067 Barnes Submersible Effluent Pump (EH552DS, 0.5 HP, 600/3 VOLT/PH, 2" NPT Discharge, 3450 RPM)
SKU:105067
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
Barnes 105067, Submersible Effluent Pump Series EH-DS Series, EH552DS Catalog Number, 0.5 HP, 600/3 VOLT/PH, 2" NPT Discharge
| Applications | |
| PUMP IS DESIGNED FOR HANDLING SEWAGE EFFLUENT IN TYPICAL SEPTIC TANK/EFFLUENT APPLICATIONS. | |
| Features | |
| Cast Iron Construction. | |
| Polypropylene Impeller. | |
Specifications | |
Brand |
Barnes |
Part Number |
105067 |
Type |
Effluent Pump |
Series |
Submersible Effluent Pump Series EH-DS |
Catalog Number |
EH552DS |
HP |
0.5 |
VOLT/PH |
600/3 |
Hz |
60 |
Discharge |
2" NPT |
Automatic |
No |
RPM |
3450 |
NEMA START CODE |
T |
FULL LOAD AMPS |
1.7 |
LOCKED ROTOR AMPS |
8.7 |
CORD SIZE |
14/4 |
CORD TYPE |
SOW |
CORD O.D inch (mm) |
0.57 (14.50) |
Warranty |
1 Year |
Notes |
See Support Documents |
