Barnes Pumps

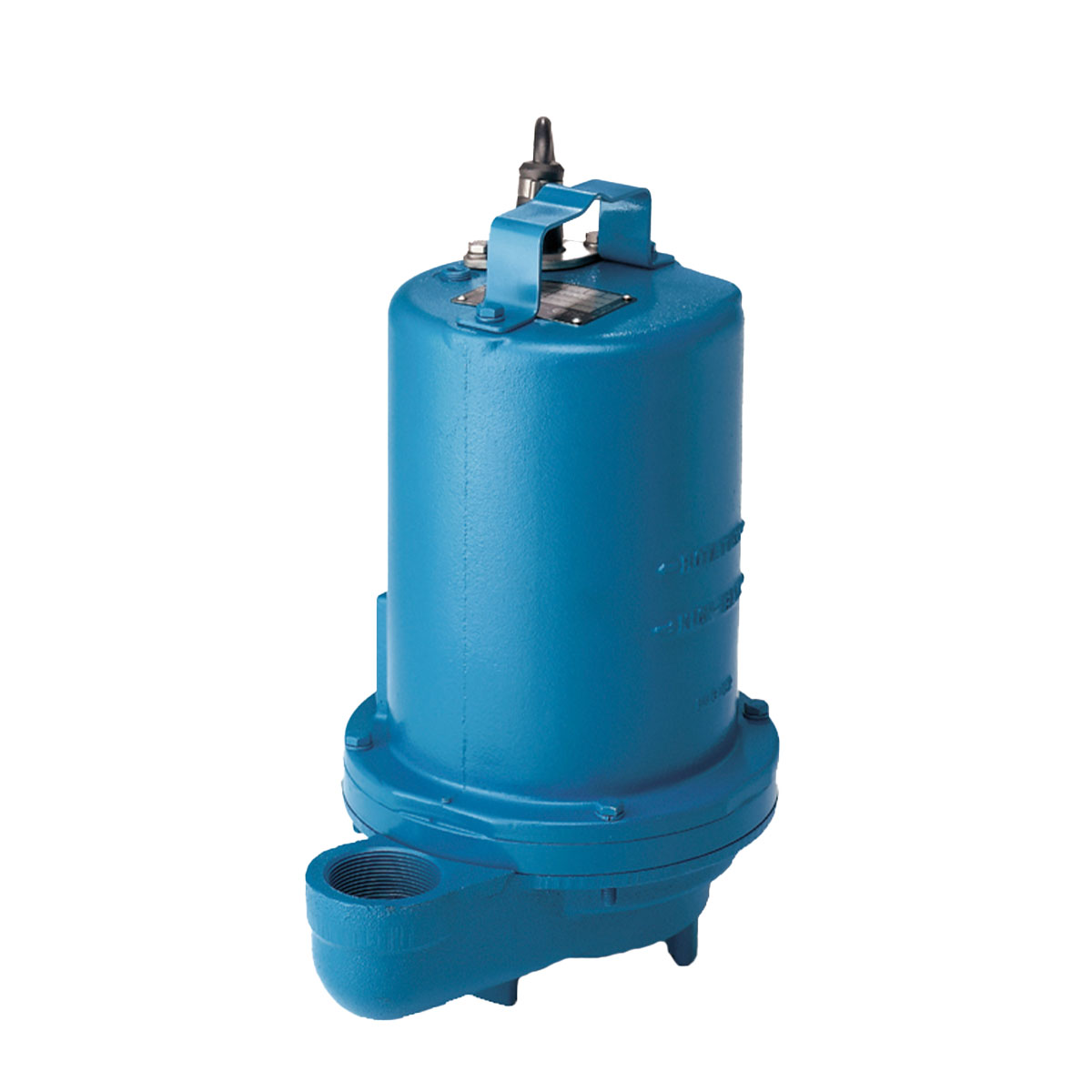

105051 Barnes Submersible Effluent Pump (STEP1092DS, 1 HP, 200/240 Volt, 3 Phase, V/PH, 2" NPT Discharge, 3450 RPM)

105051 Barnes Submersible Effluent Pump (STEP1092DS, 1 HP, 200/240 Volt, 3 Phase, V/PH, 2" NPT Discharge, 3450 RPM)

👁️ [COUNT] People are currently viewing this product.

105051

$2,245.33 USD
$3,368.00 USD $2,245.33 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

Barnes Pumps STEP1092DS, Submersible Effluent Pump Series STEP-DS Series, 1 HP, 200/240/3 VOLT/PH, 2" NPT Discharge (In.)
Applications
PUMP IS DESIGNED FOR HANDLING SEWAGE EFFLUENT IN TYPICAL SEPTIC TANK/EFFLUENT APPLICATIONS.
Features
Cast Iron Construction.
Polypropylene Impeller.

Specifications

Brand
Barnes
Part Number
105051
Type
Effluent Pump
Series
Submersible Effluent Pump Series STEP-DS
Catalog Number
STEP1092DS
HP
1
VOLT/PH
200/240/3
Hz
60
Discharge (In.)
2" NPT
Automatic
No
RPM (Nom)
3450
NEMA START CODE
H/J
FULL LOAD AMPS
5.9/5.6
LOCKED ROTOR AMPS
19.9/18.4
CORD SIZE
14/4
CORD TYPE
SOW
CORD O.D inch (mm)
0.57 (14.50)
Warranty
1 Year
Notes
See Support Documents

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • ALL IMAGES SHOWN ON OUR WEBSITE ARE FOR ILLUSTRATION PURPOSE ONLY AND MAY NOT BE AN EXACT REPRESENTATION OF THE PRODUCT. ACTUAL PRODUCTS MAY VARY FROM THE IMAGES SHOWN.
