Barnes Pumps

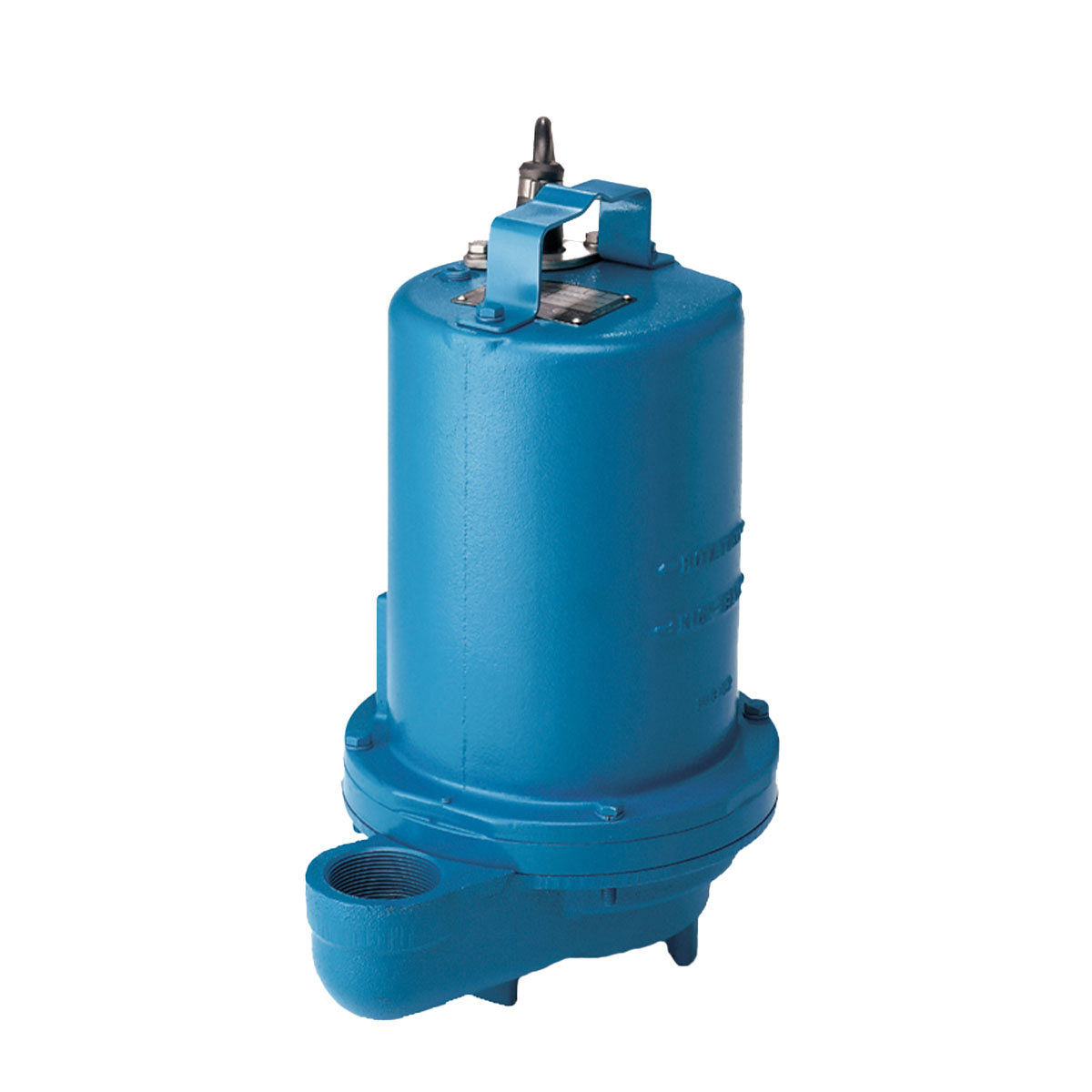

105050 Barnes Submersible Effluent Pump (STEP1022DS, 1 HP, 240 Volt, 1 Phase, 2" NPT Discharge, 3450 RPM)
105050 Barnes Submersible Effluent Pump (STEP1022DS, 1 HP, 240 Volt, 1 Phase, 2" NPT Discharge, 3450 RPM)
[COUNT] shoppers are looking at this right now
SKU:105050
Regular price
$2,125.33 USD
Regular price
$3,188.00 USD
Sale price
$2,125.33 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Barnes Pumps STEP1022DS, Submersible Effluent Pump Series STEP-DS Series, 1 HP, 240/1 VOLT/PH, 2" NPT Discharge (In.)
| Applications | |
| PUMP IS DESIGNED FOR HANDLING SEWAGE EFFLUENT IN TYPICAL SEPTIC TANK/EFFLUENT APPLICATIONS. | |
| Features | |
| Cast Iron Construction. | |
| Polypropylene Impeller. | |
Specifications | |
Brand |
Barnes |
Part Number |
105050 |
Type |
Effluent Pump |
Series |
Submersible Effluent Pump Series STEP-DS |
Catalog Number |
STEP1022DS |
HP |
1 |
VOLT/PH |
240/1 |
Hz |
60 |
Discharge (In.) |
2" NPT |
Automatic |
No |
RPM (Nom) |
3450 |
NEMA START CODE |
F |
FULL LOAD AMPS |
8.3 |
LOCKED ROTOR AMPS |
21.8 |
CORD SIZE |
14/3 |
CORD TYPE |
SOW |
CORD O.D inch (mm) |
0.53 (13.50) |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
