Barnes Pumps

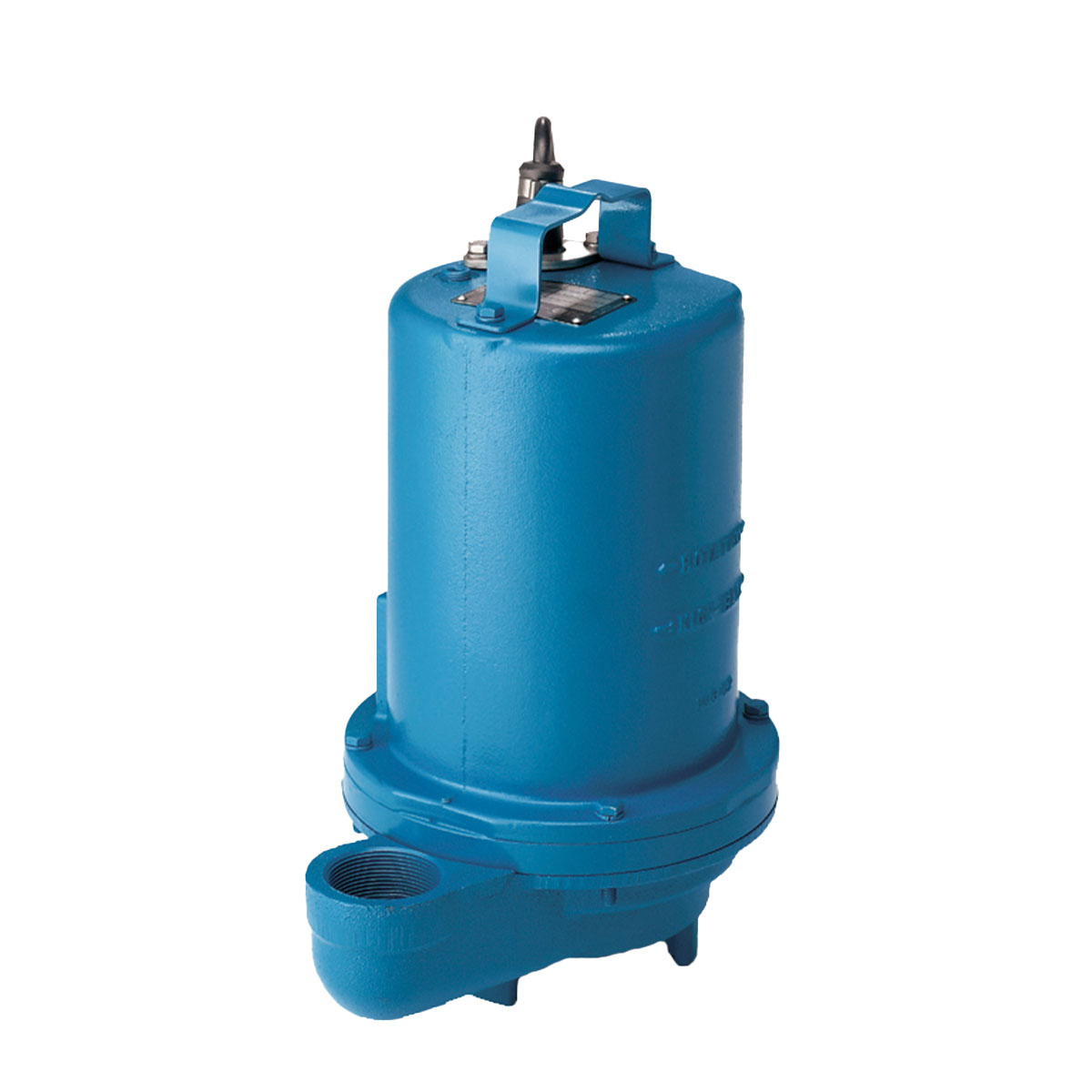

105045 Barnes Submersible Effluent Pump (STEP512SS, 0.5 HP, 120 Volt, 1 Phase, 2" NPT Discharge, 3450 RPM)
105045 Barnes Submersible Effluent Pump (STEP512SS, 0.5 HP, 120 Volt, 1 Phase, 2" NPT Discharge, 3450 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:105045
Regular price
$1,506.00 USD
Regular price
$2,259.00 USD
Sale price
$1,506.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
Barnes Pumps STEP512SS, Submersible Effluent Pumps Series STEP-SS Series, 105045 PART NO, 0.5 HP, 120/1 VOLT/PH, 2" NPT Discharge (In.)
| Applications | |
| PUMP IS DESIGNED FOR HANDLING SEWAGE EFFLUENT IN TYPICAL SEPTIC TANK/EFFLUENT APPLICATIONS. | |
| Features | |
| Cast Iron Construction. | |
| Polypropylene Impeller. | |
Specifications | |
Brand |
Barnes |
Part Number |
105045 |
Type |
Effluent Pump |
Series |
Submersible Effluent Pumps Series STEP-SS |
Catalog Number |
STEP512SS |
HP |
0.5 |
VOLT/PH |
120/1 |
Hz |
60 |
Discharge (In.) |
2" NPT |
Automatic |
No |
RPM (Nom) |
3450 |
NEMA START CODE |
G |
FULL LOAD AMPS |
11.9 |
LOCKED ROTOR AMPS |
24.6 |
CORD SIZE |
14/3 |
CORD TYPE |
SJTOW |
CORD O.D inch (mm) |
0.37 (9.55) |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
