Barnes Pumps

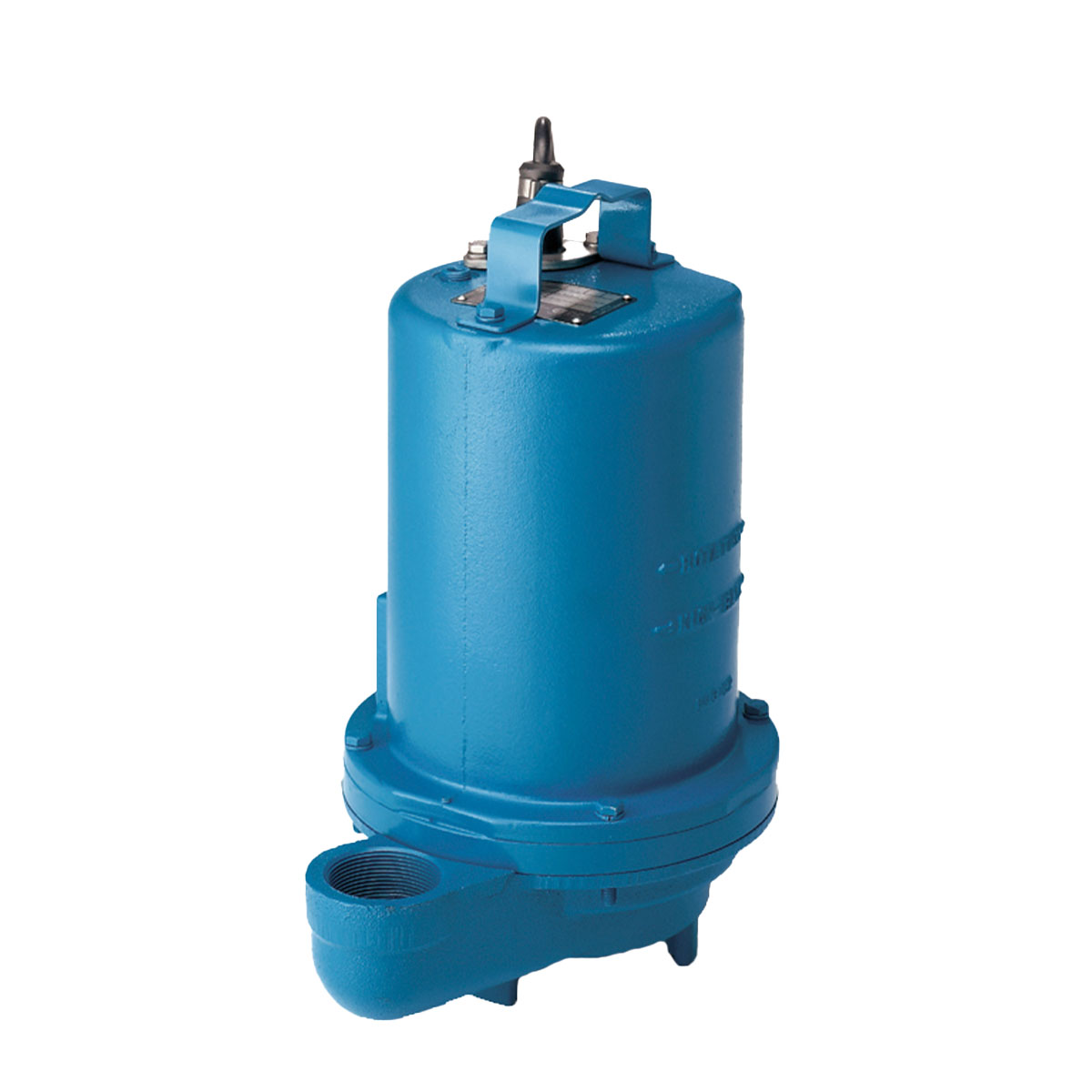

105044 Barnes Submersible Effluent Pump (STEP552DS, 0.5 HP, 600 Volt, 3 Phase, 2" NPT Discharge, 3450 RPM)
105044 Barnes Submersible Effluent Pump (STEP552DS, 0.5 HP, 600 Volt, 3 Phase, 2" NPT Discharge, 3450 RPM)
[COUNT] shoppers are looking at this right now
No reviews
SKU:105044
Regular price
$1,980.67 USD
Regular price
$2,971.00 USD
Sale price
$1,980.67 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Barnes Pumps STEP552DS, Submersible Effluent Pump Series STEP-DS Series, 0.5 HP, 600/3 VOLT/PH, 2" NPT Discharge (In.)
| Applications | |
| PUMP IS DESIGNED FOR HANDLING SEWAGE EFFLUENT IN TYPICAL SEPTIC TANK/EFFLUENT APPLICATIONS. | |
| Features | |
| Cast Iron Construction. | |
| Polypropylene Impeller. | |
Specifications | |
Brand |
Barnes |
Catalog Number |
105044 |
Type |
Effluent Pump |
Series |
Submersible Effluent Pump Series STEP-DS |
PART NO |
STEP552DS |
HP |
0.5 |
VOLT/PH |
600/3 |
Hz |
60 |
Discharge (In.) |
2" NPT |
Automatic |
No |
RPM (Nom) |
3450 |
NEMA START CODE |
T |
FULL LOAD AMPS |
1.8 |
LOCKED ROTOR AMPS |
8.7 |
CORD SIZE |
14/4 |
CORD TYPE |
SOW |
CORD O.D inch (mm) |
0.57 (14.50) |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
