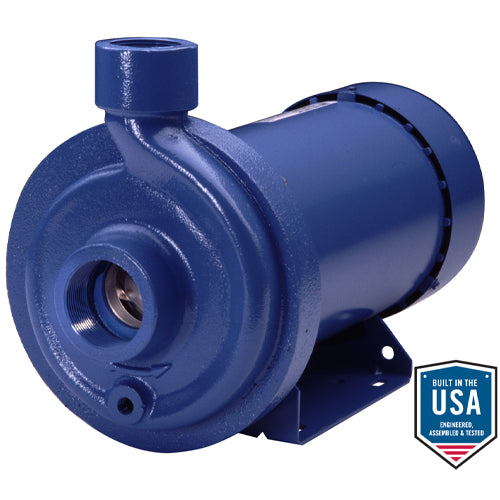

• 100MC1G5B0 Goulds Pumps Cast Iron Centrifugal Pumps (2 HP, 3 Phase, 208/230/460 Voltage, TEPE Enclosure, 5.75" Impeller Size, Cast Iron Construction)
1 1

Goulds Pumps

100MC1G5B0 Goulds Pumps Cast Iron Centrifugal Pumps (2 HP, 3 Phase, 208/230/460 Voltage, TEPE Enclosure, 5.75" Impeller Size, Cast Iron Construction)

100MC1G5B0 Goulds Pumps Cast Iron Centrifugal Pumps (2 HP, 3 Phase, 208/230/460 Voltage, TEPE Enclosure, 5.75" Impeller Size, Cast Iron Construction)

100MC1G5B0

$1,198.89 USD
$2,076.00 USD $1,198.89 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Goulds Pumps 100MC1G5B0, End Suction Centrifugal Pumps Type, 2 HP, 3 Phase, 208/230/460 Voltage, TEPE Enclosure, 5.75" Impeller Size, Cast Iron Construction,

Applications
The MCC is a close coupled, end suction, centrifugal pump for general liquid transfer service, booster service and many other applications. The liquid pump end has a cast iron construction with NPT threaded, centerline connections, easily accessible vent, prime and drain connections.
Features
AISI 316L stainless steel impeller and seal housing for corrosion resistance, and improved strength and ductility
High efficiency enclosed impeller in 316L stainless steel maintains maximum efficiencies over the life of the pump without adjustment
Cast iron casing for strength and durability
Nine position casing rotation for easy piping
Standard John Crane mechanical seal with carbon ceramic faces, BUNA elastomers, and stainless metal parts
Rugged ball bearing design for continuous duty under all operating conditions
NEMA standard motor

Specifications

Brand
Goulds Pumps
Catalog Number
100MC1G5B0
Type
End Suction Centrifugal Pumps
Series
MCC
HP
2
Phase
3
Hz
60
Voltage
208/230/460
Enclosure
TEPE
Impeller Size
5.75"
Construction
Cast Iron
RPM
3500
Notes
See support documents
