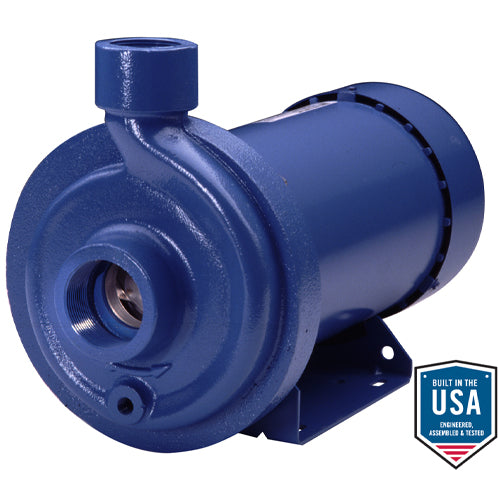

• 100MC1C1E2 Goulds Pumps Cast Iron Centrifugal Pumps (1/2 HP, 1 Phase, 115/230 Voltage, ODP Enclosure, 4.44" Impeller Size, Cast Iron Construction)
1 1

Goulds Pumps

100MC1C1E2 Goulds Cast Iron Centrifugal Pumps (1/2 HP, 1 Phase, 115/230 Voltage, ODP Enclosure, 4.44" Impeller Size, Cast Iron Construction)

100MC1C1E2 Goulds Cast Iron Centrifugal Pumps (1/2 HP, 1 Phase, 115/230 Voltage, ODP Enclosure, 4.44" Impeller Size, Cast Iron Construction)

[COUNT] shoppers are looking at this right now

100MC1C1E2

$0.00 USD
$0.00 USD $0.00 USD
Sale Sold out
Shipping calculated at checkout.

View Price in Cart
Goulds Pumps 100MC1C1E2, End Suction Centrifugal Pumps Type, 1/2 HP, 1 Phase, 115/230 Voltage, ODP Enclosure, 4.44" Impeller Size, Cast Iron Construction,

Applications
The MCC is a close coupled, end suction, centrifugal pump for general liquid transfer service, booster service and many other applications. The liquid pump end has a cast iron construction with NPT threaded, centerline connections, easily accessible vent, prime and drain connections.
Features
AISI 316L stainless steel impeller and seal housing for corrosion resistance, and improved strength and ductility
High efficiency enclosed impeller in 316L stainless steel maintains maximum efficiencies over the life of the pump without adjustment
Cast iron casing for strength and durability
Nine position casing rotation for easy piping
Standard John Crane mechanical seal with carbon ceramic faces, BUNA elastomers, and stainless metal parts
Rugged ball bearing design for continuous duty under all operating conditions
NEMA standard motor

Specifications

Brand
Goulds Pumps
Catalog Number
100MC1C1E2
Type
End Suction Centrifugal Pumps
Series
MCC
HP
1/2
Phase
1
Hz
60
Voltage
115/230
Enclosure
ODP
Impeller Size
4.44"
Construction
Cast Iron
RPM
3500
Notes
See support documents
