Barnes Pumps

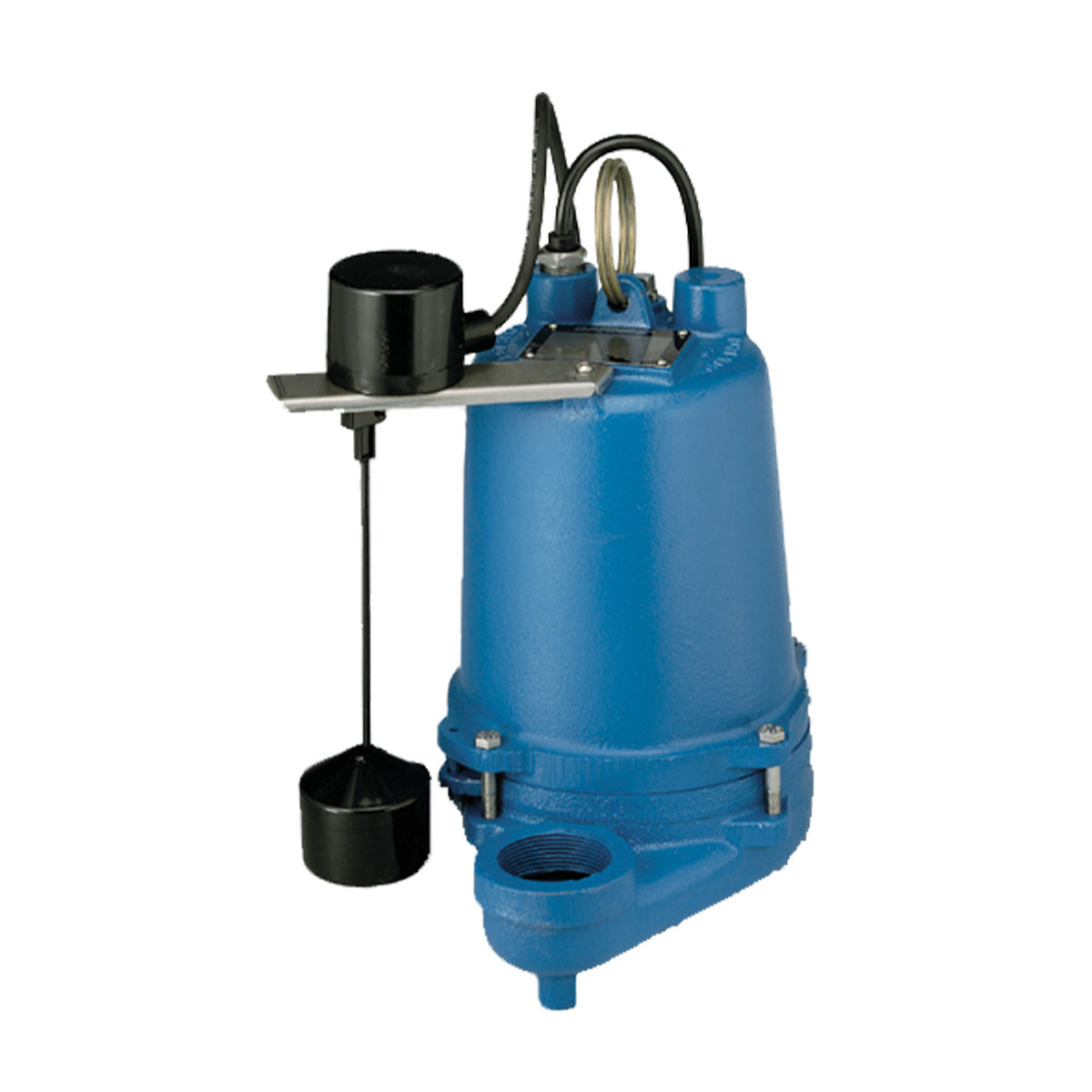

100835 Barnes Sump Pump (1/3 HP, 115 Voltage, Single Phase, 60 HZ, 3/4 " Max Solids)
100835 Barnes Sump Pump (1/3 HP, 115 Voltage, Single Phase, 60 HZ, 3/4 " Max Solids)
No reviews
SKU:100835
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
Barnes 100835, BP314VFBR Series, 1/3 HP, 115 Voltage, Single Phase, 60 HZ, 1750 RPM, 3/4 " Max Solids
| Applications | |
| Best solution for the following operations: Residential Sump and Light Industrial | |
| Features | |
| Permanent split capacitor motor for reliable, high performance, longer motor life, great starting torque, and lower amp draw | |
| Stainless steel hardware and shaft | |
| Cast iron vortex impeller (EP), Opem Polypropylene (BP) | |
| 1/2" Spherical solids capacity | |
| Automatic thermal overload protection | |
| Upper and lower ball bearings | |
Specifications | |
Brand |
Barnes |
Catalog Number |
100835 |
Type |
Effluent Pump |
Series |
BP314VFBR |
HP |
1/3 |
Voltage |
115 |
Phase |
Single |
HZ |
60 |
RPM |
1750 |
Full Load Amps |
8 |
Max Solids (Inches) |
3/4 |
Discharge |
2 NPT, Female, Vertical |
Casing |
Cast Iron |
Impeller |
Bronze |
Shaft |
Stainless Steel |
Stages |
1 |
GPM |
35 |
Max Flow |
65 |
Max Head |
30 |
Cord Type |
SJTOW |
Cord Size |
14/3 |
NEMA Start Code |
A |
