• 100834 Barnes Submersible Sump Pump (BP314VF, 1/3 HP, 115 Voltage, Single Phase, 60 HZ, 1750 RPM, 3/4" Max Solids, 2" NPT Vertical Discharge, Vertical Float, 15' Cord) - KG Power Systems
1 1

Barnes Pumps

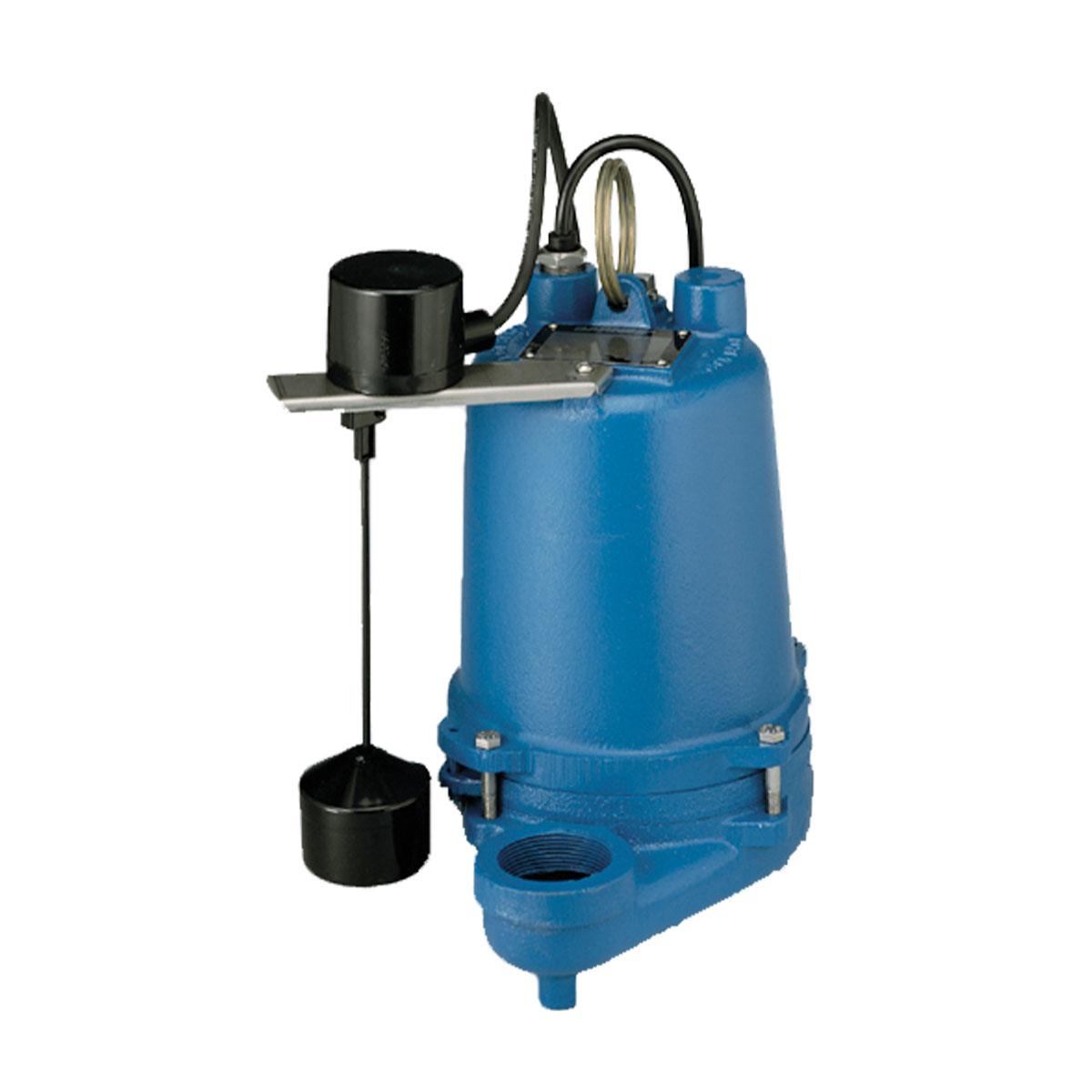

100834 Barnes Submersible Sump Pump (BP314VF, 1/3 HP, 115 Voltage, Single Phase, 60 HZ, 1750 RPM, 3/4" Max Solids, 2" NPT Vertical Discharge, Vertical Float, 15' Cord)

100834 Barnes Submersible Sump Pump (BP314VF, 1/3 HP, 115 Voltage, Single Phase, 60 HZ, 1750 RPM, 3/4" Max Solids, 2" NPT Vertical Discharge, Vertical Float, 15' Cord)

[COUNT] shoppers are looking at this right now

100834

$0.00 USD
$0.00 USD $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Barnes 100834, BP314VF Series, 1/3 HP, 115 Voltage, Single Phase, 60 HZ, 1750 RPM, 3/4 " Max Solids

Applications
Best solution for the following operations: Residential Sump and Light Industrial
Features
Permanent split capacitor motor for reliable, high performance, longer motor life, great starting torque, and lower amp draw
Stainless steel hardware and shaft
Cast iron vortex impeller (EP), Opem Polypropylene (BP)
1/2" Spherical solids capacity
Automatic thermal overload protection
Upper and lower ball bearings

Specifications

Brand
Barnes
Catalog Number
100834
Type
Effluent Pump
Series
BP314VF
HP
1/3
Voltage
115
Phase
Single
HZ
60
RPM
1750
Full Load Amps
8
Max Solids (Inches)
3/4
Discharge
2 NPT, Female, Vertical
Casing
Cast Iron
Impeller
Bronze
Shaft
Stainless Steel
Stages
1
GPM
35
Max Flow
65
Max Head
30
Cord Type
SJTOW
Cord Size
14/3
NEMA Start Code
A

Support Documents (pdf)
