WEG

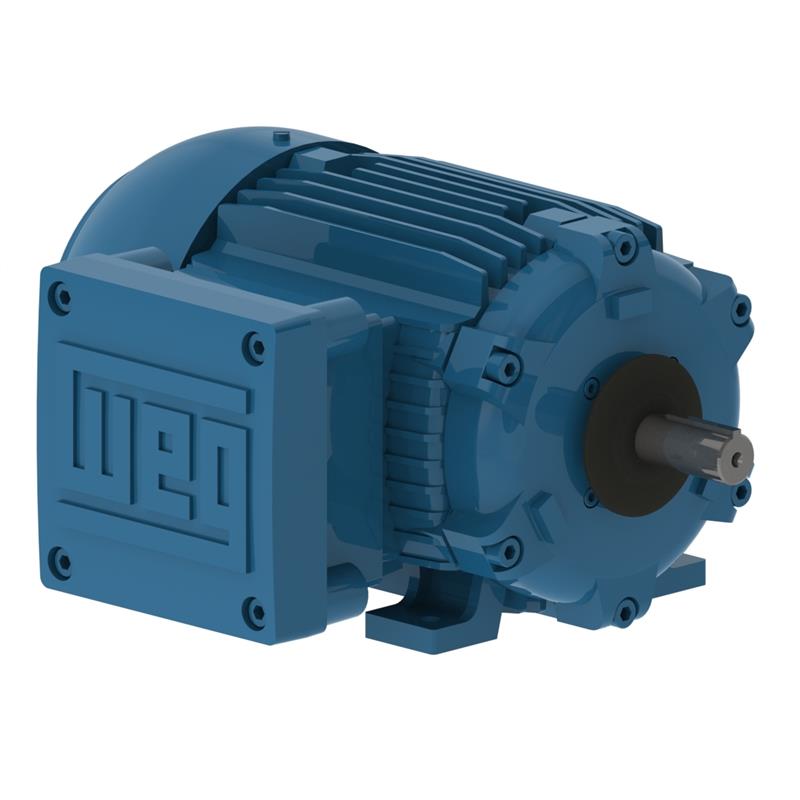

10036XT3G405TS WEG Explosion Proof Motor (100 HP, 3600 RPM, 3 Phase, 404/5TS Frame, 460 Voltage, Explosion Proof)
10036XT3G405TS WEG Explosion Proof Motor (100 HP, 3600 RPM, 3 Phase, 404/5TS Frame, 460 Voltage, Explosion Proof)
[COUNT] shoppers are looking at this right now
No reviews
SKU:10036XT3G405TS
Regular price
$11,569.11 USD
Regular price
$12,999.00 USD
Sale price
$11,569.11 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
WEG 10036XT3G405TS, Series, 100 HP, 75 KW, 3600 RPM, 3 Phase, 404/5TS Frame, 460 Voltage, Explosion Proof
| Applications | |
| WEG Explosion Proof motors are suitable for applications requiring UL or CSA certification for hazardous locations. | |
| Features | |
| Class F insulation (Impregnation Resin and Magnet wire are class H) | |
| F1 Mounted (Cast Iron frames are F2 convertible) | |
| Stainless Steel Nameplate - Laser etched with high contrast background | |
| All frames with regreasable ball bearings (Frames 364T and up) | |
| CSA Approved - File LR50962 | |
| UL Listed - File E87848 | |
Specifications | |
Brand |
WEG |
Catalog Number |
10036XT3G405TS |
Type |
Explosion Proof |
HP |
100 |
KW |
75 |
RPM |
3600 |
Phase |
3 |
Service Factor |
1.15 |
Frame |
404/5TS |
Voltage |
460 |
Enclosure |
Explosion Proof |
Mount |
Foot Mount |
Full Load Amps |
110 |
Warranty |
1 Year |
Support Documents (pdf) | ||||
Share
- Questions about this product? Contact our team!
- This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
- All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
