WEG

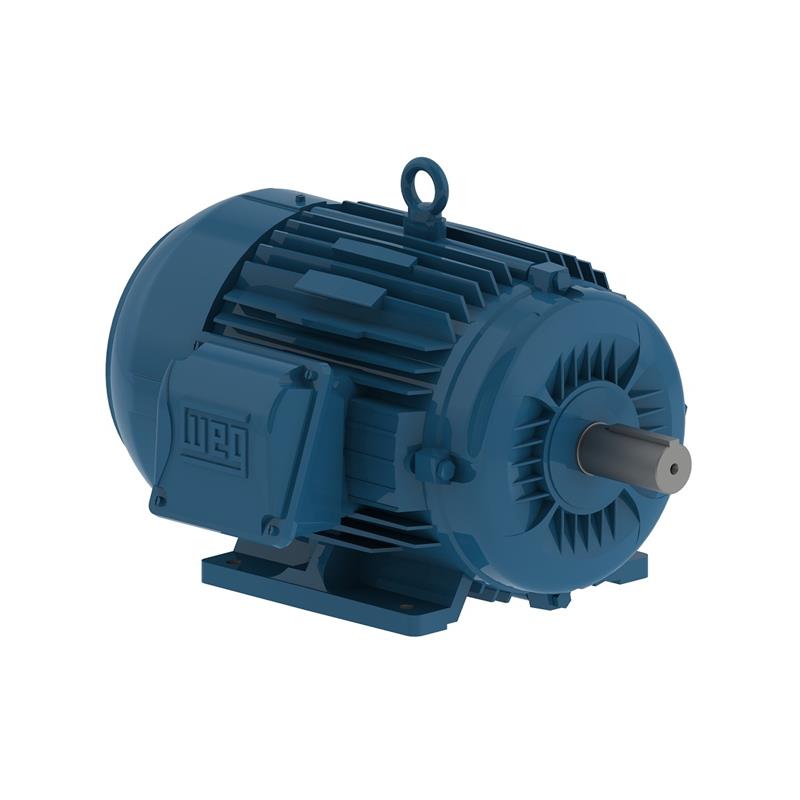

10036ET3E405TS-W22 WEG Motor (100 HP, 404/5TS FRAME, 460 V, THREE PHASE, TEFC , 3555 RPM)

10036ET3E405TS-W22 WEG Motor (100 HP, 404/5TS FRAME, 460 V, THREE PHASE, TEFC , 3555 RPM)

SKU:10036ET3E405TS-W22

Regular price $8,746.46 USD
Regular price Sale price $8,746.46 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 10036ET3E405TS-W22, 100 HP, RPM: 3555, FRAME: 404/5TS, 460 V, THREE PHASE: 60 Hz, : TEFC, WEG General Purpose Motor

Applications
Chemical plants, Compressors, Pulp and paper mills, Crushers, Refineries, Pumps, Steel mills, Fans, Cement mills, Packaging equipment
Features
WEG General Purpose Motors, 3-Phase, Cast Iron, NEMA Premium, TEFC

Tech Specs

Brand
WEG Motors
Model Number
10036ET3E405TS-W22
HP
100 HP
RPM
3555
FRAME
404/5TS
VOLTAGE
460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
1045
FEET
YES
TERMINAL BOX
LEFT
FLANGE
-
RATED CURRENT
110 A
LOCKED ROTOR CURRENT IL IN
6.5
LOCKED ROTOR CURRENT
715 A
LOCKED ROTOR TORQUE
2
BREAKDOWN TORQUE
2.4
EFFICIENCY 50
93
EFFICIENCY 75
94.1
EFFICIENCY 100
94.1
POWER FACTOR 50
0.85
POWER FACTOR 75
0.9
POWER FACTOR 100
0.91
SERVICE FACTOR
1.25
INERTIA KGM2
0.55609 kgm
INERTIA SQ FT LB
13.196 sq.ft.
LOCKED ROTOR TIME
14 s
NOISE LEVEL
79 dB(A)
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
26.0 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
198 Nm
FULL LOAD TORQUE LB FT
146 .ft
SLIP
0.0125
DESIGN
B
TEMPERATURE RISE
80 K
BEARINGS D E
6314 C3
BEARINGS N D E
6314 C3
REGREASING INTERVAL D E
4000 h
REGREASING INTERVAL N D E
4000 h
GREASE AMOUNT D E
27 g
GREASE AMOUNT N D E
27 g
