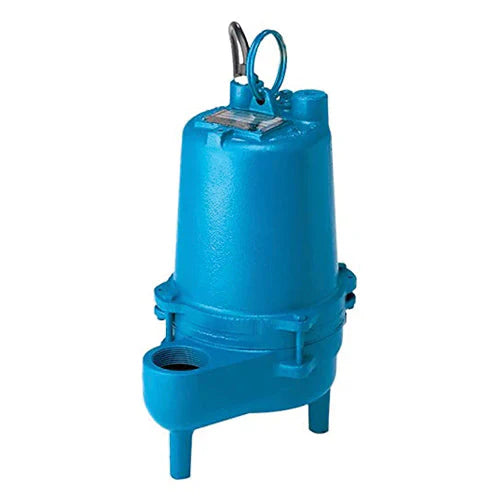

096750 Barnes Submersible Effluent Pump (SE421, 0.4 HP, 230 V, 1 Phase, 2" NPT Discharge, 1750 RPM)

096750 Barnes Submersible Effluent Pump (SE421, 0.4 HP, 230 V, 1 Phase, 2" NPT Discharge, 1750 RPM)

[COUNT] shoppers are looking at this right now

96750

$856.67 USD
$1,285.00 USD $856.67 USD
Sale Sold out
Shipping calculated at checkout.

Barnes Pumps SE421, Submersible Effluent Pump Series SE Series, 0.4 HP, 230 VOLT, 2" NPT Discharge (In)
Applications
PUMP IS DESIGNED FOR HANDLING SEWAGE EFFLUENT IN TYPICAL SEPTIC TANK/EFFLUENT APPLICATIONS.
Features
Cast Iron Construction.
Cast Iron Impeller.
Inboard Seal Design, ideal for agricultural use.

Specifications

Brand
Barnes
Part Number
096750
Type
Effluent Pump
Series
Submersible Effluent Pump Series SE
Catalog Number
SE421
HP
0.4
VOLT
230
PH/Hz
1 / 60
Discharge (In)
2" NPT
Automatic
No
RPM (Nom)
1750
NEMA START CODE
C
FULL LOAD AMPS
6.2
LOCKED ROTOR AMPS
13
CORD SIZE
14/3
CORD TYPE
SJTOW
CORD O.D inch (mm)
0.375 (9.50)
Warranty
1 Year
Notes
See Support Documents
