Barnes Pumps

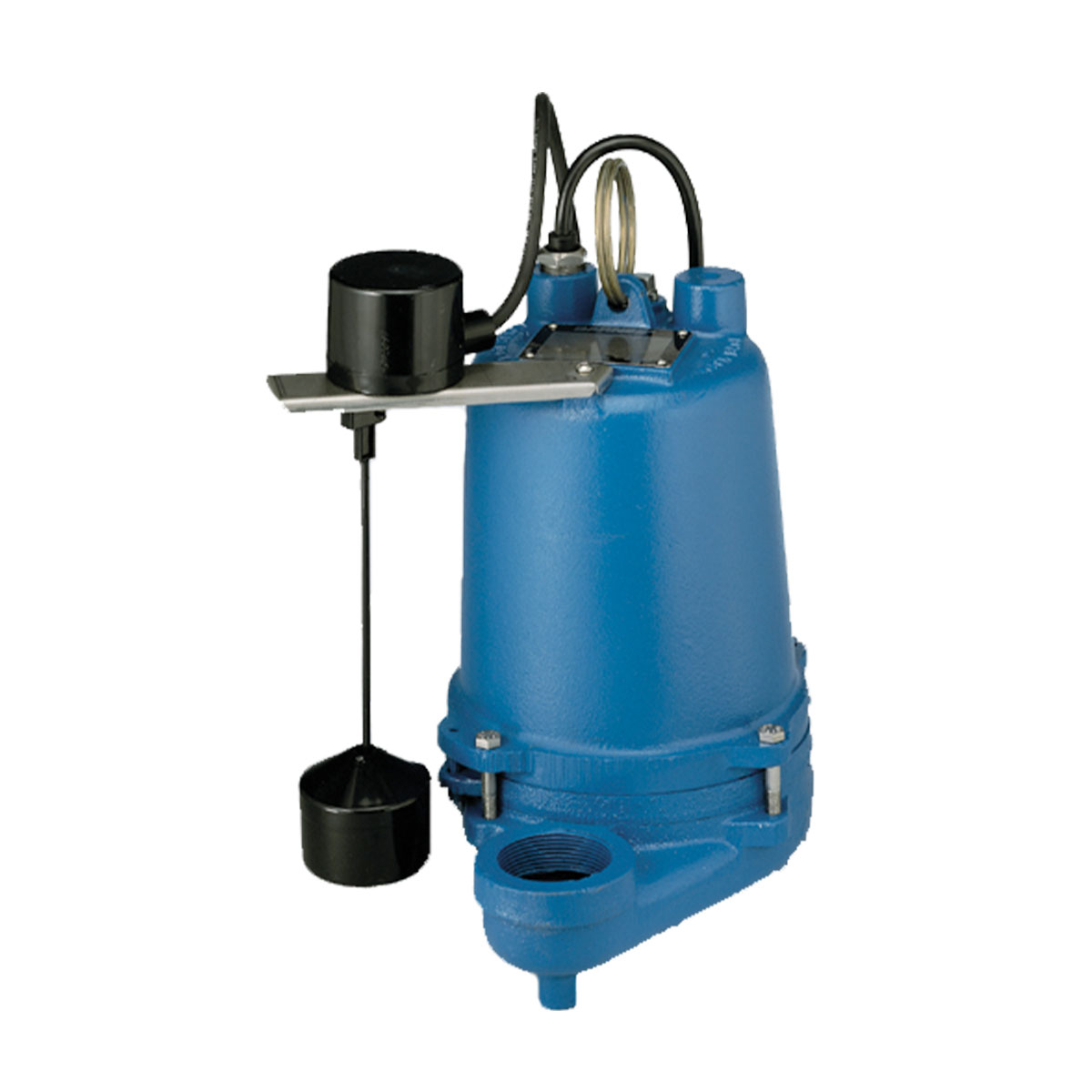

096745 Barnes Effluent Pump (BP324HTBR, 1/3 HP, Single Phase, 60 Hz, 1750 RPM, 230 Voltage, 2" Vertical Discharge)

096745 Barnes Effluent Pump (BP324HTBR, 1/3 HP, Single Phase, 60 Hz, 1750 RPM, 230 Voltage, 2" Vertical Discharge)

[COUNT] shoppers are looking at this right now

96745

$4,792.00 USD
$7,188.00 USD $4,792.00 USD
Sale Sold out
Shipping calculated at checkout.

Barnes 096745, BP324HTBR Series, 1/3 HP, Single Phase, 60 Hz, 1750 RPM, 0.75 Max Solids (Inches), 230 Voltage

Applications
PUMP IS DESIGNED FOR HANDLING SEWAGE EFFLUENT IN HIGH TEMPERATURE SEPTIC TANK/EFFLUENT APPLICATIONS
Features
High impact tank constructed with ABS material
Three inlet openings
3/8" O.D. barbed discharge adapter with built-in check valve (installed on the pump)
Removeable check valve
Built-in safety switch (BC-20S only)
150F maximum fluid temperature

Specifications

Brand
Barnes
Catalog Number
096745
Type
Effluent Pump
Series
BP324HTBR
HP
1/3
Phase
Single
Hz
60
RPM
1750
Max Solids (Inches)
0.75
Discharge
2" NPT, Female, Vertical
Voltage
230
Full Load Amps
4
Casing
Cast Iron
Impeller
Bronze
Shaft
Stainless Steel
Stages
1
GPM
45
Max Flow
70
Max Head
30
Liquid Temperature
200F (93C) Continuous
Cord Size
14/3

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
