Barnes Pumps

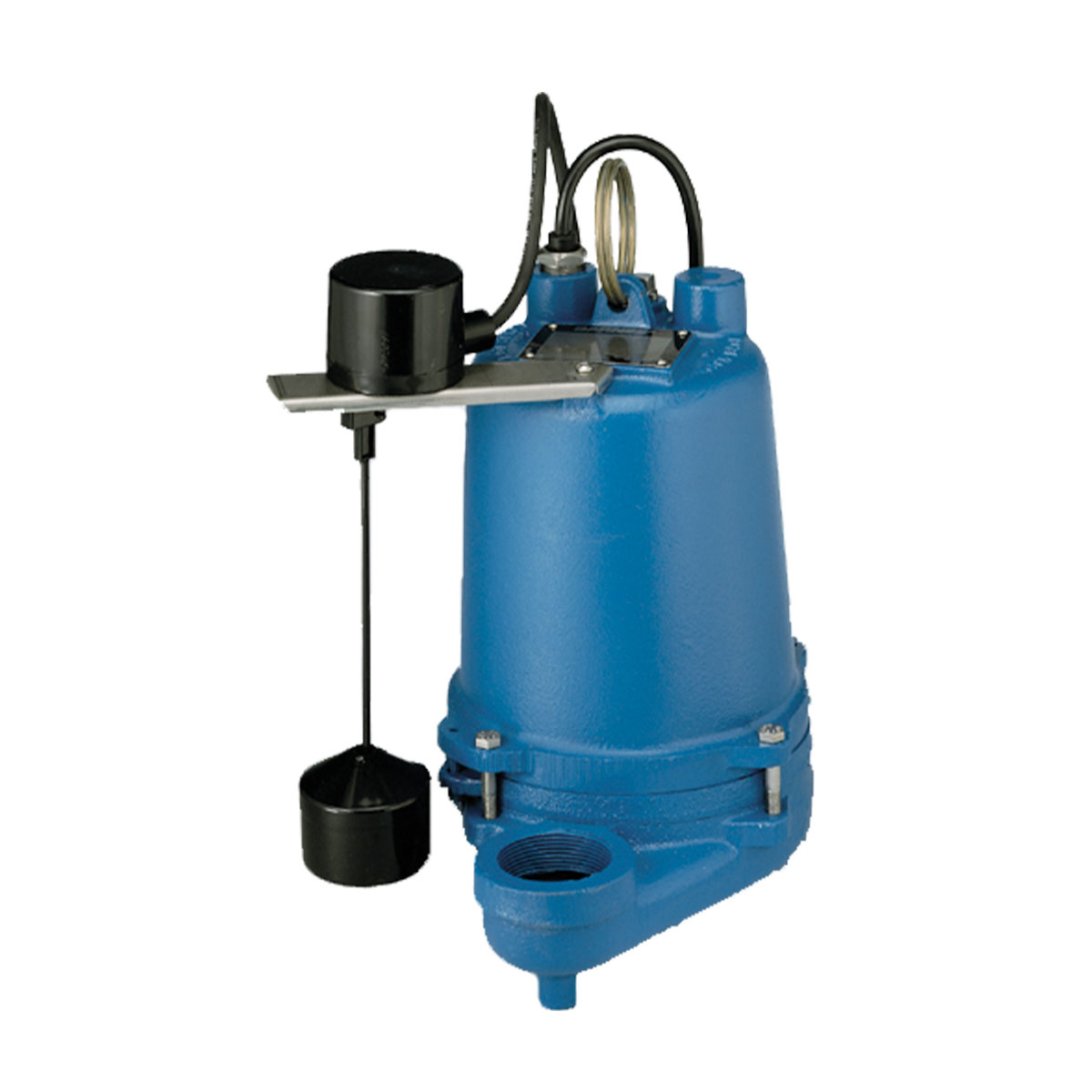

096744 Barnes Effluent Pump (BP314HTAUBR, 1/3 HP, Single Phase, 60 Hz, 1750 RPM, 115 Voltage, 2" Vertical Discharge)

096744 Barnes Effluent Pump (BP314HTAUBR, 1/3 HP, Single Phase, 60 Hz, 1750 RPM, 115 Voltage, 2" Vertical Discharge)

[COUNT] shoppers are looking at this right now

96744

$4,934.00 USD
$7,401.00 USD $4,934.00 USD
Sale Sold out
Shipping calculated at checkout.

Barnes 096744, BP314HTAUBR Series, 1/3 HP, Single Phase, 60 Hz, 1750 RPM, 0.75 Max Solids (Inches), 115 Voltage

Applications
PUMP IS DESIGNED FOR HANDLING SEWAGE EFFLUENT IN HIGH TEMPERATURE SEPTIC TANK/EFFLUENT APPLICATIONS
Features
High impact tank constructed with ABS material
Three inlet openings
3/8" O.D. barbed discharge adapter with built-in check valve (installed on the pump)
Removeable check valve
Built-in safety switch (BC-20S only)
150F maximum fluid temperature

Specifications

Brand
Barnes
Catalog Number
096744
Type
Effluent Pump
Series
BP314HTAUBR
HP
1/3
Phase
Single
Hz
60
RPM
1750
Max Solids (Inches)
0.75
Discharge
2" NPT, Female, Vertical
Voltage
115
Full Load Amps
8
Casing
Cast Iron
Impeller
Bronze
Shaft
Stainless Steel
Stages
1
GPM
45
Max Flow
70
Max Head
30
Liquid Temperature
200F (93C) Continuous
Cord Size
14/3
