Barnes Pumps

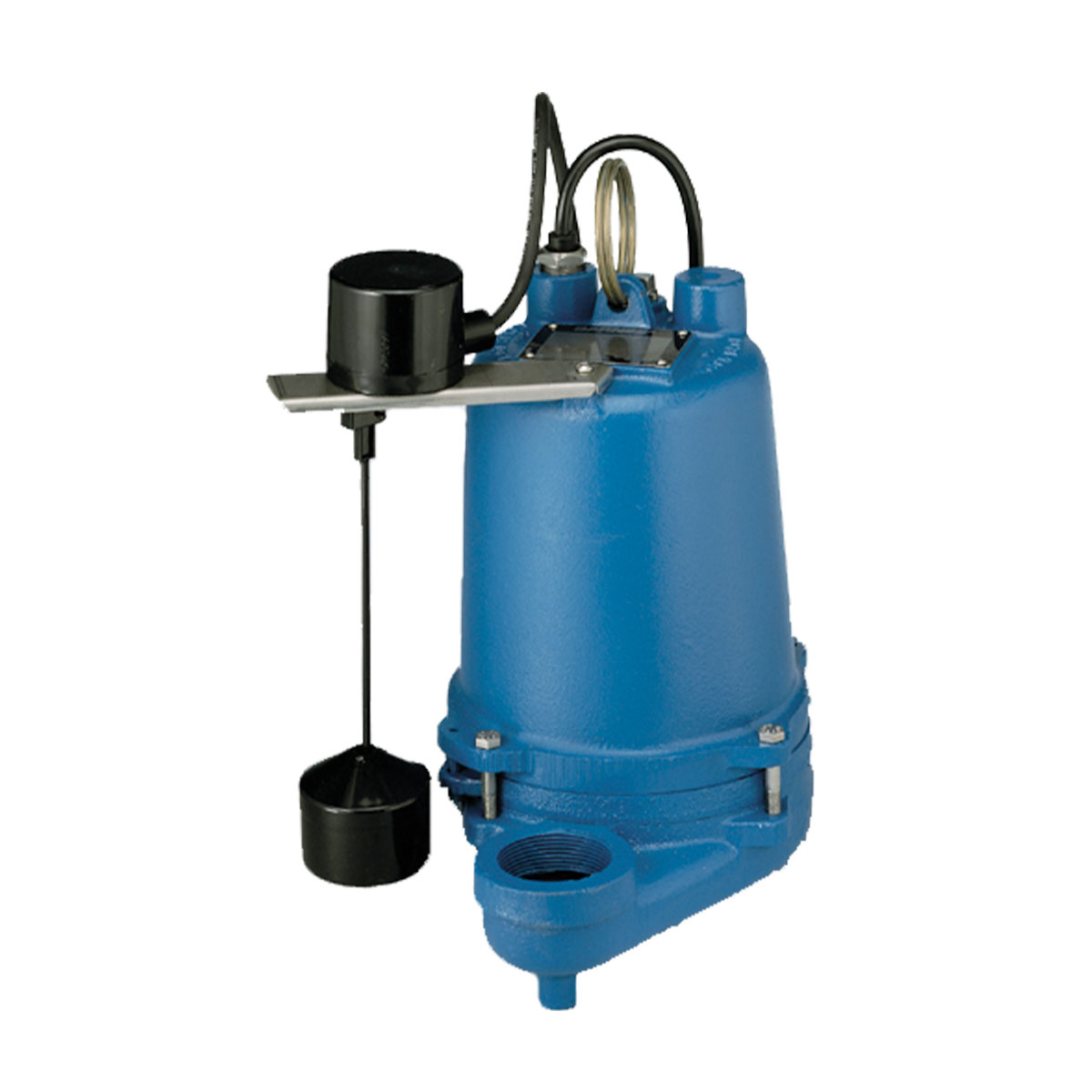

096742 Barnes Effluent Pump (1/3 HP, Single Phase, 60 Hz, 1750 RPM, 115 Voltage)

096742 Barnes Effluent Pump (1/3 HP, Single Phase, 60 Hz, 1750 RPM, 115 Voltage)

96742

$0.00 USD
$0.00 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Barnes 096742, BP314HTBR Series, 1/3 HP, Single Phase, 60 Hz, 1750 RPM, 0.75 Max Solids (Inches), 115 Voltage

Applications
PUMP IS DESIGNED FOR HANDLING SEWAGE EFFLUENT IN HIGH TEMPERATURE SEPTIC TANK/EFFLUENT APPLICATIONS
Features
High impact tank constructed with ABS material
Three inlet openings
3/8" O.D. barbed discharge adapter with built-in check valve (installed on the pump)
Removeable check valve
Built-in safety switch (BC-20S only)
150F maximum fluid temperature

Specifications

Brand
Barnes
Catalog Number
096742
Type
Effluent Pump
Series
BP314HTBR
HP
1/3
Phase
Single
Hz
60
RPM
1750
Max Solids (Inches)
0.75
Discharge
2" NPT, Female, Vertical
Voltage
115
Full Load Amps
8
Casing
Cast Iron
Impeller
Bronze
Shaft
Stainless Steel
Stages
1
GPM
45
Max Flow
70
Max Head
30
Liquid Temperature
200F (93C) Continuous
Cord Size
14/3

Support Documents (pdf)
