Barnes Pumps

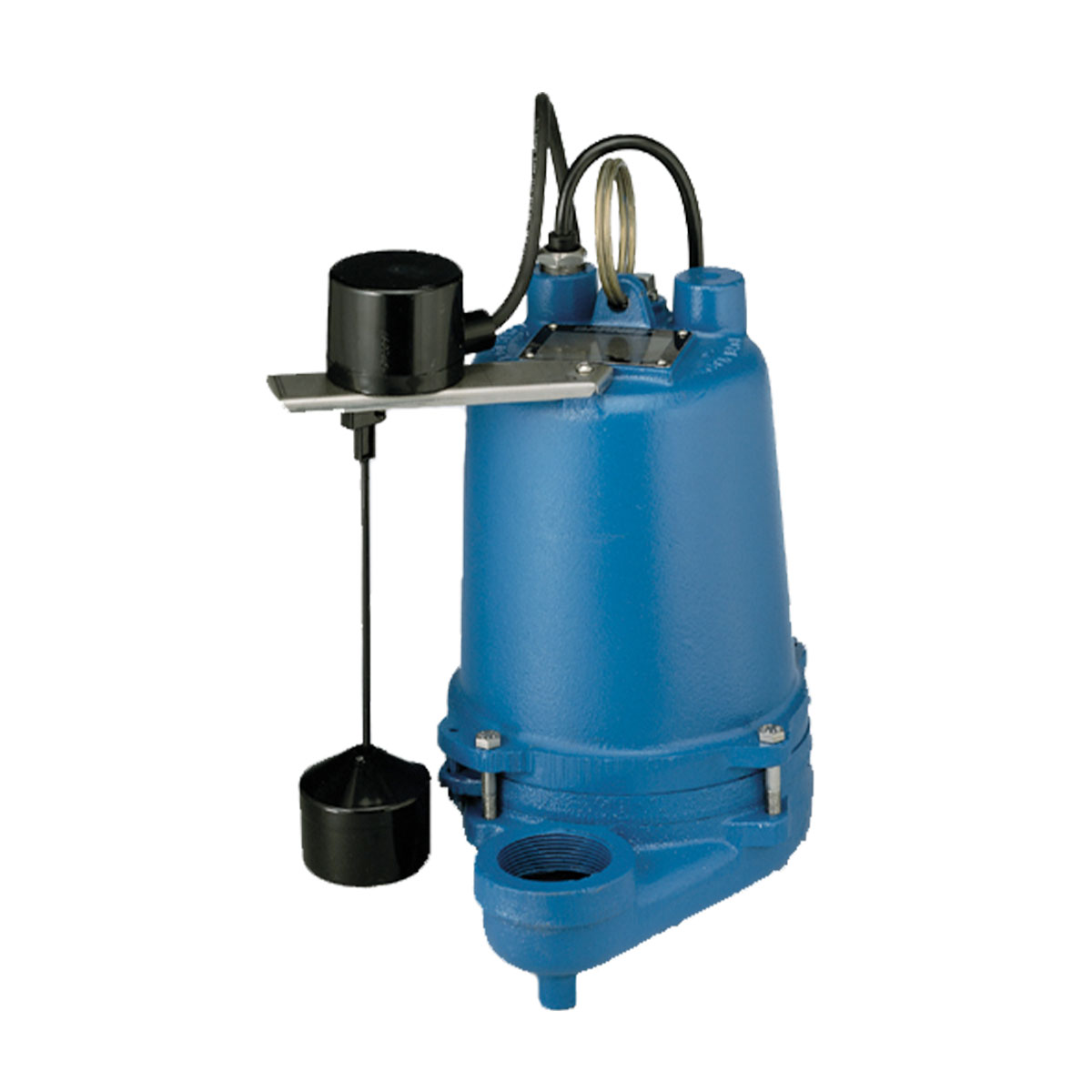

096736 Barnes Sump Pump (1/3 HP, 230 Voltage, Single Phase, 60 HZ, 3/4 " Max Solids)

096736 Barnes Sump Pump (1/3 HP, 230 Voltage, Single Phase, 60 HZ, 3/4 " Max Solids)

96736

$0.00 USD
$0.00 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Barnes 096736, BP324AUBR Series, 1/3 HP, 230 Voltage, Single Phase, 60 HZ, 1750 RPM, 3/4 " Max Solids

Applications
Best solution for the following operations: Residential Sump and Light Industrial
Features
Permanent split capacitor motor for reliable, high performance, longer motor life, great starting torque, and lower amp draw
Stainless steel hardware and shaft
Cast iron vortex impeller (EP), Opem Polypropylene (BP)
1/2" Spherical solids capacity
Automatic thermal overload protection
Upper and lower ball bearings

Specifications

Brand
Barnes
Catalog Number
096736
Type
Effluent Pump
Series
BP324AUBR
HP
1/3
Voltage
230
Phase
Single
HZ
60
RPM
1750
Full Load Amps
4
Max Solids (Inches)
3/4
Discharge
2 NPT, Female, Vertical
Casing
Cast Iron
Impeller
Bronze
Shaft
Stainless Steel
Stages
1
GPM
35
Max Flow
65
Max Head
30
Cord Type
SJTOW
Cord Size
14/3
NEMA Start Code
A
