Barnes Pumps

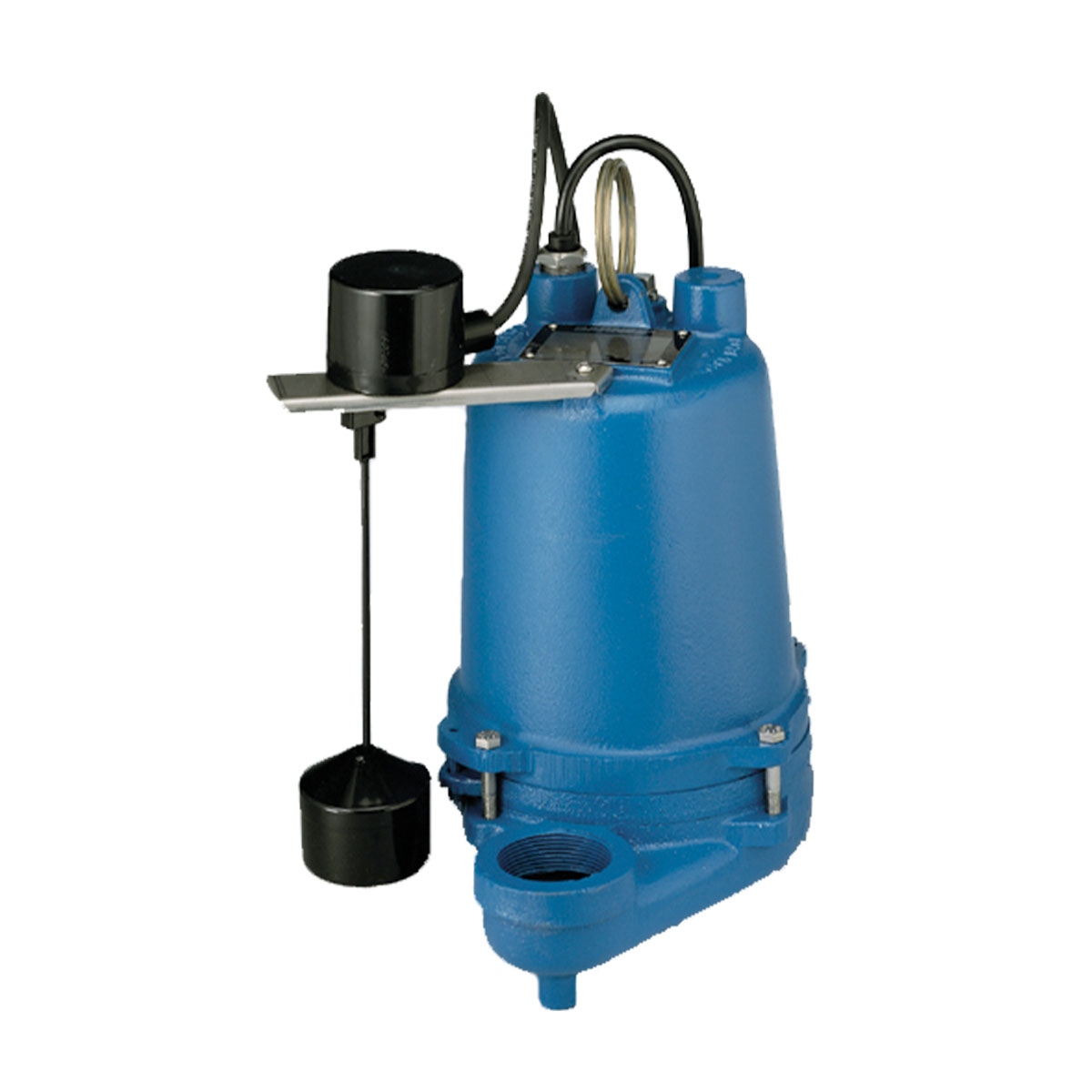

096730 Barnes Sump Pump (1/3 HP, 230 Voltage, Single Phase, 60 HZ, 3/4 " Max Solids, 2" NPT Vertical Discharge)

096730 Barnes Sump Pump (1/3 HP, 230 Voltage, Single Phase, 60 HZ, 3/4 " Max Solids, 2" NPT Vertical Discharge)

👁️ [COUNT] People are currently viewing this product.

96730

$911.33 USD
$1,367.00 USD $911.33 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

Barnes 096730, BP324 Series, 1/3 HP, 230 Voltage, Single Phase, 60 HZ, 1750 RPM, 3/4 " Max Solids

Applications
Best solution for the following operations: Residential Sump and Light Industrial
Features
Permanent split capacitor motor for reliable, high performance, longer motor life, great starting torque, and lower amp draw
Stainless steel hardware and shaft
Cast iron vortex impeller (EP), Opem Polypropylene (BP)
1/2" Spherical solids capacity
Automatic thermal overload protection
Upper and lower ball bearings

Specifications

Brand
Barnes
Catalog Number
096730
Type
Effluent Pump
Series
BP324
HP
1/3
Voltage
230
Phase
Single
HZ
60
RPM
1750
Full Load Amps
4
Max Solids (Inches)
3/4
Discharge
2 NPT, Female, Vertical
Casing
Cast Iron
Impeller
Bronze
Shaft
Stainless Steel
Stages
1
GPM
35
Max Flow
65
Max Head
30
Cord Type
SJTOW
Cord Size
14/3
NEMA Start Code
A

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • ALL IMAGES SHOWN ON OUR WEBSITE ARE FOR ILLUSTRATION PURPOSE ONLY AND MAY NOT BE AN EXACT REPRESENTATION OF THE PRODUCT. ACTUAL PRODUCTS MAY VARY FROM THE IMAGES SHOWN.
