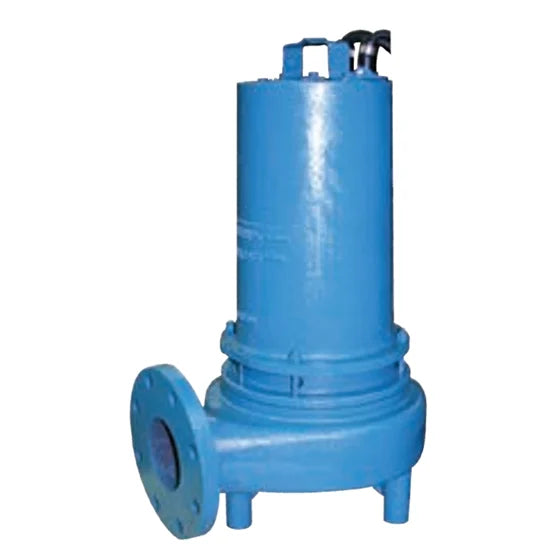

084633 Barnes Model 4SE11344L, 4SE-L Series, Sewage Pump (11.3 HP, 460 Volts, 3 Phase, 4" Flanged Horizontal Discharge, 880 GPM Max, 70 ft Max Head, 40 ft Cord, Manual, Double Seal)

084633 Barnes Model 4SE11344L, 4SE-L Series, Sewage Pump (11.3 HP, 460 Volts, 3 Phase, 4" Flanged Horizontal Discharge, 880 GPM Max, 70 ft Max Head, 40 ft Cord, Manual, Double Seal).

This is a submersible, non-clog sewage pump designed for typical raw sewage applications. This pump has a double seal and can handle spherical solids up to 3 inch in diameter. It has a torque curved, oil filled, squirrel cage induction motor.

Features

• 4" 125lb., flanged horizonal discharge
• Volute, motor housing, and seal plate are cast iron ASTM A-48, Class 30
• Impeller has a 2 vane open design with pump out vanes on back side
• 416 stainless steel shaft
• 300 series stainless steel hardware
• 304 stainless steel lifting bail
• Double mechanical seal design made of Carbon/Ceramic/Buna-N with an oil filled pressure equalized reservoir
• Single row, oil lubricated, radial load upper and lower ball bearings
• Moisture sensor (Normally Open) and temperature sensor (Normally Closed) require relay in control panel
• 40 ft. cord, epoxy sealed housing with secondary pressure grommet for sealing and strain relief
