WEG

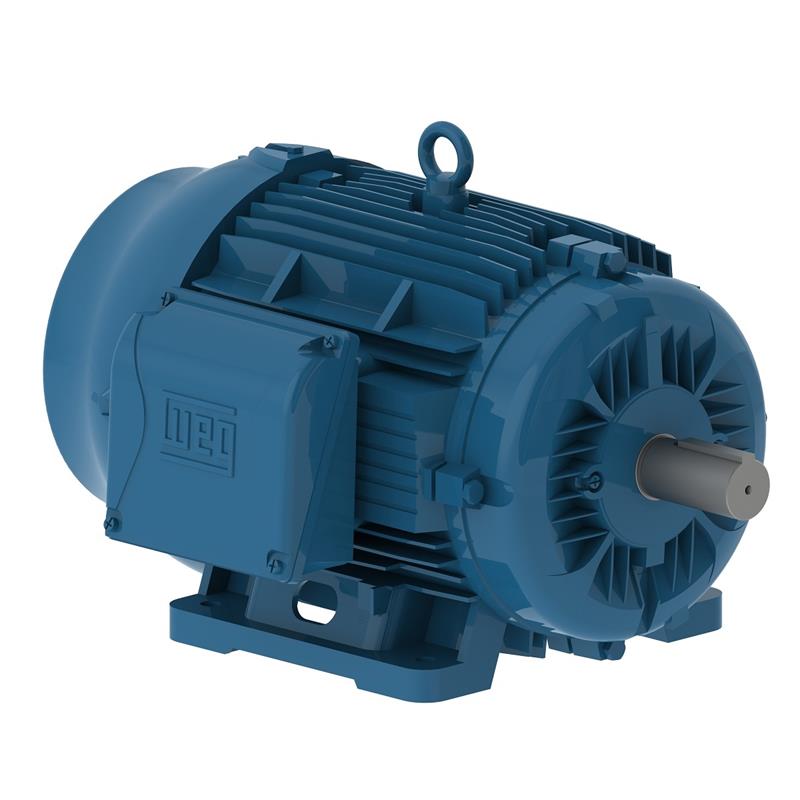

07536ET3E365TS-W22G WEG Motor (75 HP, 3600 RPM, Three Phase, 364/5TS Frame, TEFC Enclosure, 208-230/460 Voltage)

07536ET3E365TS-W22G WEG Motor (75 HP, 3600 RPM, Three Phase, 364/5TS Frame, TEFC Enclosure, 208-230/460 Voltage)

07536ET3E365TS-W22G

$7,237.21 USD
$7,237.21 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG 07536ET3E365TS-W22G, Commercial HVAC Motors Series, 75 HP, 55 KW, 3600 RPM, Three Phase, 364/5TS Frame, TEFC Enclosure, Foot Mount Motor Mount, 208-230/460 Voltage

Applications
High Starting Torque makes these motors ideal for a wide range of applications.
Features
New ventilation system for improved thermal performance
Robust feet design suitable for tougher applications
Oversized diagonally split aluminum terminal box that exceeds IP55 requirements
Terminal box rotatable in 90 degrees increments for flexibility during installation
Color coded leads as standard for easy wiring
Bearing cap as standard on flanged motors, optional on non flanged
Suitable for VFD operation as per NEMA MG1 part 31.4.4.2
Motor frame painting system 500 hours salt spray resistant

Specifications

Brand
WEG
Catalog Number
07536ET3E365TS-W22G
Type
Air Handling Motor
Series
Commercial HVAC Motors
HP
75
KW
55
RPM
3600
Phase
Three
C-Dimentions
32.276
Service Factor
1.25
Frame
364/5TS
Enclosure
TEFC
Full Load Amps
81.9
Motor Mount
Foot Mount
Voltage
208-230/460
Warranty
1 Year
