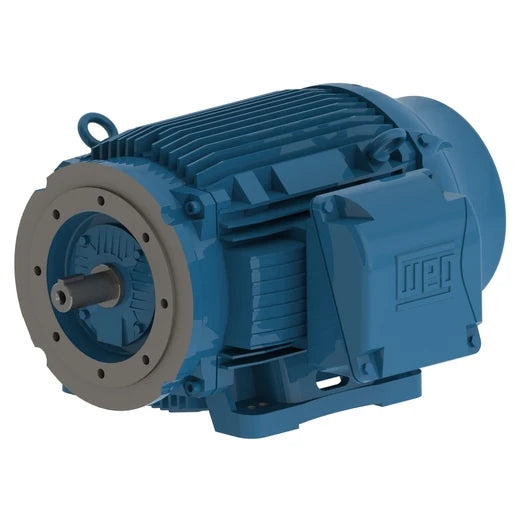

07518ET3E365TSCF2-W2 WEG Motor W22 NEMA Premium Efficiency (75 HP, 4P, 364/5TSC, 3Phase, 230/460//380V, 60//50 Hz, IC411, TEFC, Foot-mounted)
With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
| Frame | 364/5TSC |
|---|---|
| Output | 75 HP (55 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1780 rpm |
| Slip | 1.11 % |
| Rated voltage | 230/460 V |
| Rated current | 174/87.2 A |
| L. R. Amperes | 1116/558 A |
| LRC | 6.4x(Code G) |
| No load current | 66.0/33.0 A |
| Rated torque | 221 ft.lb |
| Locked rotor torque | 240 % |
| Breakdown torque | 260 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 23.3 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-2 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 67.0 dB(A) |
| Approx. weight³ | 946 lb |
