WEG

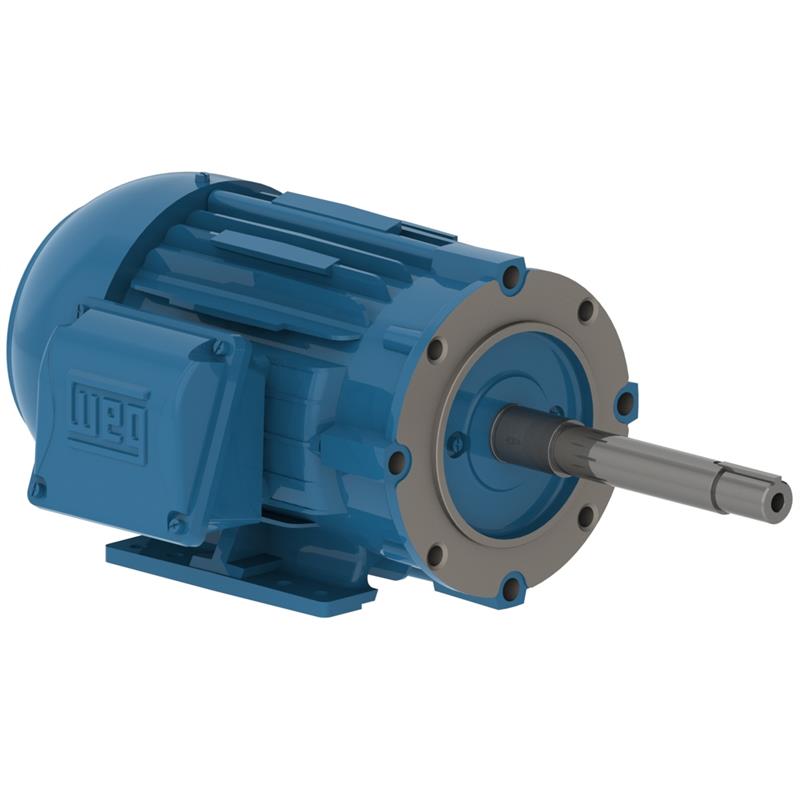

07512ET3E405JP-W22 WEG Motor, Close Coupled Pump (75 HP, 404/5JP FRAME, 460 V, THREE PHASE, TEFC , 1180 RPM)
07512ET3E405JP-W22 WEG Motor, Close Coupled Pump (75 HP, 404/5JP FRAME, 460 V, THREE PHASE, TEFC , 1180 RPM)
SKU:07512ET3E405JP-W22
Regular price
$10,206.15 USD
Regular price
Sale price
$10,206.15 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
WEG Motor 07512ET3E405JP-W22, 75 HP, RPM: 1180, FRAME: 404/5JP, 460 V, THREE PHASE: 60 Hz, : TEFC, WEG Close Coupled Pump Motor
| Applications |
| Specially developed line for industrial and commercial pumping applications, such as Water pumping, Process, and Transfer and circulating pumps |
| Features |
| Close Coupled Pump Motors, 3-Phase, Cast Iron, NEMA Premium, TEFC, JM & JP |
Tech Specs | |
Brand |
WEG Motors |
Model Number |
07512ET3E405JP-W22 |
HP |
75 HP |
RPM |
1180 |
FRAME |
404/5JP |
VOLTAGE |
460 V |
PHASE |
THREE |
FREQUENCY |
60 Hz |
ENCLOSURE |
TEFC |
APPROXIMATE WEIGHT (lb) |
1089 |
FEET |
YES |
TERMINAL BOX |
LEFT |
FLANGE |
FC-279 |
RATED CURRENT |
84.9 A |
LOCKED ROTOR CURRENT IL IN |
6.4 |
LOCKED ROTOR CURRENT |
543 A |
LOCKED ROTOR TORQUE |
2 |
BREAKDOWN TORQUE |
2.3 |
EFFICIENCY 50 |
94.1 |
EFFICIENCY 75 |
94.5 |
EFFICIENCY 100 |
94.5 |
POWER FACTOR 50 |
0.74 |
POWER FACTOR 75 |
0.83 |
POWER FACTOR 100 |
0.86 |
SERVICE FACTOR |
1.25 |
INERTIA KGM2 |
1.6945 kgm |
INERTIA SQ FT LB |
40.209 sq.ft. |
LOCKED ROTOR TIME |
17 s |
NOISE LEVEL |
68 dB(A) |
ALTITUDE |
1000 |
DUTY CYCLE |
S1 |
AMBIENT TEMPERATURE |
-20C - +40C |
DEGREE OF PROTECTION |
IP55 |
NO-LOAD CURRENT |
30.0 A |
INSULATION CLASS |
F |
FULL LOAD TORQUE NM |
446 Nm |
FULL LOAD TORQUE LB FT |
329 .ft |
SLIP |
0.0167 |
DESIGN |
B |
TEMPERATURE RISE |
80 K |
BEARINGS D E |
6314 C3 |
BEARINGS N D E |
6314 C3 |
REGREASING INTERVAL D E |
17000 h |
REGREASING INTERVAL N D E |
17000 h |
GREASE AMOUNT D E |
27 g |
GREASE AMOUNT N D E |
27 g |
