WEG

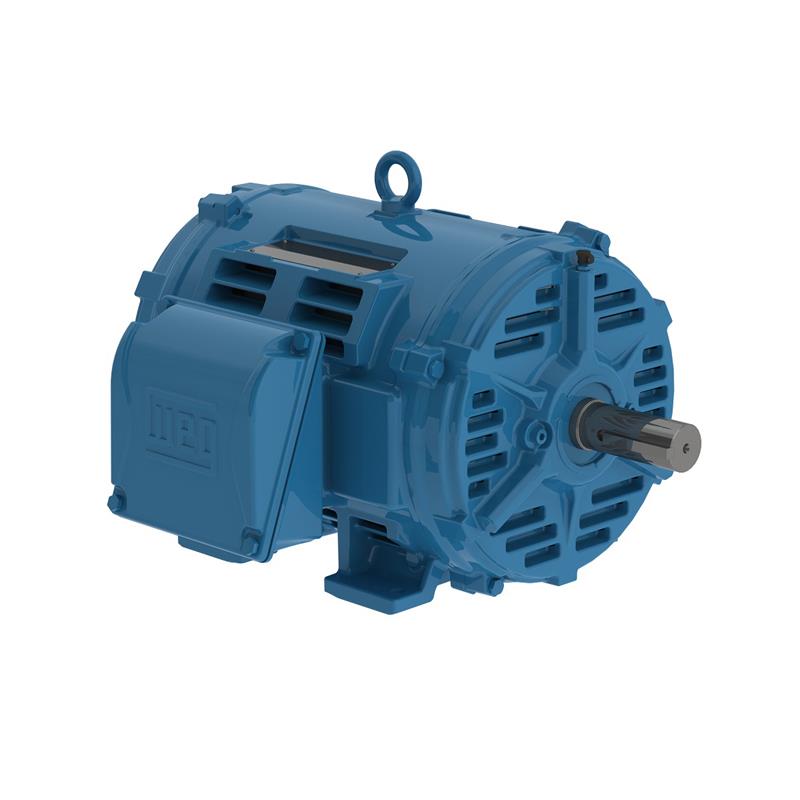

06018OT3E364TS-W40 WEG Motor (60 HP, 364TS FRAME, 460 V, THREE PHASE, ODP , 1780 RPM)

06018OT3E364TS-W40 WEG Motor (60 HP, 364TS FRAME, 460 V, THREE PHASE, ODP , 1780 RPM)

SKU:06018OT3E364TS-W40

Regular price $3,237.84 USD
Regular price Sale price $3,237.84 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 06018OT3E364TS, 60 HP, RPM: 1780, FRAME: 364TS, 460 V, THREE PHASE: 60 Hz, : ODP, WEG General Purpose Motor

Applications
Pumps, fans, crushers, conveyors, machine tools, milling applications, centrifugal machines, presses, elevators, looms, grinders, woodworking, cooling, packaging equipment, other Severe Duty applications
Features
General Purpose Motor, 3-Phase, Rolled Steel or Cast Iron, NEMA Premium, ODP

Tech Specs

Brand
WEG Motors
Model Number
06018OT3E364TS
HP
60 HP
RPM
1780
FRAME
364TS
VOLTAGE
460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
ODP
APPROXIMATE WEIGHT (lb)
825
FEET
YES
TERMINAL BOX
LEFT
FLANGE
-
RATED CURRENT
69.9 A
LOCKED ROTOR CURRENT IL IN
8.8
LOCKED ROTOR CURRENT
615 A
LOCKED ROTOR TORQUE
2.5
BREAKDOWN TORQUE
3
EFFICIENCY 50
93
EFFICIENCY 75
94.5
EFFICIENCY 100
95
POWER FACTOR 50
0.7
POWER FACTOR 75
0.8
POWER FACTOR 100
0.85
SERVICE FACTOR
1.15
INERTIA KGM2
0.68237 kgm
INERTIA SQ FT
16.193 sq.ft.
LOCKED ROTOR TIME
15 s
NOISE LEVEL
68 dB(A)
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP23
NO-LOAD CURRENT
27.5 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
237 Nm
FULL LOAD TORQUE FT
175 .ft
SLIP
0.0111
DESIGN
B
TEMPERATURE RISE
80 K
BEARINGS D E
6314 C3
BEARINGS N D E
6314 C3
REGREASING INTERVAL D E
20000 h
REGREASING INTERVAL N D E
20000 h
GREASE AMOUNT D E
27 g
GREASE AMOUNT N D E
27 g
