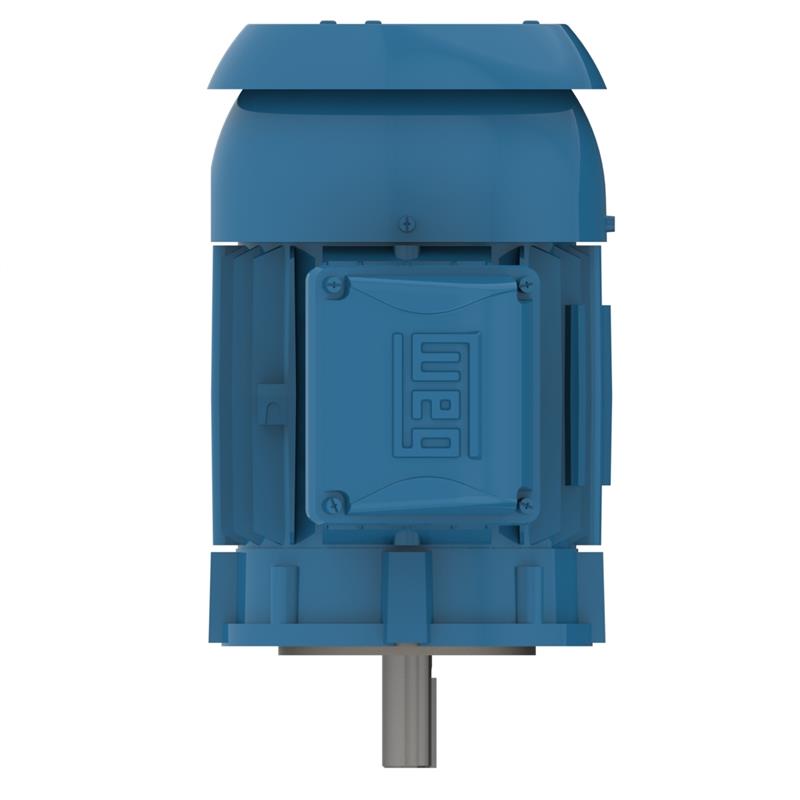

06018ET3ER364TC-W22 WEG Motor (60 HP, 1800 RPM, 3 Phase, 60Hz, 364/5TC Frame, 230/460V, TEFC, Footless)
06018ET3ER364TC-W22 WEG Motor (60 HP, 1800 RPM, 3 Phase, 60Hz, 364/5TC Frame, 230/460V, TEFC, Footless)
[COUNT] shoppers are looking at this right now
No reviews
SKU:06018ET3ER364TC-W22
Regular price
$7,167.17 USD
Regular price
$8,053.00 USD
Sale price
$7,167.17 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
WEG 06018ET3ER364TC-W22, 60 HP, 1800 RPM, 3 Phase, 60Hz, 364/5TC Frame, 230/460V, TEFC, Footless
| Applications | |
| General Purpose Motor | |
| Features | |
| F1 mounted (cast iron frames are F2 convertible). Frames 447T and up can easily be F2 converted by simply rotating the terminal box adapter. | |
| Class F insulation | |
| Efficiency levels: High Efficiency (EPAct) and NEMA Premium | |
| IP55 standard, IP56 optional | |
| F1 mount as standard | |
| Aluminum endshields | |
| Cast Iron flanges for improved strength (182/4TC and larger) | |
| Internal bolts, giving a clean surface to the motor, avoiding trapping materials and allowing easy paint job after assembly to the load if required | |
| Double shielded ball bearings on frames 56 to 213/5T. Optional double sealed ball bearings and/or bearing cap | |
Specifications | |
Brand |
WEG |
Catalog Number |
06018ET3ER364TC-W22 |
Type |
General Purpose Motor |
HP |
60 |
RPM |
1800 |
Phase |
3 |
Frequency |
60Hz |
Frame |
364/5TC |
Voltage |
230/460 |
Enclosure |
TEFC |
Mounting |
Footless |
FL Efficiency |
95 |
FL Amps |
68.3 |
Construction |
Cast Iron |
Service Factor |
1.25 |
"C" Dimensions |
37.44 |
Drive End Flange Type |
C-Face |
Warranty |
1 Year |
Support Documents (pdf) | ||||
