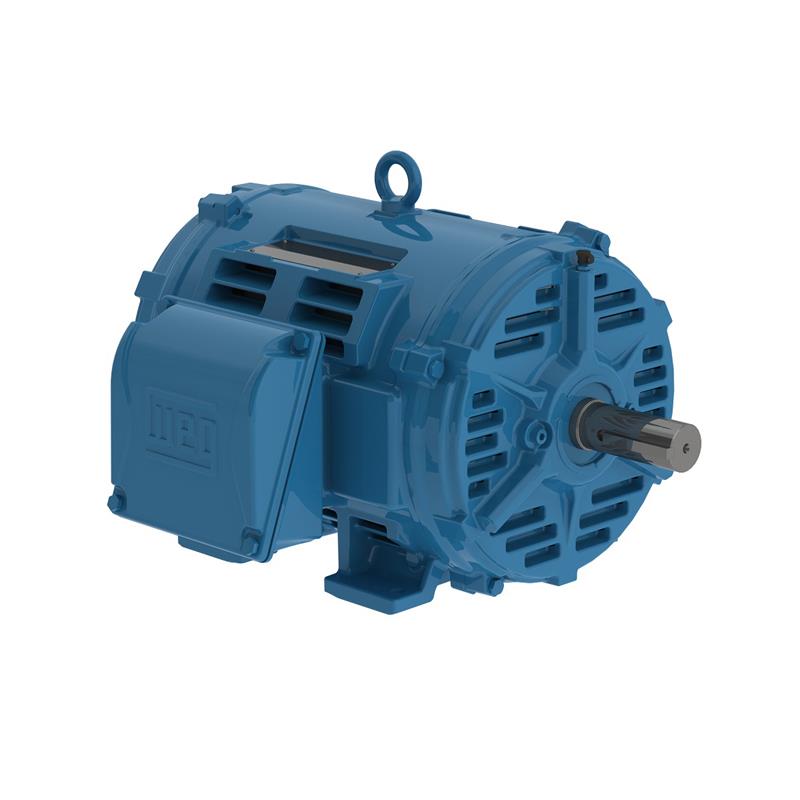

06012OT3E404T-W40 WEG Motor (60 HP, 404/5T FRAME, 208-230/460 V, THREE PHASE, ODP , 1185 RPM)
06012OT3E404T-W40 WEG Motor (60 HP, 404/5T FRAME, 208-230/460 V, THREE PHASE, ODP , 1185 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:06012OT3E404T-W40
Regular price
$5,888.91 USD
Regular price
$7,562.00 USD
Sale price
$5,888.91 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
WEG Motor 06012OT3E404T, 60 HP, RPM: 1185, FRAME: 404/5T, 208-230/460 V, THREE PHASE: 60 Hz, : ODP, WEG General Purpose Motor
| Applications |
| Pumps, fans, crushers, conveyors, machine tools, milling applications, centrifugal machines, presses, elevators, looms, grinders, woodworking, cooling, packaging equipment, other Severe Duty applications |
| Features |
| General Purpose Motor, 3-Phase, Rolled Steel or Cast Iron, NEMA Premium, ODP |
Tech Specs | |
Brand |
WEG Motors |
Model Number |
06012OT3E404T |
HP |
60 HP |
RPM |
1185 |
FRAME |
404/5T |
VOLTAGE |
208-230/460 V |
PHASE |
THREE |
FREQUENCY |
60 Hz |
ENCLOSURE |
ODP |
APPROXIMATE WEIGHT (lb) |
915 |
FEET |
YES |
TERMINAL BOX |
LEFT |
FLANGE |
- |
RATED CURRENT |
157-142/71.2 A |
LOCKED ROTOR CURRENT IL IN |
7.4 |
LOCKED ROTOR CURRENT |
1050/527 A |
LOCKED ROTOR TORQUE |
2.8 |
BREAKDOWN TORQUE |
2.8 |
EFFICIENCY 50 |
93.6 |
EFFICIENCY 75 |
94.1 |
EFFICIENCY 100 |
94.5 |
POWER FACTOR 50 |
0.68 |
POWER FACTOR 75 |
0.79 |
POWER FACTOR 100 |
0.84 |
SERVICE FACTOR |
1.15 |
INERTIA KGM2 |
1.2708 kgm |
INERTIA SQ FT |
30.157 sq.ft. |
LOCKED ROTOR TIME |
16 s |
NOISE LEVEL |
69 dB(A) |
ALTITUDE |
1000 |
DUTY CYCLE |
S1 |
AMBIENT TEMPERATURE |
-20C - +40C |
DEGREE OF PROTECTION |
IP23 |
NO-LOAD CURRENT |
58.0/29.0 A |
INSULATION CLASS |
F |
FULL LOAD TORQUE NM |
356 Nm |
FULL LOAD TORQUE FT |
262 .ft |
SLIP |
0.0125 |
DESIGN |
B |
TEMPERATURE RISE |
80 K |
BEARINGS D E |
6316 C3 |
BEARINGS N D E |
6314 C3 |
REGREASING INTERVAL D E |
20000 h |
REGREASING INTERVAL N D E |
20000 h |
GREASE AMOUNT D E |
34 g |
GREASE AMOUNT N D E |
27 g |
