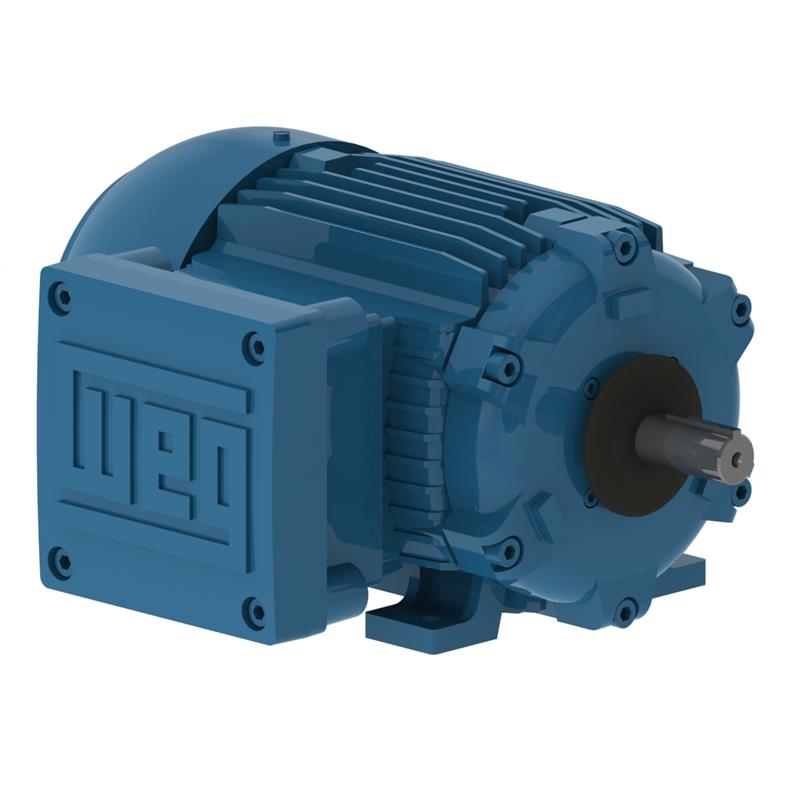

06009XT3E405T WEG Explosion Proof Motor (60 HP, 900 RPM, 3 Phase, 404/5T Frame, 208-230/460 Voltage, Explosion Proof)
06009XT3E405T WEG Explosion Proof Motor (60 HP, 900 RPM, 3 Phase, 404/5T Frame, 208-230/460 Voltage, Explosion Proof)
[COUNT] shoppers are looking at this right now
No reviews
SKU:06009XT3E405T
Regular price
$23,941.00 USD
Regular price
$26,900.00 USD
Sale price
$23,941.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
WEG 06009XT3E405T, Series, 60 HP, 45 KW, 900 RPM, 3 Phase, 404/5T Frame, 208-230/460 Voltage, Explosion Proof
| Applications | |
| WEG Explosion Proof motors are suitable for applications requiring UL or CSA certification for hazardous locations. | |
| Features | |
| Class F insulation (Impregnation Resin and Magnet wire are class H) | |
| F1 Mounted (Cast Iron frames are F2 convertible) | |
| Stainless Steel Nameplate - Laser etched with high contrast background | |
| All frames with regreasable ball bearings (Frames 364T and up) | |
| CSA Approved - File LR50962 | |
| UL Listed - File E87848 | |
Specifications | |
Brand |
WEG |
Catalog Number |
06009XT3E405T |
Type |
Explosion Proof |
HP |
60 |
KW |
45 |
RPM |
900 |
Phase |
3 |
Service Factor |
1.15 |
Frame |
404/5T |
Voltage |
208-230/460 |
Enclosure |
Explosion Proof |
Mount |
Foot Mount |
Full Load Amps |
75.9 |
Warranty |
1 Year |
