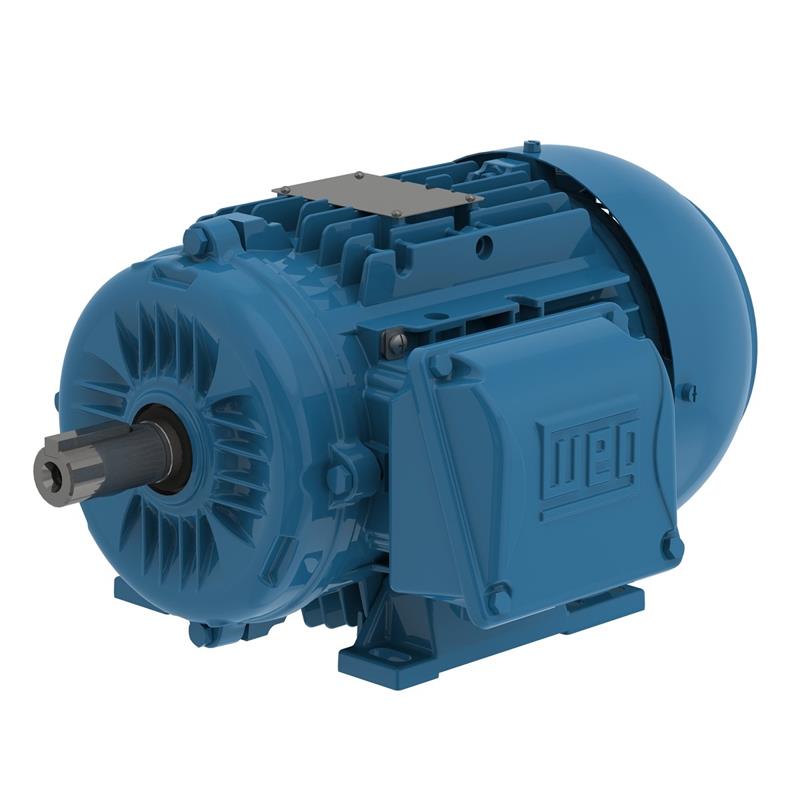

05536ET3Y250S/M-W22 WEG Motor (75 HP, 3600/3000 RPM, 3 Phase, 250S/M Frame, TEFC Enclosure, 460//380-415/660-690 Voltage)

05536ET3Y250S/M-W22 WEG Motor (75 HP, 3600/3000 RPM, 3 Phase, 250S/M Frame, TEFC Enclosure, 460//380-415/660-690 Voltage)

[COUNT] shoppers are looking at this right now

05536ET3Y250S/M-W22

$8,763.83 USD
$9,847.00 USD $8,763.83 USD
Sale Sold out
Shipping calculated at checkout.

WEG 05536ET3Y250S/M-W22, 75 HP, 55 KW, 3600/3000 RPM, 3 Phase, 250S/M Frame, TEFC Enclosure, 460//380-415/660-690 Voltage

Applications
This line is designed and built according to European IEC34 and IEC79 standards.
Features
60 Hz (1.15 service factor) and 50 Hz (1.0 service factor)
Class F insulation (Impregnation Resin and Magnet wire are class H)
F2 mounted as standard (F1 convertible)
Stainless Steel Nameplate - Laser etched with High contrast background
Regreasable ball bearings (Frames 160 and up)
Gasketed conduit box
Suitable for WYE/Delta Start (W and Y voltage code motors)

Specifications

Brand
WEG
Catalog Number
05536ET3Y250S/M-W22
Type
IEC Tru-Metric Motor
HP
75
KW
55
RPM
3600/3000
Phase
3
C Dimension
37.992
Service Factor
1.25
Frame
250S/M
Enclosure
TEFC
Full Load Amps
80.3
Mount
Foot Mount
Voltage
460//380-415/660-690
Warranty
1 Year

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
