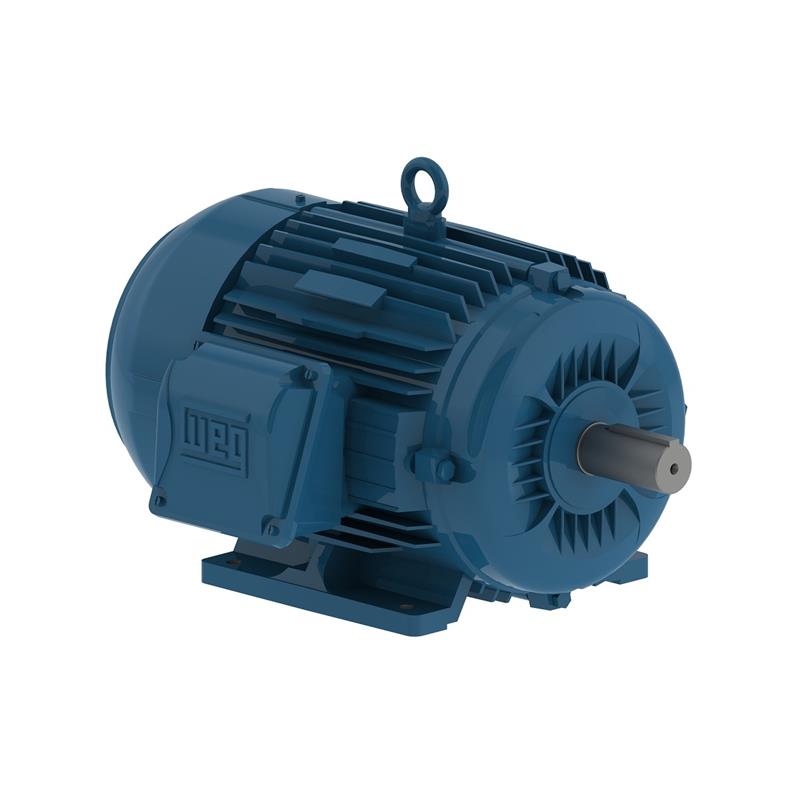

05036ET3E326TS-W22 WEG General Purpose Motor (NEMA MG-1, 50 HP, 324/6TS FRAME, 230/460 Volt, Three Phase, TEFC Enclosure, 3600 RPM, Foot Mounted)
05036ET3E326TS-W22 WEG General Purpose Motor (NEMA MG-1, 50 HP, 324/6TS FRAME, 230/460 Volt, Three Phase, TEFC Enclosure, 3600 RPM, Foot Mounted)
[COUNT] shoppers are looking at this right now
No reviews
SKU:05036ET3E326TS-W22
Regular price
$4,731.24 USD
Regular price
$5,316.00 USD
Sale price
$4,731.24 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
WEG Motor 05036ET3E326TS-W22, 50 HP, RPM: 3550, FRAME: 326TS, 460 V, THREE PHASE: 60 Hz, : TEFC, WEG General Purpose Motor.
With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
| Applications |
| Chemical plants, Compressors, Pulp and paper mills, Crushers, Refineries, Pumps, Steel mills, Fans, Cement mills, Packaging equipment |
| Features |
| WEG General Purpose Motors, 3-Phase, Cast Iron, NEMA Premium, TEFC |
|
Tech Specs |
|
|
Brand
|
WEG Motors
|
|
Model Number
|
05036ET3E326TS-W22
|
|
HP
|
50 HP
|
|
RPM
|
3550
|
|
FRAME
|
326TS
|
|
VOLTAGE
|
460 V
|
|
PHASE
|
THREE
|
|
FREQUENCY
|
60 Hz
|
|
ENCLOSURE
|
TEFC
|
|
APPROXIMATE WEIGHT (lb)
|
584
|
|
FEET
|
YES
|
|
TERMINAL BOX
|
LEFT
|
|
FLANGE
|
-
|
|
RATED CURRENT
|
56.1 A
|
|
LOCKED ROTOR CURRENT IL IN
|
6.2
|
|
LOCKED ROTOR CURRENT
|
348 A
|
|
LOCKED ROTOR TORQUE
|
2.2
|
|
BREAKDOWN TORQUE
|
2.3
|
|
EFFICIENCY 50
|
93
|
|
EFFICIENCY 75
|
93
|
|
EFFICIENCY 100
|
93
|
|
POWER FACTOR 50
|
0.83
|
|
POWER FACTOR 75
|
0.87
|
|
POWER FACTOR 100
|
0.89
|
|
SERVICE FACTOR
|
1.25
|
|
INERTIA KGM2
|
0.24218 kgm
|
|
INERTIA SQ FT LB
|
5.7469 sq.ft.
|
|
LOCKED ROTOR TIME
|
23 s
|
|
NOISE LEVEL
|
74 dB(A)
|
|
ALTITUDE
|
1000
|
|
DUTY CYCLE
|
S1
|
|
AMBIENT TEMPERATURE
|
-20C - +40C
|
|
DEGREE OF PROTECTION
|
IP55
|
|
NO-LOAD CURRENT
|
15.0 A
|
|
INSULATION CLASS
|
F
|
|
FULL LOAD TORQUE NM
|
98.9 Nm
|
|
FULL LOAD TORQUE LB FT
|
73.0 .ft
|
|
SLIP
|
0.0139
|
|
DESIGN
|
B
|
|
TEMPERATURE RISE
|
80 K
|
|
BEARINGS D E
|
6312 C3
|
|
BEARINGS N D E
|
6212 C3
|
|
REGREASING INTERVAL D E
|
12000 h
|
|
REGREASING INTERVAL N D E
|
15000 h
|
|
GREASE AMOUNT D E
|
21 g
|
|
GREASE AMOUNT N D E
|
13 g
|
|
|
|
|
|
|
