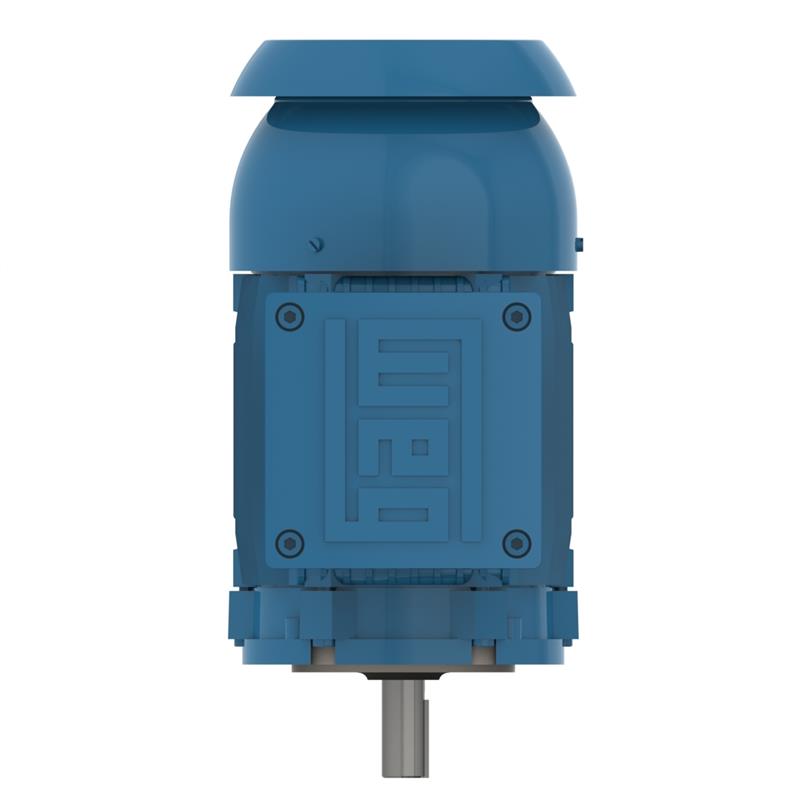

05018XT3ER326TC WEG Explosion Proof Motor (50 HP, 1800 RPM, 3 Phase, 326TC Frame, 208-230/460 Voltage, Explosion Proof)
05018XT3ER326TC WEG Explosion Proof Motor (50 HP, 1800 RPM, 3 Phase, 326TC Frame, 208-230/460 Voltage, Explosion Proof)
[COUNT] shoppers are looking at this right now
No reviews
SKU:05018XT3ER326TC
Regular price
$0.00 USD
Regular price
$7,215.00 USD
Sale price
$0.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
WEG 05018XT3ER326TC, Series, 50 HP, 37 KW, 1800 RPM, 3 Phase, 326TC Frame, 208-230/460 Voltage, Explosion Proof
| Applications | |
| WEG Explosion Proof motors are suitable for applications requiring UL or CSA certification for hazardous locations. | |
| Features | |
| Class F insulation (Impregnation Resin and Magnet wire are class H) | |
| F1 Mounted (Cast Iron frames are F2 convertible) | |
| Stainless Steel Nameplate - Laser etched with high contrast background | |
| All frames with regreasable ball bearings (Frames 364T and up) | |
| CSA Approved - File LR50962 | |
| UL Listed - File E87848 | |
Specifications | |
Brand |
WEG |
Catalog Number |
05018XT3ER326TC |
Type |
Explosion Proof |
HP |
50 |
KW |
37 |
RPM |
1800 |
Phase |
3 |
Service Factor |
1.15 |
Frame |
326TC |
Voltage |
208-230/460 |
Enclosure |
Explosion Proof |
Mount |
Footless |
Full Load Amps |
60.6 |
Warranty |
1 Year |
