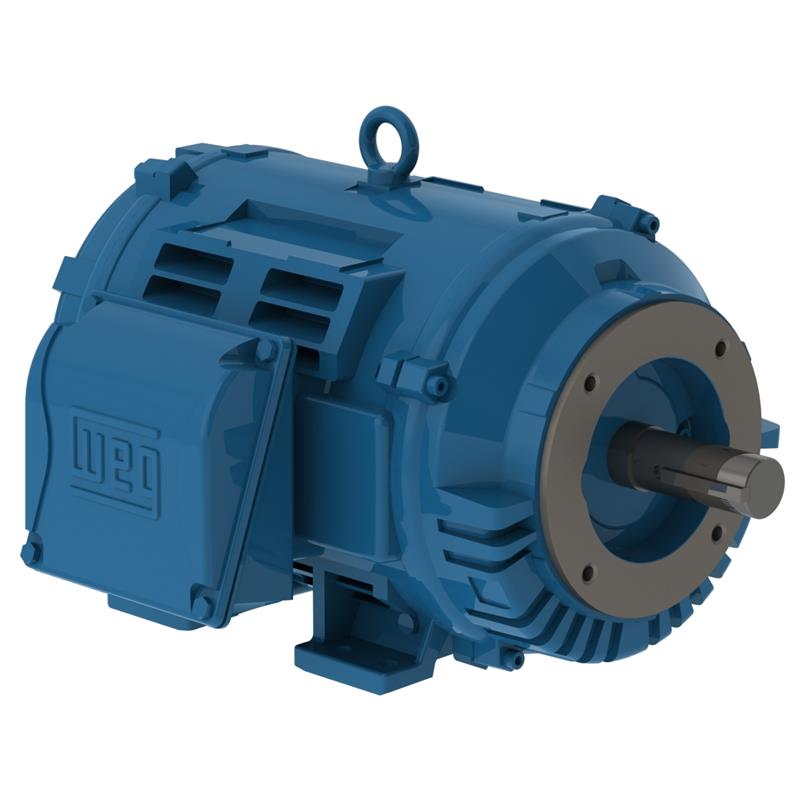

05018OT3H326TC-W40 WEG Motor (50 HP, 1800 RPM, 3 Phase, 326TC Frame, ODP, 575 Voltage, Foot Mount)

05018OT3H326TC-W40 WEG Motor (50 HP, 1800 RPM, 3 Phase, 326TC Frame, ODP, 575 Voltage, Foot Mount)

[COUNT] shoppers are looking at this right now

05018OT3H326TC-W40

$3,460.32 USD
$3,888.00 USD $3,460.32 USD
Sale Sold out
Shipping calculated at checkout.

WEG 05018OT3H326TC, 50 HP, 1800 RPM, 3 Phase, 326TC Frame, ODP, 575 Voltage, Foot Mount,

Applications
WEG Open Drip Proof (ODP) motor is a general purpose line designed for environments where dirt and moisture are minimal. The ODP cast iron frame is designed to provide maximum ventilation and heat dissipation, offering lowvibration levels, high mechanical stiffness and durability. Widely used in applications such as compressors, pumps and chillers, the ODP motor line meets or exceeds the efficiency levels determined by International Standardsand the minimum efficiency level programs in worldwide.
Features
Rated output: NEMA (60 Hz) - 15 to 2,500 HP
Number of poles: 2 through 6
Frame sizes NEMA 254T to L6808/09
Frequency: 50 or 60 Hz
Voltage: 208 to 4,160 V
Degree of protection ODP (IP23) for frames 256T to L5810 WPI (IP24) for frame size L6808/09
Efficiency levels: NEMA Premium Efficiency (60Hz)
50/60 Hz rated up to 250 HP
Stainless Steel Nameplate - Laser etched with high contrast background (Cast Iron Frames only)
Class F insulation (Impregnation Resin and Magnet wire are class H)
Class B Rise at 1.15 Service Factor

Specifications

Brand
WEG
Catalog Number
05018OT3H326TC
Type
General Purpose C-Face Motor
HP
50
RPM
1800
Phase
3
Frame
326TC
Enclosure
ODP
Voltage
575
Full Load Amps
47.9
Full Load Efficiency
94.5
Frame Material
Cast Iron
Service Factor
1.15
"C" Dimensions
27.667
Mounting
Foot Mount
Warranty
1 Year
