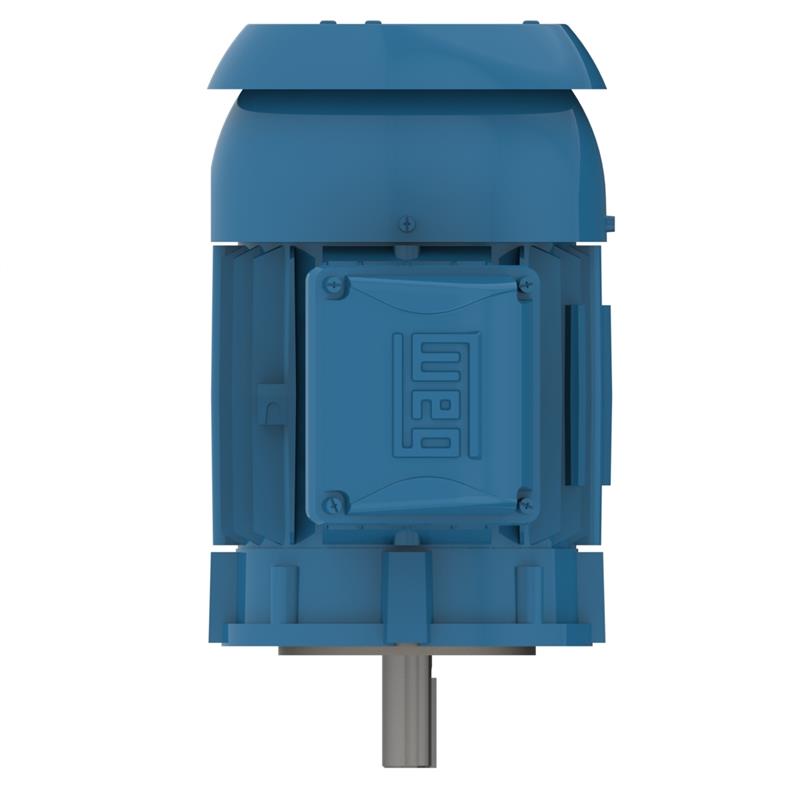

05018ET3ER326TC-W22 WEG Motor (50 HP, 1800 RPM, 3 Phase, 60Hz, 326TC Frame, 230/460V, TEFC, Footless)

05018ET3ER326TC-W22 WEG Motor (50 HP, 1800 RPM, 3 Phase, 60Hz, 326TC Frame, 230/460V, TEFC, Footless)

05018ET3ER326TC-W22

$3,919.21 USD
$3,919.21 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG 05018ET3ER326TC-W22, 50 HP, 1800 RPM, 3 Phase, 60Hz, 326TC Frame, 230/460V, TEFC, Footless

Applications
General Purpose Motor
Features
F1 mounted (cast iron frames are F2 convertible). Frames 447T and up can easily be F2 converted by simply rotating the terminal box adapter.
Class F insulation
Efficiency levels: High Efficiency (EPAct) and NEMA Premium
IP55 standard, IP56 optional
F1 mount as standard
Aluminum endshields
Cast Iron flanges for improved strength (182/4TC and larger)
Internal bolts, giving a clean surface to the motor, avoiding trapping materials and allowing easy paint job after assembly to the load if required
Double shielded ball bearings on frames 56 to 213/5T. Optional double sealed ball bearings and/or bearing cap

Specifications

Brand
WEG
Catalog Number
05018ET3ER326TC-W22
Type
General Purpose Motor
HP
50
RPM
1800
Phase
3
Frequency
60Hz
Frame
326TC
Voltage
230/460
Enclosure
TEFC
Mounting
Footless
FL Efficiency
94.5
FL Amps
59.2
Construction
Cast Iron
Service Factor
1.25
"C" Dimensions
33.754
Drive End Flange Type
C-Face
Warranty
1 Year
