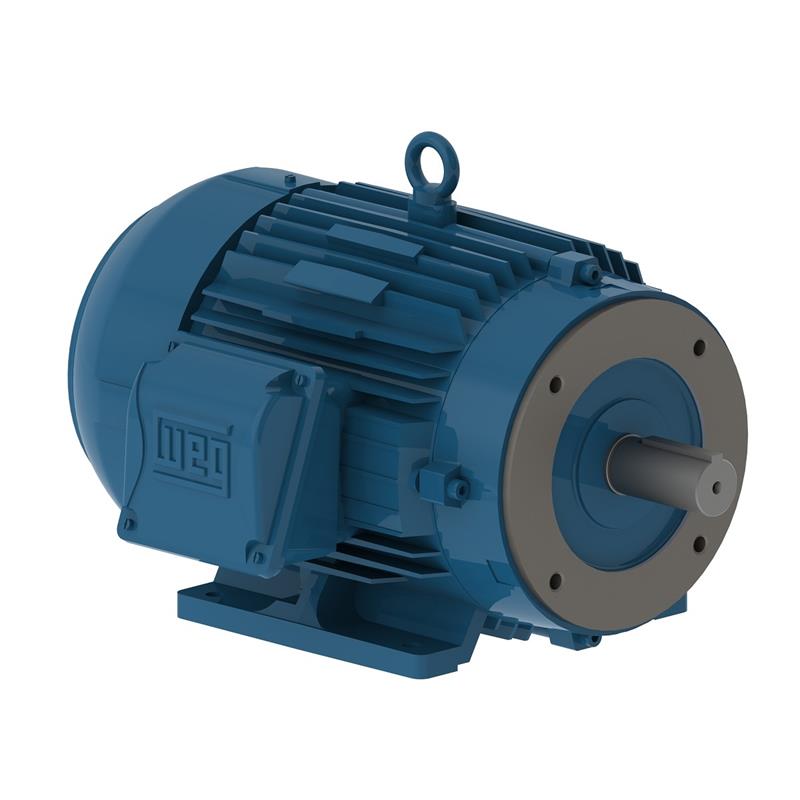

05018ET3E326TC-W22 WEG Motor (50 HP, 1800 RPM, 3 Phase, 60 Hz, 324/6TC, 230/460V, TEFC, Foot Mount)

05018ET3E326TC-W22 WEG Motor (50 HP, 1800 RPM, 3 Phase, 60 Hz, 324/6TC, 230/460V, TEFC, Foot Mount)

[COUNT] shoppers are looking at this right now

05018ET3E326TC-W22

$4,646.69 USD
$5,221.00 USD $4,646.69 USD
Sale Sold out
Shipping calculated at checkout.

WEG 05018ET3E326TC-W22, 50 HP, 1800 RPM, 3 Phase, 60 Hz, 324/6TC, 230/460V, TEFC, Foot Mount

Applications
General Purpose Motor
Features
All WEG W22 motors are Totally Enclosed Fan Cooled with a true IP55 rating against dust and moisture.
All NEMA Premium ratings have a 1.25 service factor (up to 100 HP) resulting in cooler operation and extended life of the motor
All Cast Iron Construction, including Terminal Box and Fan Cover
Solid feet for reduced vibration levels and impact absortion
Optimized ventilation system for cooler operation and extended life
High Grade FC200 cast iron provides superior mechanical strength and heat dissipation
Exclusive WEG painting system exceed 200hrs ASTM 117 corrosion test (Exceeds IEEE841 standard)
Corrosion Proof Drains g Inverter Duty per NEMA MG1, Part 31
Stainless Steel Nameplate - Laser edged with high contrast background
Impregnation Resin and magnet wire are insulation class H
Four Bolt Conduit Cover with glued Neoprene Gasket

Specifications

Brand
WEG
Catalog Number
05018ET3E326TC-W22
Type
General Purpose Motor
HP
50
RPM
1800
Phase
3
Hertz
60
Frame
324/6TC
Voltage
230/460
Enclosure
TEFC
Mounting
Foot Mount
FL Efficiency
94.5
FL Amps
59.2
Construction
Cast Iron
Service Factor
1.25
"C" Dimensions
31.116
Drive End Flange Type
C-Face
Warranty
1 Year
