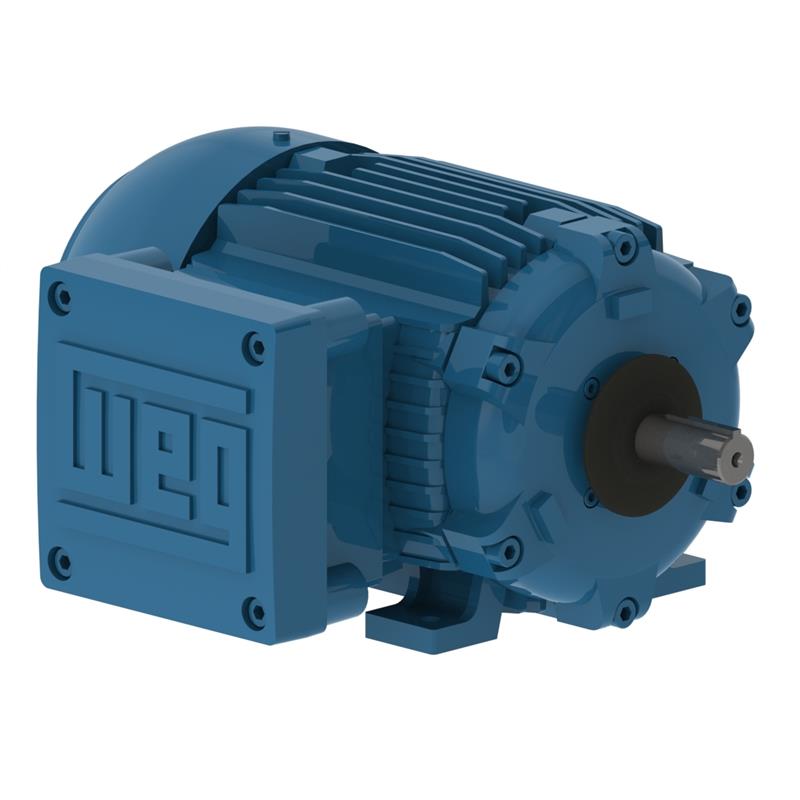

05012XT3H365T WEG Explosion Proof Motor (50 HP, 1200 RPM, 3 Phase, 364/5T Frame, 575 Voltage, Explosion Proof)
05012XT3H365T WEG Explosion Proof Motor (50 HP, 1200 RPM, 3 Phase, 364/5T Frame, 575 Voltage, Explosion Proof)
[COUNT] shoppers are looking at this right now
SKU:05012XT3H365T
Regular price
$9,965.33 USD
Regular price
$11,197.00 USD
Sale price
$9,965.33 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
WEG 05012XT3H365T, Series, 50 HP, 37 KW, 1200 RPM, 3 Phase, 364/5T Frame, 575 Voltage, Explosion Proof
| Applications | |
| WEG Explosion Proof motors are suitable for applications requiring UL or CSA certification for hazardous locations. | |
| Features | |
| Class F insulation (Impregnation Resin and Magnet wire are class H) | |
| F1 Mounted (Cast Iron frames are F2 convertible) | |
| Stainless Steel Nameplate - Laser etched with high contrast background | |
| All frames with regreasable ball bearings (Frames 364T and up) | |
| CSA Approved - File LR50962 | |
| UL Listed - File E87848 | |
Specifications | |
Brand |
WEG |
Catalog Number |
05012XT3H365T |
Type |
Explosion Proof |
HP |
50 |
KW |
37 |
RPM |
1200 |
Phase |
3 |
Service Factor |
1.15 |
Frame |
364/5T |
Voltage |
575 |
Enclosure |
Explosion Proof |
Mount |
Foot Mount |
Full Load Amps |
46.5 |
Warranty |
1 Year |
Support Documents (pdf) | ||||
