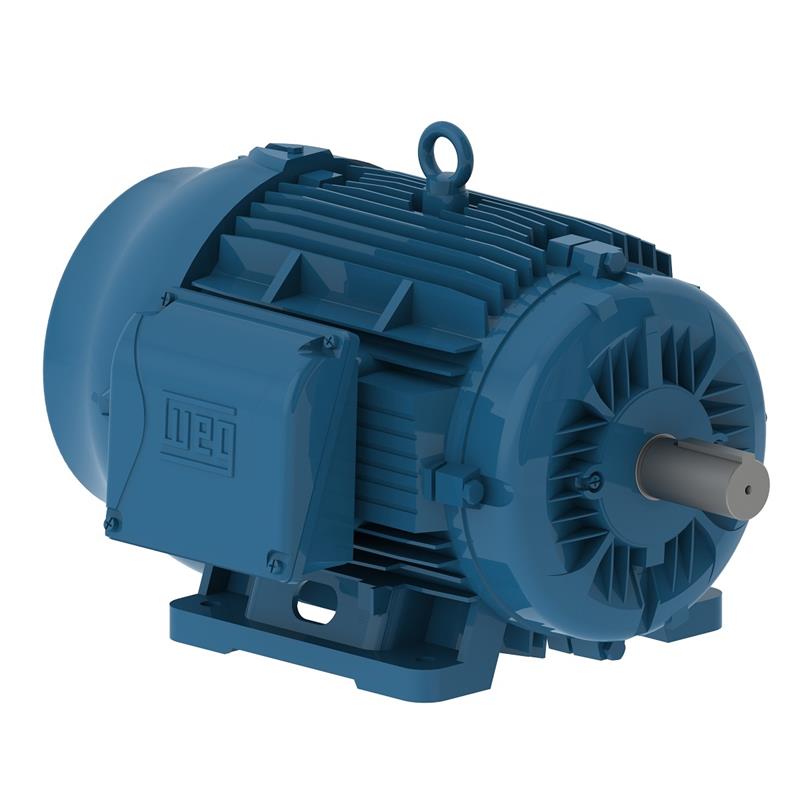

04036ET3E324TS-W22G WEG Motor (40 HP, 3600 RPM, Three Phase, 324/6TS Frame, TEFC Enclosure, 208-230/460 Voltage)

04036ET3E324TS-W22G WEG Motor (40 HP, 3600 RPM, Three Phase, 324/6TS Frame, TEFC Enclosure, 208-230/460 Voltage)

[COUNT] shoppers are looking at this right now

04036ET3E324TS-W22G

$4,561.25 USD
$5,125.00 USD $4,561.25 USD
Sale Sold out
Shipping calculated at checkout.

WEG 04036ET3E324TS-W22G, Commercial HVAC Motors Series, 40 HP, 30 KW, 3600 RPM, Three Phase, 324/6TS Frame, TEFC Enclosure, Foot Mount Motor Mount, 208-230/460 Voltage

Applications
High Starting Torque makes these motors ideal for a wide range of applications.
Features
New ventilation system for improved thermal performance
Robust feet design suitable for tougher applications
Oversized diagonally split aluminum terminal box that exceeds IP55 requirements
Terminal box rotatable in 90 degrees increments for flexibility during installation
Color coded leads as standard for easy wiring
Bearing cap as standard on flanged motors, optional on non flanged
Suitable for VFD operation as per NEMA MG1 part 31.4.4.2
Motor frame painting system 500 hours salt spray resistant

Specifications

Brand
WEG
Catalog Number
04036ET3E324TS-W22G
Type
Air Handling Motor
Series
Commercial HVAC Motors
HP
40
KW
30
RPM
3600
Phase
Three
C-Dimentions
29.616
Service Factor
1.25
Frame
324/6TS
Enclosure
TEFC
Full Load Amps
45.8
Motor Mount
Foot Mount
Voltage
208-230/460
Warranty
1 Year

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
