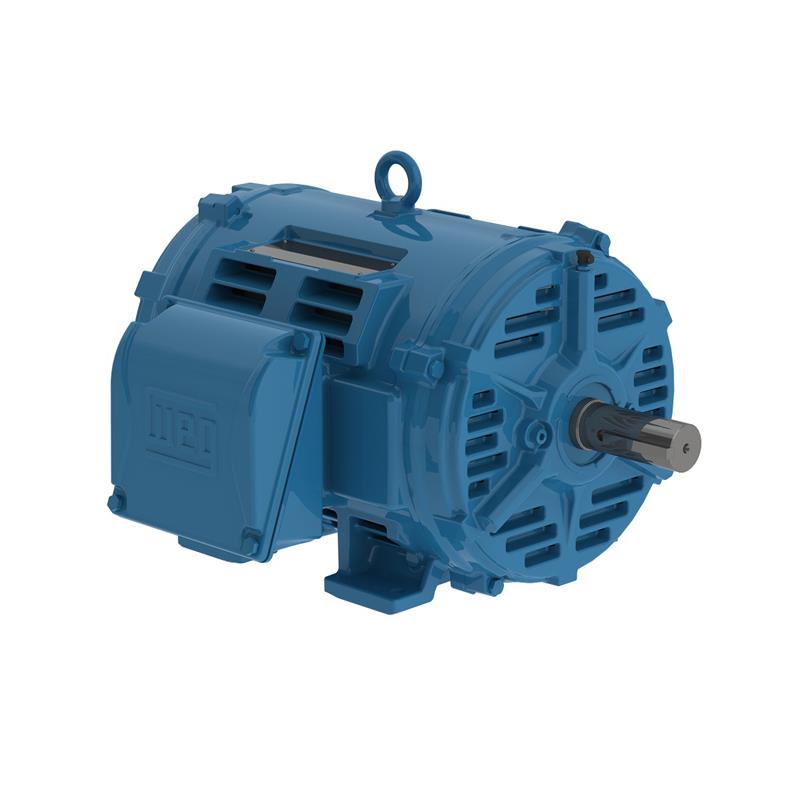

04018OT3E324T-W40G WEG Motor (40 HP, 1800 RPM, Three Phase, 324T Frame, ODP Enclosure, 208-230/460 Voltage)

04018OT3E324T-W40G WEG Motor (40 HP, 1800 RPM, Three Phase, 324T Frame, ODP Enclosure, 208-230/460 Voltage)

[COUNT] shoppers are looking at this right now

04018OT3E324T-W40G

$3,110.55 USD
$3,495.00 USD $3,110.55 USD
Sale Sold out
Shipping calculated at checkout.

WEG 04018OT3E324T-W40G, Commercial HVAC Motors Series, 40 HP, 30 KW, 1800 RPM, Three Phase, 324T Frame, ODP Enclosure, Foot Mount Motor Mount, 208-230/460 Voltage
Applications
High Starting Torque makes these motors ideal for a wide range of applications.
Features
New ventilation system for improved thermal performance
Robust feet design suitable for tougher applications
Oversized diagonally split aluminum terminal box that exceeds IP55 requirements
Terminal box rotatable in 90 degrees increments for flexibility during installation
Color coded leads as standard for easy wiring
Bearing cap as standard on flanged motors, optional on non flanged
Suitable for VFD operation as per NEMA MG1 part 31.4.4.2
Motor frame painting system 500 hours salt spray resistant

Specifications

Brand
WEG
Catalog Number
04018OT3E324T-W40G
Type
Air Handling Motor
Series
Commercial HVAC Motors
HP
40
KW
30
RPM
1800
Phase
Three
C-Dimentions
26.181
Service Factor
1.15
Frame
324T
Enclosure
ODP
Full Load Amps
48.2
Motor Mount
Foot Mount
Voltage
208-230/460
Warranty
1 Year
