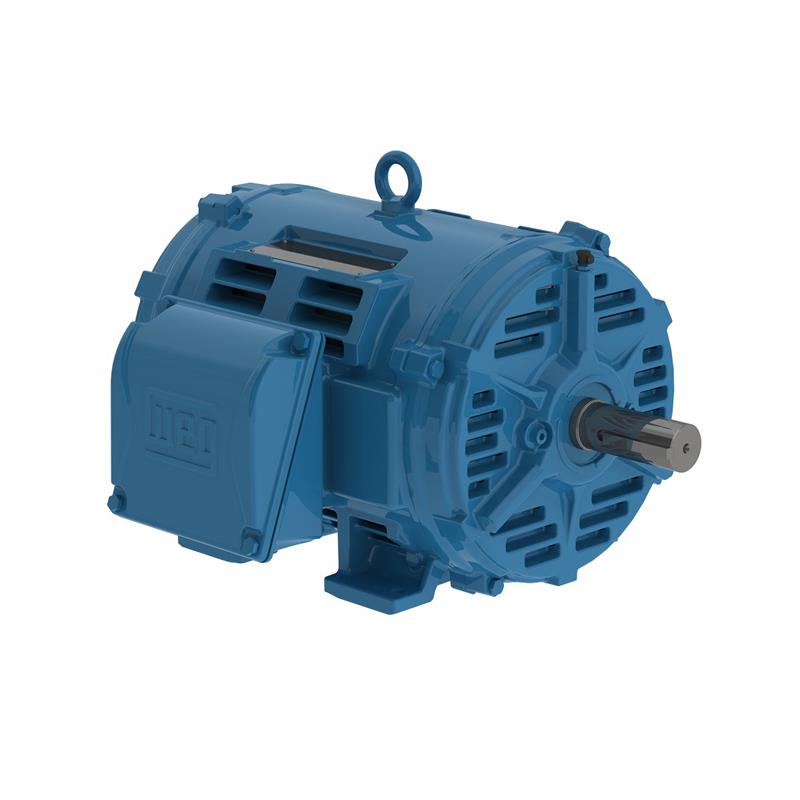

04012OT3E364T-W40 WEG Motor (40 HP, 364/5T FRAME, 208-230/460 V, THREE PHASE, ODP , 1185 RPM)

04012OT3E364T-W40 WEG Motor (40 HP, 364/5T FRAME, 208-230/460 V, THREE PHASE, ODP , 1185 RPM)

👁️ [COUNT] People are currently viewing this product.

04012OT3E364T-W40

$4,934.16 USD
$5,544.00 USD $4,934.16 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

WEG Motor 04012OT3E364T, 40 HP, RPM: 1185, FRAME: 364/5T, 208-230/460 V, THREE PHASE: 60 Hz, : ODP, WEG General Purpose Motor

Applications
Pumps, fans, crushers, conveyors, machine tools, milling applications, centrifugal machines, presses, elevators, looms, grinders, woodworking, cooling, packaging equipment, other Severe Duty applications
Features
General Purpose Motor, 3-Phase, Rolled Steel or Cast Iron, NEMA Premium, ODP

Tech Specs

Brand
WEG Motors
Model Number
04012OT3E364T
HP
40 HP
RPM
1185
FRAME
364/5T
VOLTAGE
208-230/460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
ODP
APPROXIMATE WEIGHT (lb)
739
FEET
YES
TERMINAL BOX
LEFT
FLANGE
-
RATED CURRENT
107-96.4/48.2 A
LOCKED ROTOR CURRENT IL IN
8
LOCKED ROTOR CURRENT
771/386 A
LOCKED ROTOR TORQUE
2.6
BREAKDOWN TORQUE
3
EFFICIENCY 50
93
EFFICIENCY 75
93.6
EFFICIENCY 100
94.1
POWER FACTOR 50
0.66
POWER FACTOR 75
0.77
POWER FACTOR 100
0.83
SERVICE FACTOR
1.15
INERTIA KGM2
0.98843 kgm
INERTIA SQ FT
23.455 sq.ft.
LOCKED ROTOR TIME
24 s
NOISE LEVEL
67 dB(A)
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP23
NO-LOAD CURRENT
44.0/22.0 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
237 Nm
FULL LOAD TORQUE FT
175 .ft
SLIP
0.0125
DESIGN
B
TEMPERATURE RISE
80 K
BEARINGS D E
6314 C3
BEARINGS N D E
6314 C3
REGREASING INTERVAL D E
20000 h
REGREASING INTERVAL N D E
20000 h
GREASE AMOUNT D E
27 g
GREASE AMOUNT N D E
27 g
