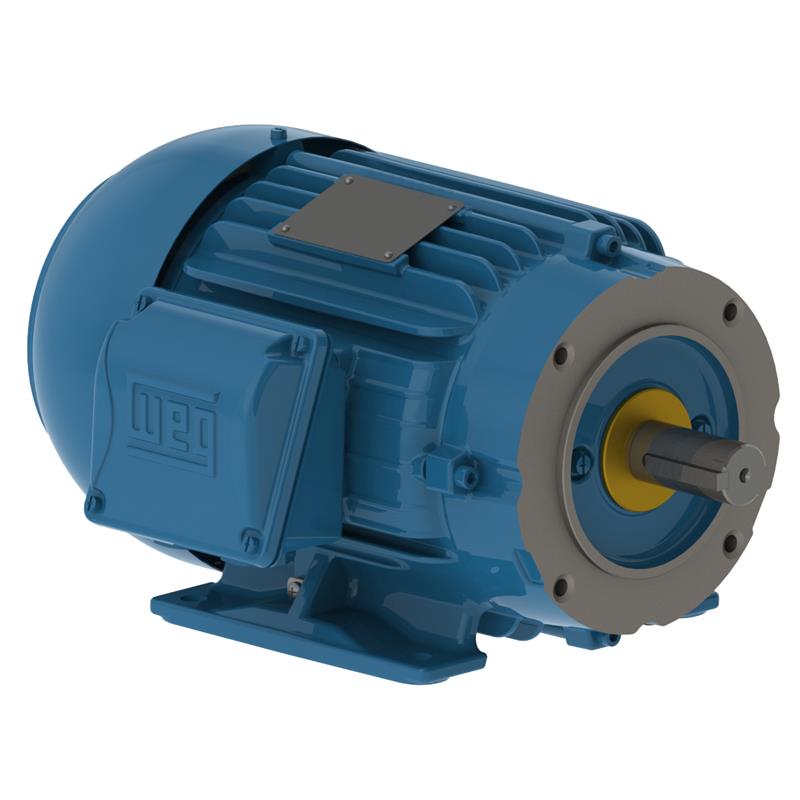

04009ST3QIE365TC-W22 WEG Motor (40 HP, 364/5T FRAME, 460 V, THREE PHASE, TEFC , 880 RPM)

04009ST3QIE365TC-W22 WEG Motor (40 HP, 364/5T FRAME, 460 V, THREE PHASE, TEFC , 880 RPM)

SKU:04009ST3QIE365TC-W22

Regular price $11,138.21 USD
Regular price Sale price $11,138.21 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 04009ST3QIE365TC-W22, 40 HP, RPM: 880, FRAME: 364/5T, 460 V, THREE PHASE: 60 Hz, : TEFC, WEG Motor

Applications
Pumping applications, Pulp and paper mills, ical, Other
Features
IEEE 841 Motors, 3-Phase, Cast Iron, NEMA Premium, TEFC

Tech Specs

Brand
WEG Motors
Model Number
04009ST3QIE365TC-W22
HP
40 HP
RPM
880
FRAME
364/5T
VOLTAGE
460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT LB
875
FEET
YES
TERMINAL BOX
LEFT
FLANGE
FC-279
RATED CURRENT
50.0 A
LOCKED ROTOR CURRENT IL IN
6
LOCKED ROTOR CURRENT
300 A
LOCKED ROTOR TORQUE
1.7
BREAKDOWN TORQUE
2.3
EFFICIENCY 50
92.4
EFFICIENCY 75
93
EFFICIENCY 100
92.4
POWER FACTOR 50
0.66
POWER FACTOR 75
0.76
POWER FACTOR 100
0.81
SERVICE FACTOR
1.25
INERTIA KGM2
1.2238 kgm
INERTIA SQ FT LB
29.040 sq.ft.
LOCKED ROTOR TIME
18 s
NOISE LEVEL
60 dB(A)
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
22.0 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
319 Nm
FULL LOAD TORQUE LB FT
235 .ft
SLIP
0.0222
DESIGN
B
TEMPERATURE RISE
80 K
BEARINGS D E
6314 C3
BEARINGS N D E
6314 C3
REGREASING INTERVAL D E
20000 h
REGREASING INTERVAL N D E
20000 h
GREASE AMOUNT D E
27 g
GREASE AMOUNT N D E
27 g
-
-
