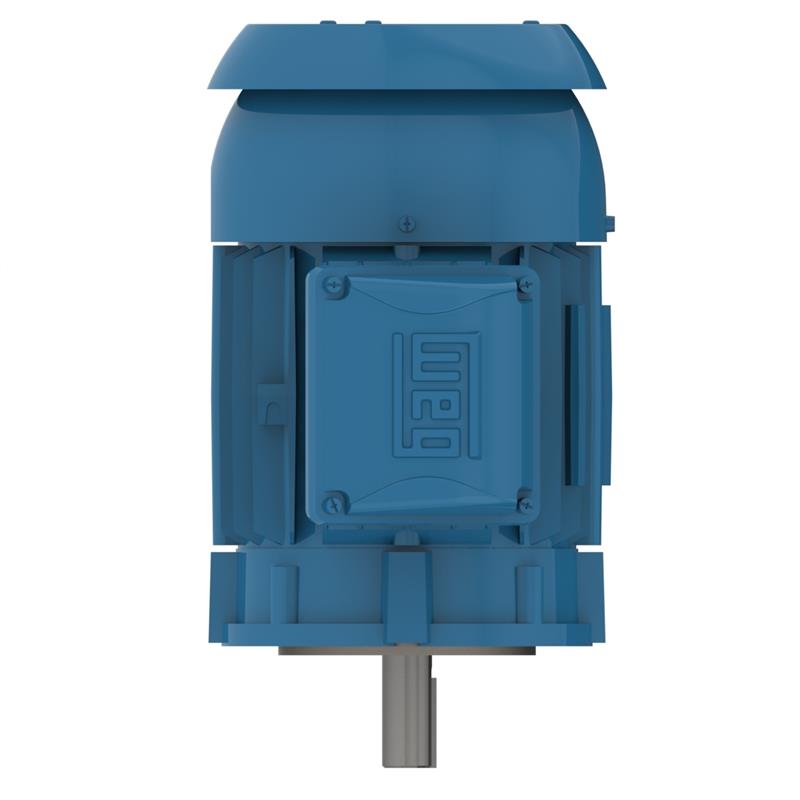

03036ET3ER286TSC-W22 WEG Motor (30 HP, 3600 RPM, 3 Phase, 60Hz, 286TSC Frame, 230/460V, TEFC, Footless)

03036ET3ER286TSC-W22 WEG Motor (30 HP, 3600 RPM, 3 Phase, 60Hz, 286TSC Frame, 230/460V, TEFC, Footless)

[COUNT] shoppers are looking at this right now

03036ET3ER286TSC-W22

$3,352.63 USD
$3,767.00 USD $3,352.63 USD
Sale Sold out
Shipping calculated at checkout.

WEG 03036ET3ER286TSC-W22, 30 HP, 3600 RPM, 3 Phase, 60Hz, 286TSC Frame, 230/460V, TEFC, Footless

Applications
General Purpose Motor
Features
F1 mounted (cast iron frames are F2 convertible). Frames 447T and up can easily be F2 converted by simply rotating the terminal box adapter.
Class F insulation
Efficiency levels: High Efficiency (EPAct) and NEMA Premium
IP55 standard, IP56 optional
F1 mount as standard
Aluminum endshields
Cast Iron flanges for improved strength (182/4TC and larger)
Internal bolts, giving a clean surface to the motor, avoiding trapping materials and allowing easy paint job after assembly to the load if required
Double shielded ball bearings on frames 56 to 213/5T. Optional double sealed ball bearings and/or bearing cap

Specifications

Brand
WEG
Catalog Number
03036ET3ER286TSC-W22
Type
General Purpose Motor
HP
30
RPM
3600
Phase
3
Frequency
60Hz
Frame
286TSC
Voltage
230/460
Enclosure
TEFC
Mounting
Footless
FL Efficiency
91.7
FL Amps
33.8
Construction
Cast Iron
Service Factor
1.25
"C" Dimensions
28.801
Drive End Flange Type
C-Face
Warranty
1 Year
