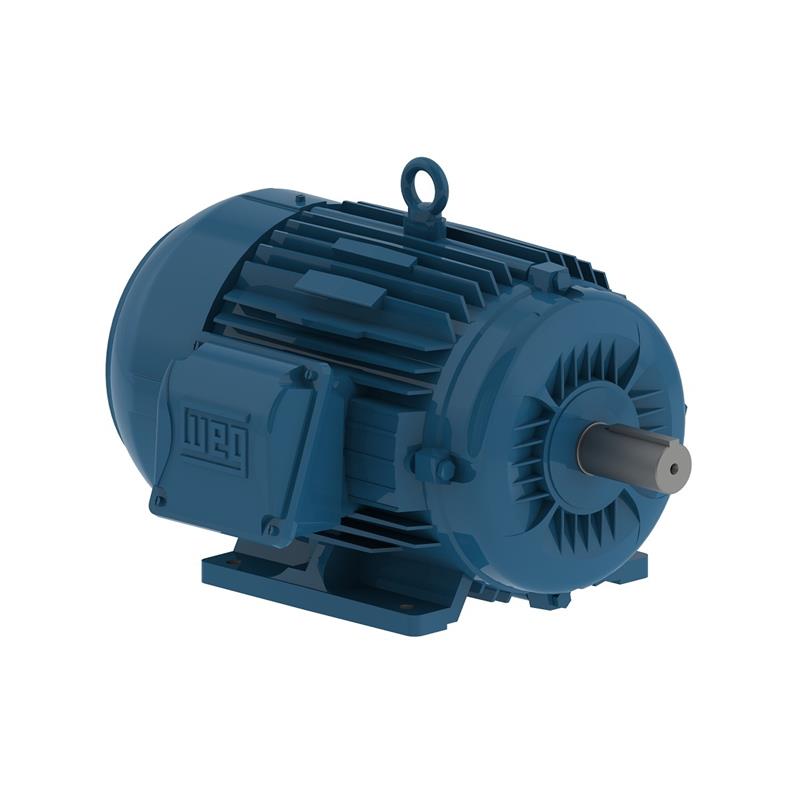

03036ET3E286TS-W22 WEG Motor (30 HP, 286TS FRAME, 460 V, THREE PHASE, TEFC , 3535 RPM)

03036ET3E286TS-W22 WEG Motor (30 HP, 286TS FRAME, 460 V, THREE PHASE, TEFC , 3535 RPM)

👁️ [COUNT] People are currently viewing this product.

03036ET3E286TS-W22

$3,169.29 USD
$3,561.00 USD $3,169.29 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

WEG Motor 03036ET3E286TS-W22, 30 HP, RPM: 3535, FRAME: 286TS, 460 V, THREE PHASE: 60 Hz, : TEFC, WEG General Purpose Motor

Applications
Chemical plants, Compressors, Pulp and paper mills, Crushers, Refineries, Pumps, Steel mills, Fans, Cement mills, Packaging equipment
Features
WEG General Purpose Motors, 3-Phase, Cast Iron, NEMA Premium, TEFC

Tech Specs

Brand
WEG Motors
Model Number
03036ET3E286TS-W22
HP
30 HP
RPM
3535
FRAME
286TS
VOLTAGE
460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
392
FEET
YES
TERMINAL BOX
LEFT
FLANGE
-
RATED CURRENT
33.8 A
LOCKED ROTOR CURRENT IL IN
6.3
LOCKED ROTOR CURRENT
213 A
LOCKED ROTOR TORQUE
2
BREAKDOWN TORQUE
2.5
EFFICIENCY 50
91.7
EFFICIENCY 75
91.7
EFFICIENCY 100
91.7
POWER FACTOR 50
0.82
POWER FACTOR 75
0.87
POWER FACTOR 100
0.89
SERVICE FACTOR
1.25
INERTIA KGM2
0.14189 kgm
INERTIA SQ FT LB
3.3671 sq.ft.
LOCKED ROTOR TIME
15 s
NOISE LEVEL
72 dB(A)
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
8.50 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
59.6 Nm
FULL LOAD TORQUE LB FT
44.0 .ft
SLIP
0.0181
DESIGN
B
TEMPERATURE RISE
80 K
BEARINGS D E
6311 C3
BEARINGS N D E
6211 C3
REGREASING INTERVAL D E
14000 h
REGREASING INTERVAL N D E
17000 h
GREASE AMOUNT D E
18 g
GREASE AMOUNT N D E
11 g
