WEG

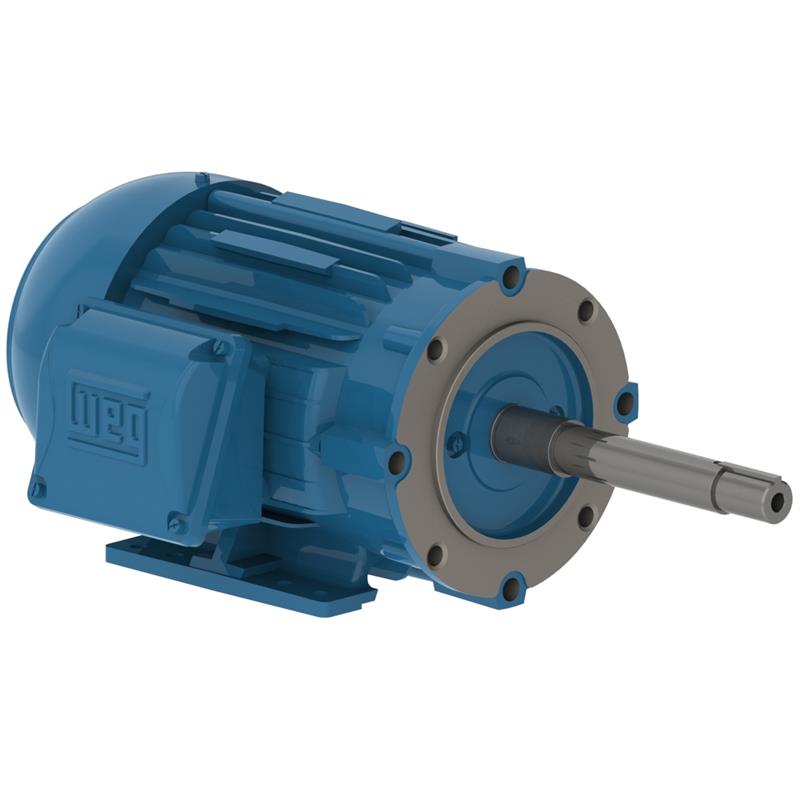

03018ET3E286JP-W22 WEG Motor, Close Coupled Pump (30 HP, 286JP FRAME, 460 V, THREE PHASE, TEFC , 1765 RPM)

03018ET3E286JP-W22 WEG Motor, Close Coupled Pump (30 HP, 286JP FRAME, 460 V, THREE PHASE, TEFC , 1765 RPM)

03018ET3E286JP-W22

$3,036.70 USD
$3,036.70 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 03018ET3E286JP-W22, 30 HP, RPM: 1765, FRAME: 286JP, 460 V, THREE PHASE: 60 Hz, : TEFC, WEG Close Coupled Pump Motor

Applications
Specially developed line for industrial and commercial pumping applications, such as Water pumping, Process, and Transfer and circulating pumps
Features
Close Coupled Pump Motors, 3-Phase, Cast Iron, NEMA Premium, TEFC, JM & JP

Tech Specs

Brand
WEG Motors
Model Number
03018ET3E286JP-W22
HP
30 HP
RPM
1765
FRAME
286JP
VOLTAGE
460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
437
FEET
YES
TERMINAL BOX
LEFT
FLANGE
FC-279
RATED CURRENT
35.1 A
LOCKED ROTOR CURRENT IL IN
6.4
LOCKED ROTOR CURRENT
225 A
LOCKED ROTOR TORQUE
2.4
BREAKDOWN TORQUE
2.7
EFFICIENCY 50
93
EFFICIENCY 75
93
EFFICIENCY 100
93.6
POWER FACTOR 50
0.7
POWER FACTOR 75
0.8
POWER FACTOR 100
0.84
SERVICE FACTOR
1.25
INERTIA KGM2
0.24666 kgm
INERTIA SQ FT LB
5.8532 sq.ft.
LOCKED ROTOR TIME
20 s
NOISE LEVEL
64 dB(A)
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
14.0 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
119 Nm
FULL LOAD TORQUE LB FT
88.1 .ft
SLIP
0.0194
DESIGN
B
TEMPERATURE RISE
80 K
BEARINGS D E
6311 C3
BEARINGS N D E
6211 C3
REGREASING INTERVAL D E
20000 h
REGREASING INTERVAL N D E
20000 h
GREASE AMOUNT D E
18 g
GREASE AMOUNT N D E
11 g
