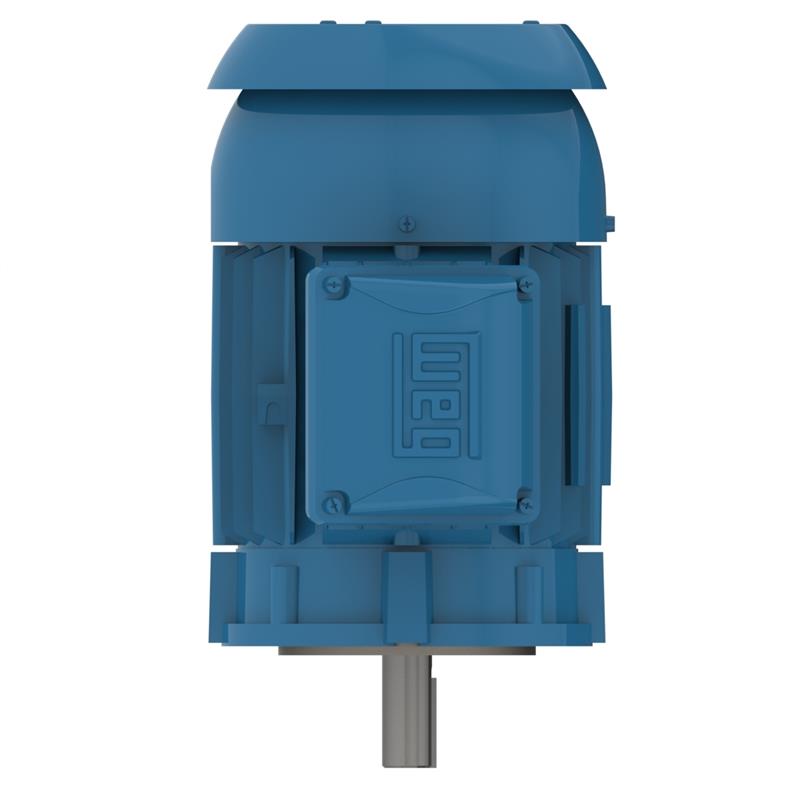

03012ET3ER326TSC-W22 WEG Motor (30 HP, 1200 RPM, 3 Phase, 60Hz, 326TSC Frame, 230/460V, TEFC, Footless)

03012ET3ER326TSC-W22 WEG Motor (30 HP, 1200 RPM, 3 Phase, 60Hz, 326TSC Frame, 230/460V, TEFC, Footless)

[COUNT] shoppers are looking at this right now

03012ET3ER326TSC-W22

$5,133.52 USD
$5,768.00 USD $5,133.52 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

WEG 03012ET3ER326TSC-W22, 30 HP, 1200 RPM, 3 Phase, 60Hz, 326TSC Frame, 230/460V, TEFC, Footless

Applications
General Purpose Motor
Features
F1 mounted (cast iron frames are F2 convertible). Frames 447T and up can easily be F2 converted by simply rotating the terminal box adapter.
Class F insulation
Efficiency levels: High Efficiency (EPAct) and NEMA Premium
IP55 standard, IP56 optional
F1 mount as standard
Aluminum endshields
Cast Iron flanges for improved strength (182/4TC and larger)
Internal bolts, giving a clean surface to the motor, avoiding trapping materials and allowing easy paint job after assembly to the load if required
Double shielded ball bearings on frames 56 to 213/5T. Optional double sealed ball bearings and/or bearing cap

Specifications

Brand
WEG
Catalog Number
03012ET3ER326TSC-W22
Type
General Purpose Motor
HP
30
RPM
1200
Phase
3
Frequency
60Hz
Frame
326TSC
Voltage
230/460
Enclosure
TEFC
Mounting
Footless
FL Efficiency
93
FL Amps
36.2
Construction
Cast Iron
Service Factor
1.25
"C" Dimensions
32.254
Drive End Flange Type
C-Face
Warranty
1 Year
