02SH06E7HD3F2 Goulds Centrifugal Pump e-SH S-Group Series (7-1/2 HP, 230/460 Volts, 3 Phase, 3500 RPM, 2" Discharge, 2-1/2" Suction, 5.12" Impeller, DPPE Enclosure, 340 GPM Max, 102 ft Max Head)

02SH06E7HD3F2 Goulds Centrifugal Pump e-SH S-Group Series (7-1/2 HP, 230/460 Volts, 3 Phase, 3500 RPM, 2" Discharge, 2-1/2" Suction, 5.12" Impeller, DPPE Enclosure, 340 GPM Max, 102 ft Max Head)

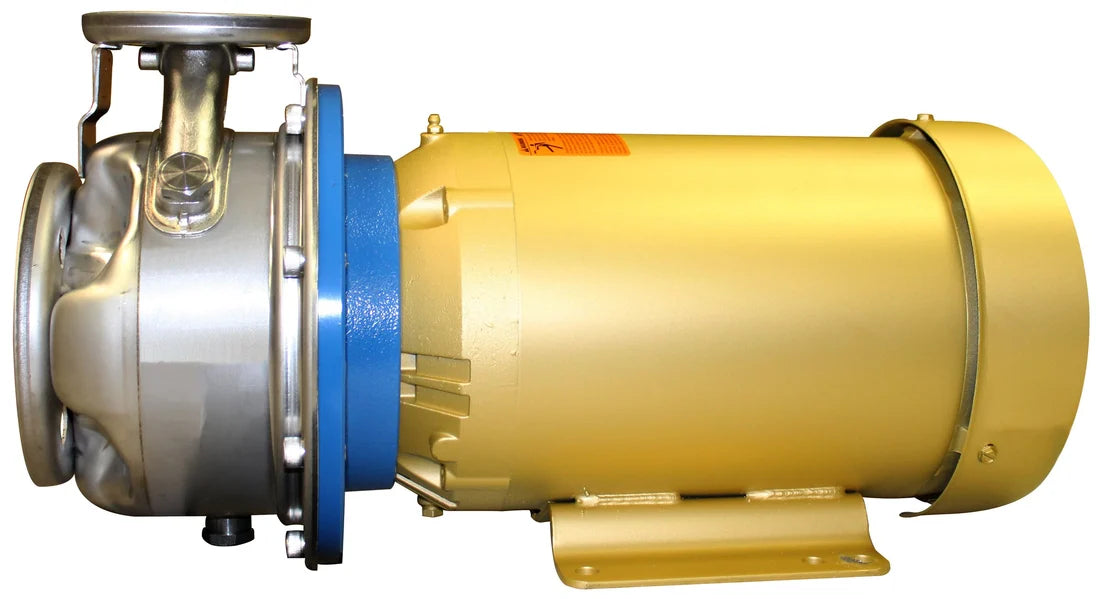

The e-SH is a high performance stainless steel centrifugal end-suction pump suitable for handling water as well as non-aggressive or moderately aggressive fluids. The pump is equipped with interchangeable John Crane Type 21 mechanical seal, NEMA motor, and have a back pull-out design which means that impeller, bracket and motor can be extracted without disconnecting the pump body from the piping.

Features

• Compact design that saves space and simplifies maintenance
• Suction and discharge flanges mate with ANSI class 150 flanges
• Enclosed impeller and replaceable wear ring for high efficiency and maximum wear life

Applications

The e-SH is suitable for a wide range of non-aggressive to mildly aggressive fluids in commercial building, industrial & diverse OEM applications.

• Water intake
• Water transfer and circulation
• Pressure boosting
• Process cooling and heating
• Fluid transfer and transport
• Produced water transfer and boosting
• Boiler feed booster

Pumped Fluids

• Groundwater
• Potable water
• Process water
• Gray/used water
• Heat transfer fluids
• Produced water
