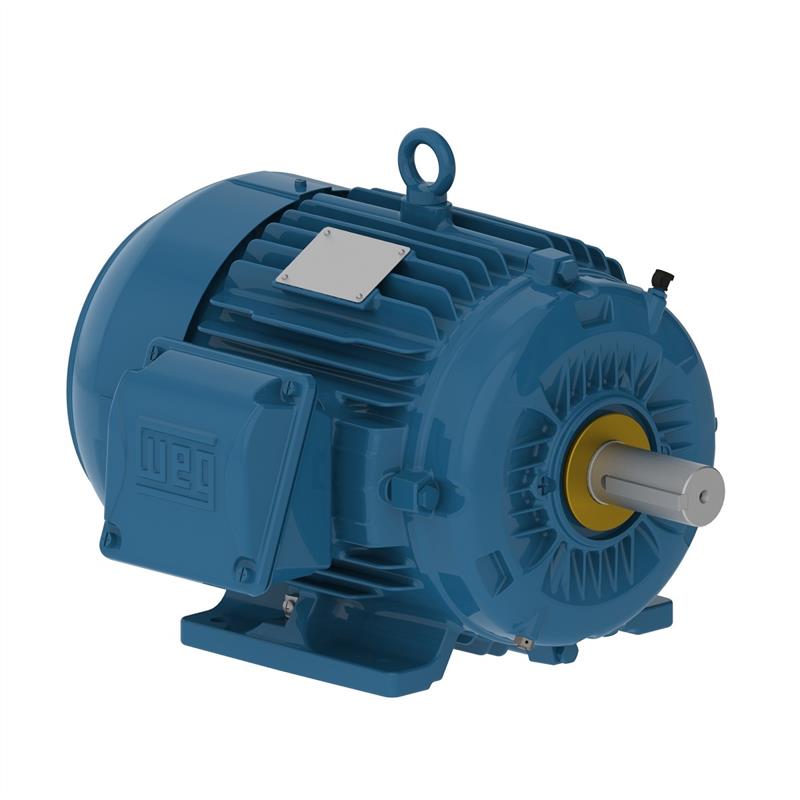

02036ST3HIE256T-W22 WEG Motor (20 HP, 256T FRAME, 575 V, THREE PHASE, TEFC , 3520 RPM)

02036ST3HIE256T-W22 WEG Motor (20 HP, 256T FRAME, 575 V, THREE PHASE, TEFC , 3520 RPM)

👁️ [COUNT] People are currently viewing this product.

02036ST3HIE256T-W22

$2,631.73 USD
$2,957.00 USD $2,631.73 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

WEG Motor 02036ST3HIE256T-W22, 20 HP, RPM: 3520, FRAME: 256T, 575 V, THREE PHASE: 60 Hz, : TEFC, WEG Motor

Applications
Pumping applications, Pulp and paper mills, ical, Other
Features
IEEE 841 Motors, 3-Phase, Cast Iron, NEMA Premium, TEFC

Tech Specs

Brand
WEG Motors
Model Number
02036ST3HIE256T-W22
HP
20 HP
RPM
3520
FRAME
256T
VOLTAGE
575 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT LB
269
FEET
YES
TERMINAL BOX
LEFT
FLANGE
-
RATED CURRENT
18.6 A
LOCKED ROTOR CURRENT IL IN
6
LOCKED ROTOR CURRENT
111 A
LOCKED ROTOR TORQUE
2
BREAKDOWN TORQUE
2.4
EFFICIENCY 50
91
EFFICIENCY 75
91.7
EFFICIENCY 100
91
POWER FACTOR 50
0.82
POWER FACTOR 75
0.87
POWER FACTOR 100
0.89
SERVICE FACTOR
1.25
INERTIA KGM2
0.06471 kgm
INERTIA SQ FT LB
1.5356 sq.ft.
LOCKED ROTOR TIME
21 s
NOISE LEVEL
72 dB(A)
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
5.20 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
39.9 Nm
FULL LOAD TORQUE LB FT
29.4 .ft
SLIP
0.0222
DESIGN
B
TEMPERATURE RISE
80 K
BEARINGS D E
6309 C3
BEARINGS N D E
6209 C3
REGREASING INTERVAL D E
19000 h
REGREASING INTERVAL N D E
20000 h
GREASE AMOUNT D E
13 g
GREASE AMOUNT N D E
9 g
-
-
