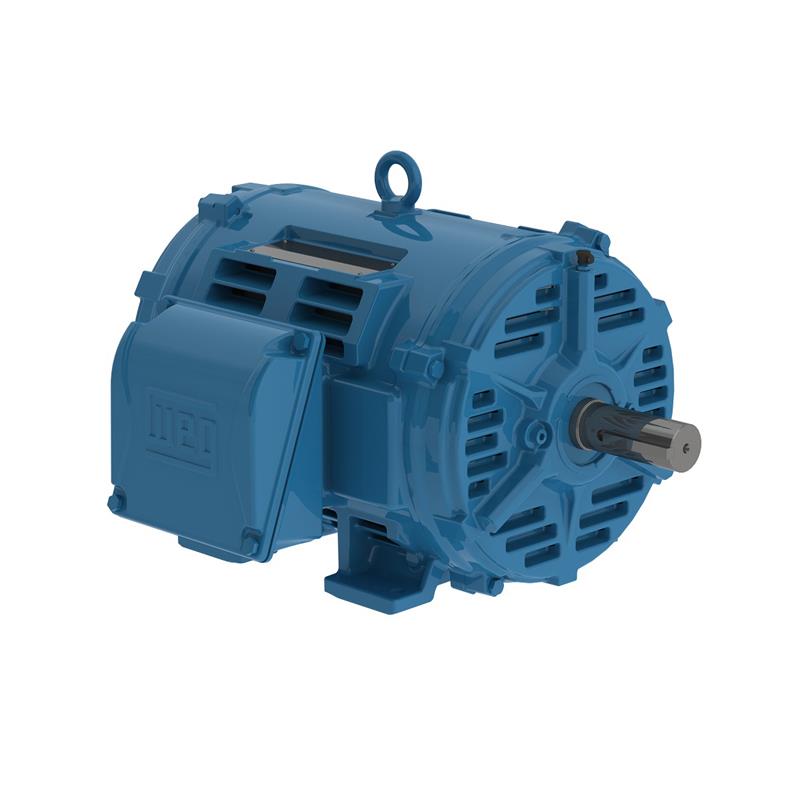

02036OT3H254T-W40 WEG Motor (20 HP, 254T FRAME, 575 V, THREE PHASE, ODP , 3520 RPM)

02036OT3H254T-W40 WEG Motor (20 HP, 254T FRAME, 575 V, THREE PHASE, ODP , 3520 RPM)

02036OT3H254T-W40

$1,282.60 USD
$1,282.60 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor 02036OT3H254T, 20 HP, RPM: 3520, FRAME: 254T, 575 V, THREE PHASE: 60 Hz, : ODP, WEG General Purpose Motor

Applications
Pumps, fans, crushers, conveyors, machine tools, milling applications, centrifugal machines, presses, elevators, looms, grinders, woodworking, cooling, packaging equipment, other Severe Duty applications
Features
General Purpose Motor, 3-Phase, Rolled Steel or Cast Iron, NEMA Premium, ODP

Tech Specs

Brand
WEG Motors
Model Number
02036OT3H254T
HP
20 HP
RPM
3520
FRAME
254T
VOLTAGE
575 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
ODP
APPROXIMATE WEIGHT (lb)
203
FEET
YES
TERMINAL BOX
LEFT
FLANGE
-
RATED CURRENT
19.7 A
LOCKED ROTOR CURRENT IL IN
6
LOCKED ROTOR CURRENT
118 A
LOCKED ROTOR TORQUE
1.9
BREAKDOWN TORQUE
2.5
EFFICIENCY 50
89.5
EFFICIENCY 75
90.2
EFFICIENCY 100
91
POWER FACTOR 50
0.71
POWER FACTOR 75
0.8
POWER FACTOR 100
0.84
SERVICE FACTOR
1.15
INERTIA KGM2
0.03088 kgm
INERTIA SQ FT
0.73278 sq.ft.
LOCKED ROTOR TIME
12 s
NOISE LEVEL
66 dB(A)
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP23
NO-LOAD CURRENT
7.60 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
39.9 Nm
FULL LOAD TORQUE FT
29.4 .ft
SLIP
0.0222
DESIGN
B
TEMPERATURE RISE
80 K
BEARINGS D E
6309 Z-C3
BEARINGS N D E
6209 Z-C3
REGREASING INTERVAL D E
20000 h
REGREASING INTERVAL N D E
20000 h
GREASE AMOUNT D E
13 g
GREASE AMOUNT N D E
9 g
