WEG

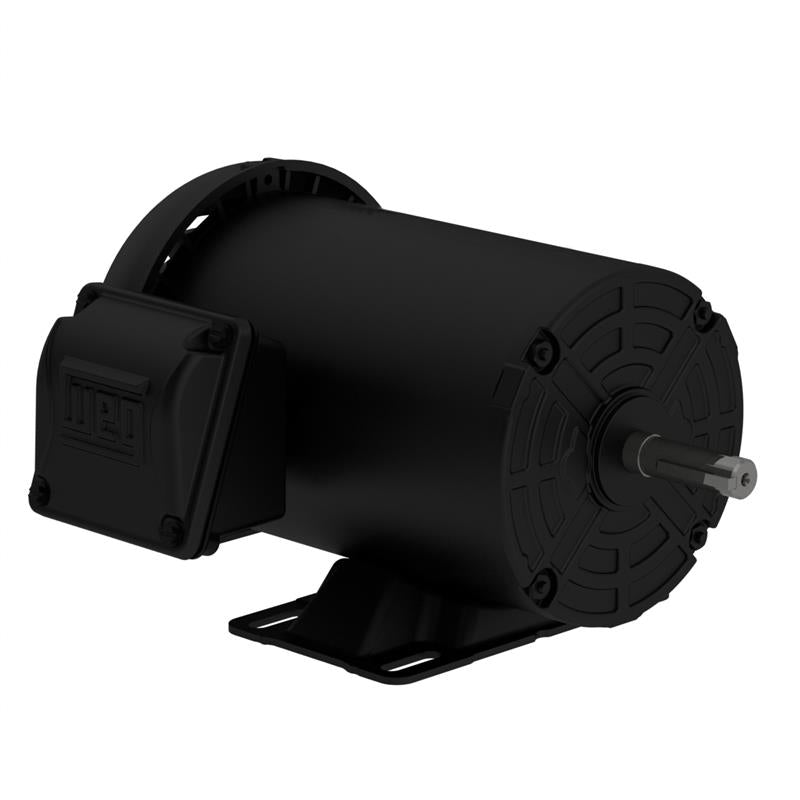

02036ET3H256T-S WEG Motor (20 HP, 3600 RPM, 3 Phase, 60 Hz, 254/6T Frame, TEFC, 575 V)

02036ET3H256T-S WEG Motor (20 HP, 3600 RPM, 3 Phase, 60 Hz, 254/6T Frame, TEFC, 575 V)

02036ET3H256T-S

$1,512.89 USD
$1,512.89 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG 02036ET3H256T-S, 20 HP, 3600 RPM, 3 Phase, 60 Hz, 254/6T Frame, Foot-mounted, TEFC, 575 V
Applications
General Application
Features
Rated Output: 0.25 to 25 HP
Number of Poles: 2 to 6
Class F insulation
Frame Sizes: NEMA 56 to 254/6T
Frequency: 60 Hz (dual rated 50 Hz 190-220/380-415V)
F1 mount as standard
Aluminum endshields
New ventilation system for improved thermal performance
Robust foot design suitable for tougher applications
IP55 Ingress protection as standard, being appropriate for severe environments
Terminal box rotatable in 90 degrees

Specifications

Brand
WEG
Catalog Number
02036ET3H256T-S
Type
General Purpose Motor
HP
20
RPM
3600
Phase
3
Hertz
60
Frame
254/6T
Mounting
Foot-mount
Enclosure
TEFC
Voltage
575
Full Load Amps
18.2
Full Load Efficiency
91
Frame Material
Rolled Steel
Service Factor
1.15
"C" Dimensions
23.346
Number of Poles
2-6
Motor Efficiency Group
NEMA Premium Efficient
Warranty
1 Year
